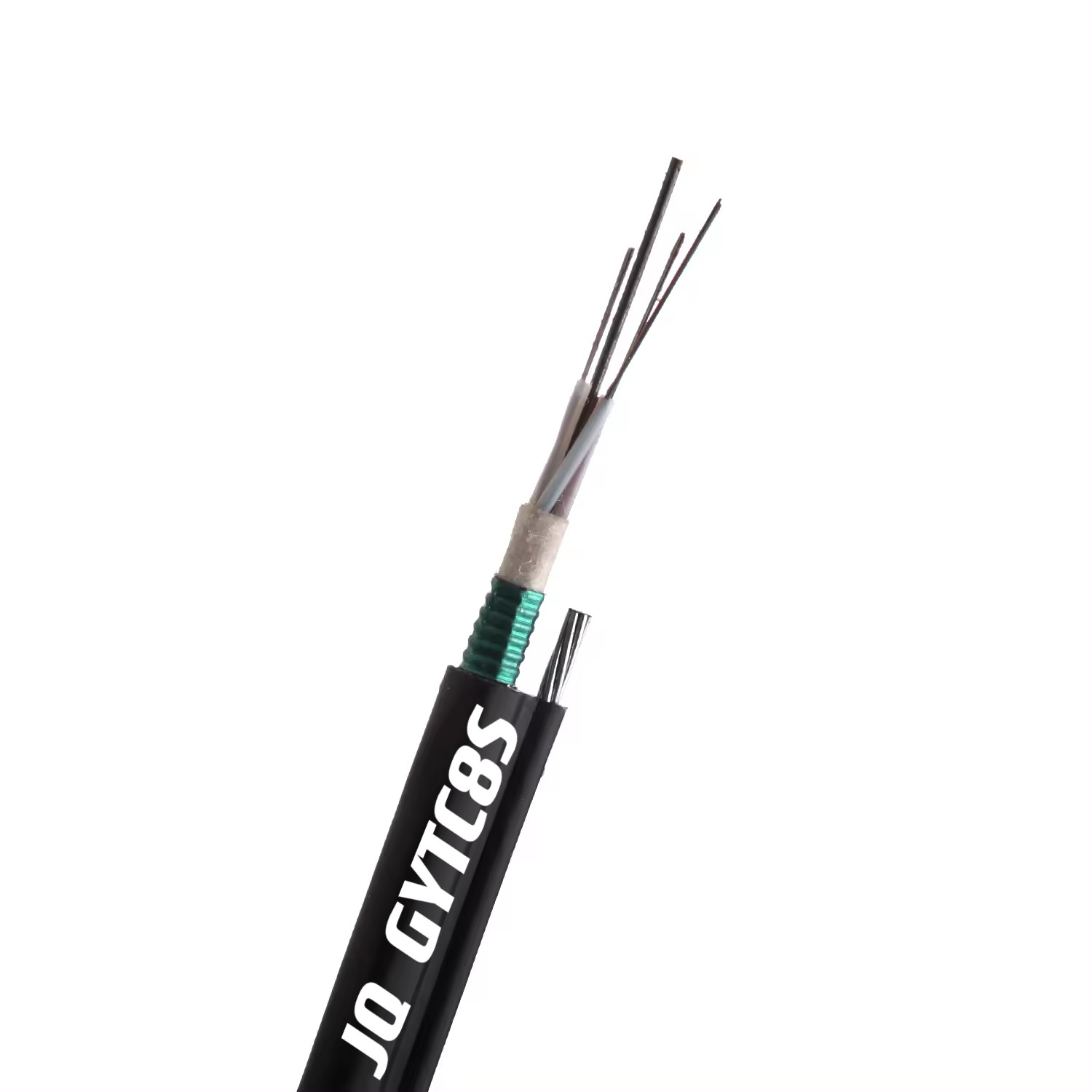

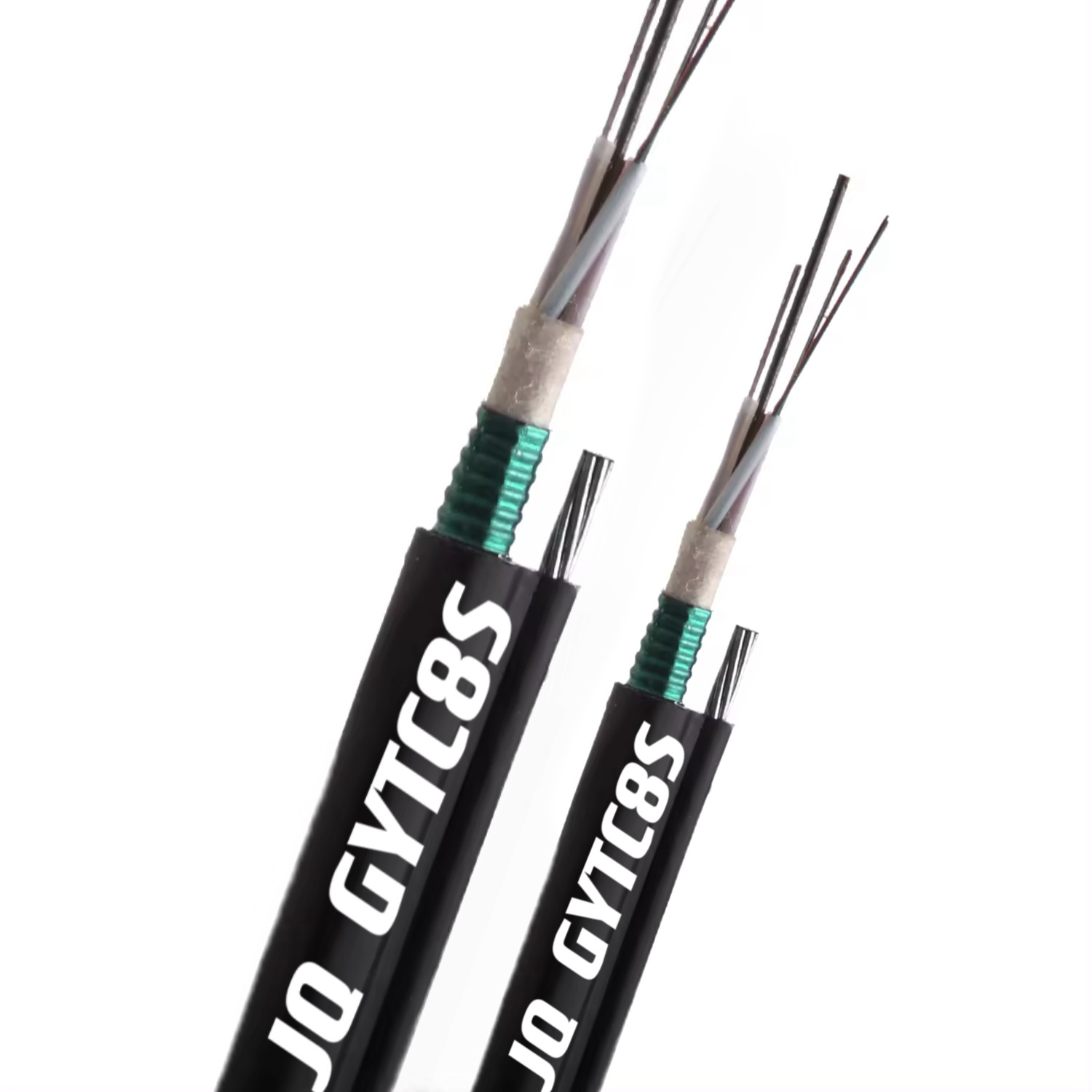

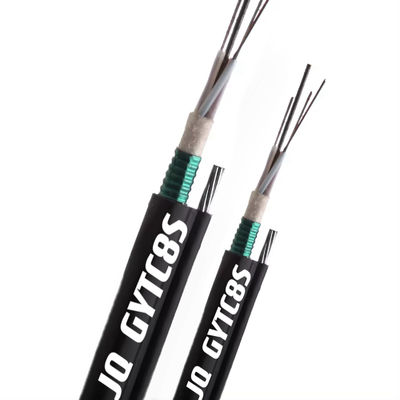

Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYTC8S |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Jacket: | PE,MDPE,LSZH,PVC |
| Package: | Wooden Drum/Customized | Application: | Aerial,Overhead |
| Oem: | Available | Central Strength Member: | Steel Wire |
| High Light: | Single Mode Outdoor Fiber Optic Cable,144 core Outdoor Fiber Optic Cable,Aerial Outdoor Fiber Optic Cable |
||
Product Description
Performance:
1.Max attenuation : 0.34dB @ 1310nm and 0.21dB/Km @1550nm
2.Fiber : G652D
3.Installation : self- supporting Aerial
4. Application : Apply to Long distance communication system, Local area network system
5. Lifetime : above 30 years
6. Operating temperature : -40℃~+70℃
7. Permisson bent radius Static : 10 times O.D.
8.Dynamic : 20 times O.D.
Features:

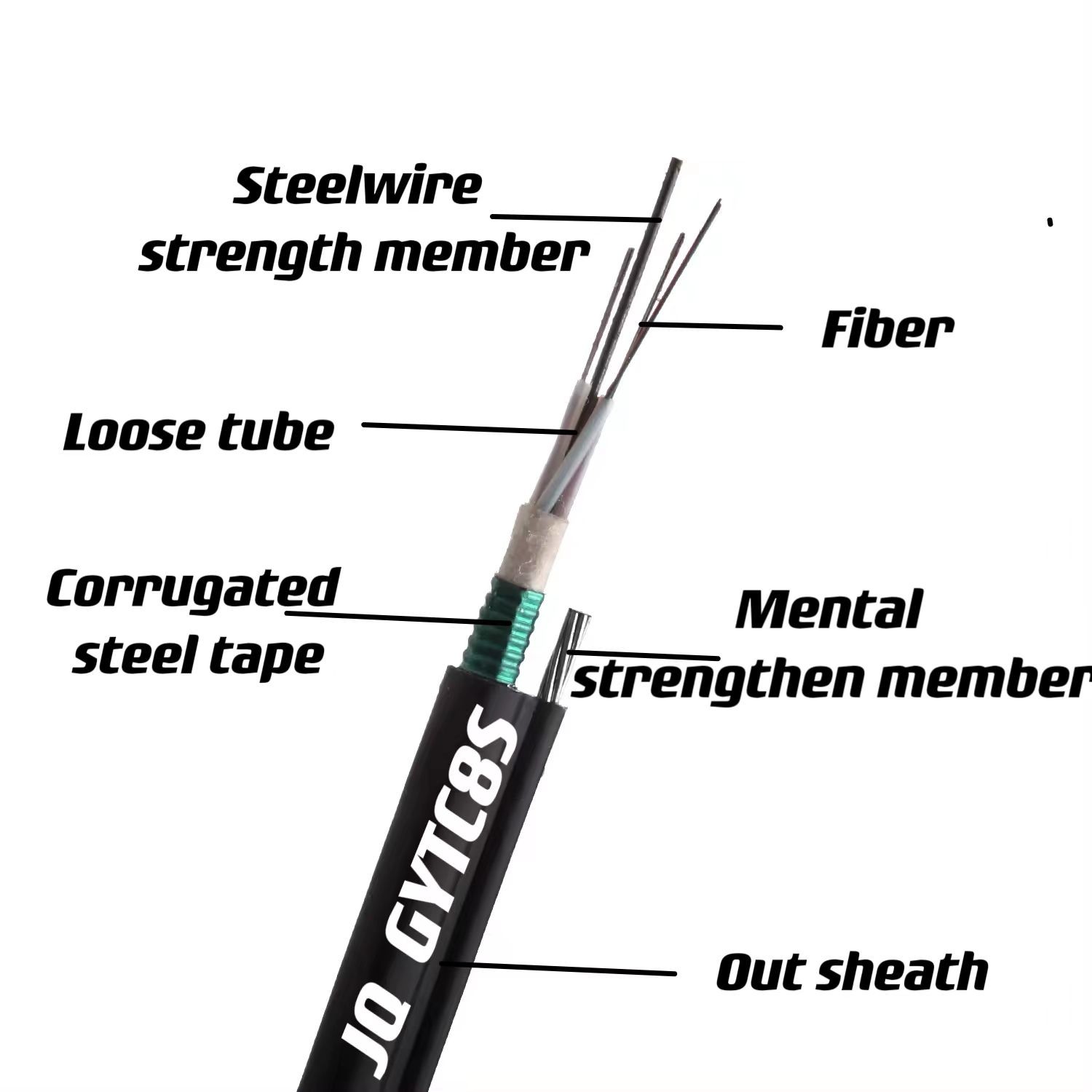

■ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cast.
■ Good mechanical and temperature performance High strength loose tube that is hydrolysis resistant.
■ Special tube lling compound ensure a critical protection.
■ The armoring of corrugated steel tape makes cable have nice moisture resistance and crush resistance performance.
■ Small cable diameter, light cable weight, self-supporting, easily to install.

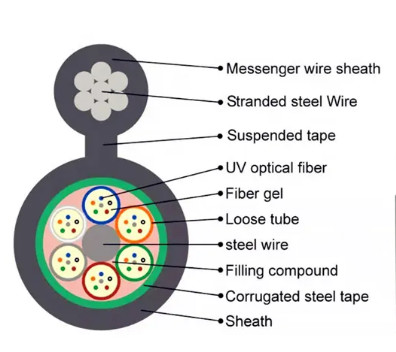

The following measures are taken to ensure the cable watertight:
-Steel wire used as the central strength member.
-Loose tube lling compound 100% cable core lling.
-APL moisture barrier.
Application:
■ Apply to Long distance communication system, Local area network system.
■ Suitable for outdoor distribution. ■ Suitable for aerial pipeline laying method.
Specification:
| item | value |
| Model Number | GYTC8S |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |

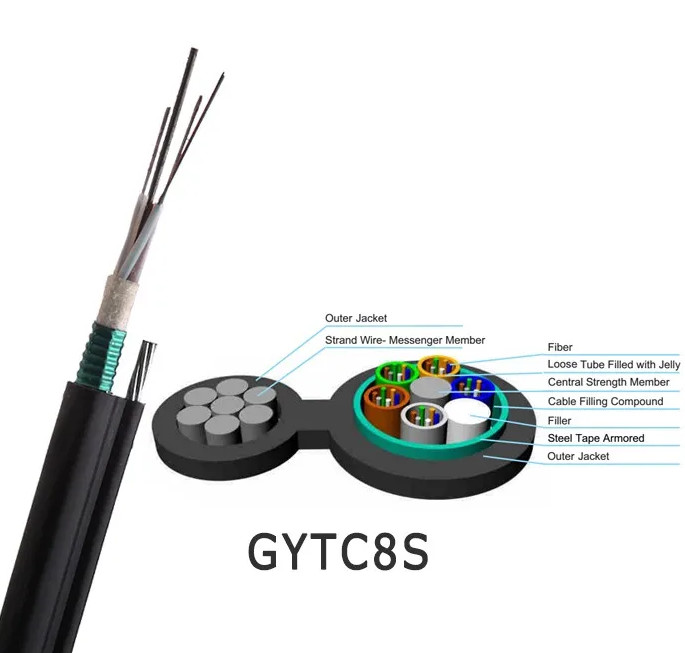

| Structure | multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
