Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYXTC8A |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Loose Tube: | PBT |
| Jacket: | PE,MDPE,LSZH,PVC | Armored: | Al Tape |
| Strength Member: | Steel Wire | Package: | Wooden Drum/Customized |
| Application: | Aerial,Overhead | Oem: | Available |
| Structure: | Uni-tube | ||
| High Light: | Aerial Outdoor Ftth Fiber Optic Cable,Fiber Optic Cable GYXTC8A |
||
Product Description
Product Description

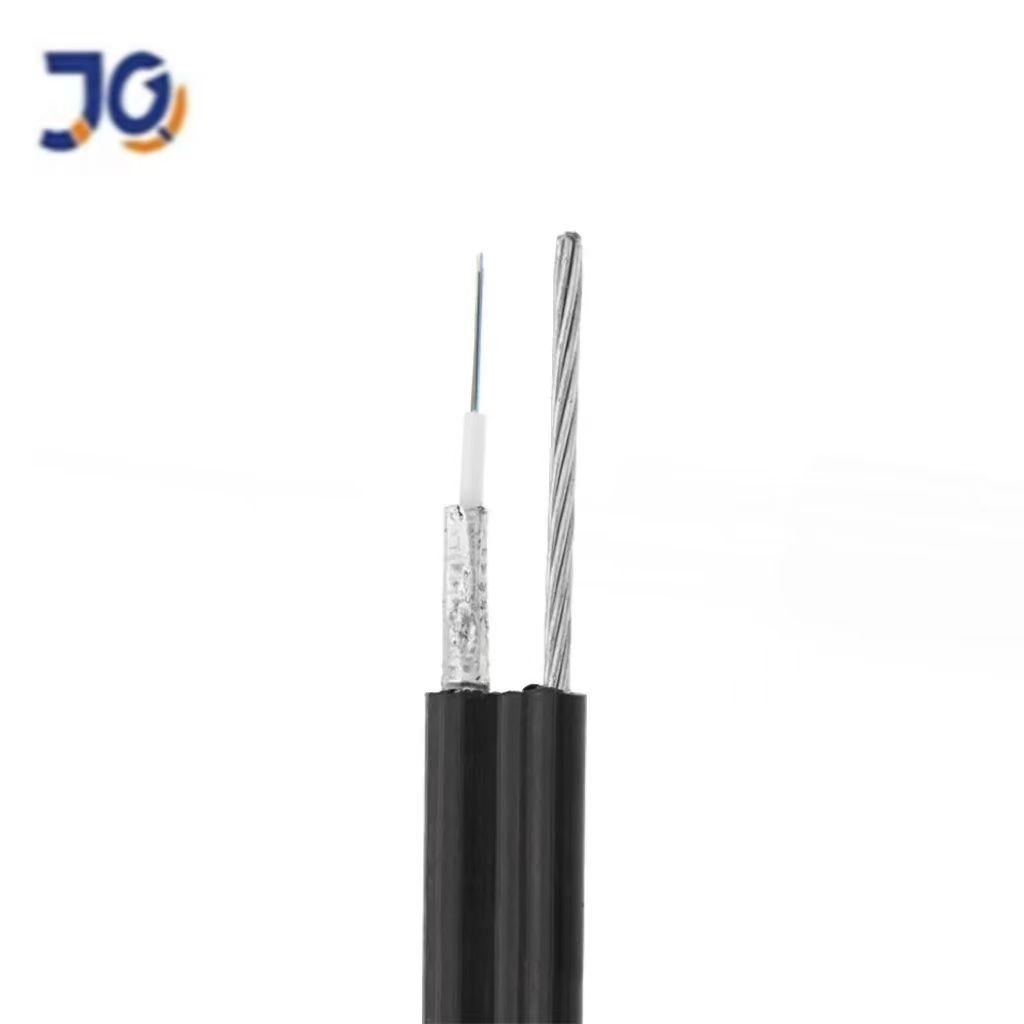

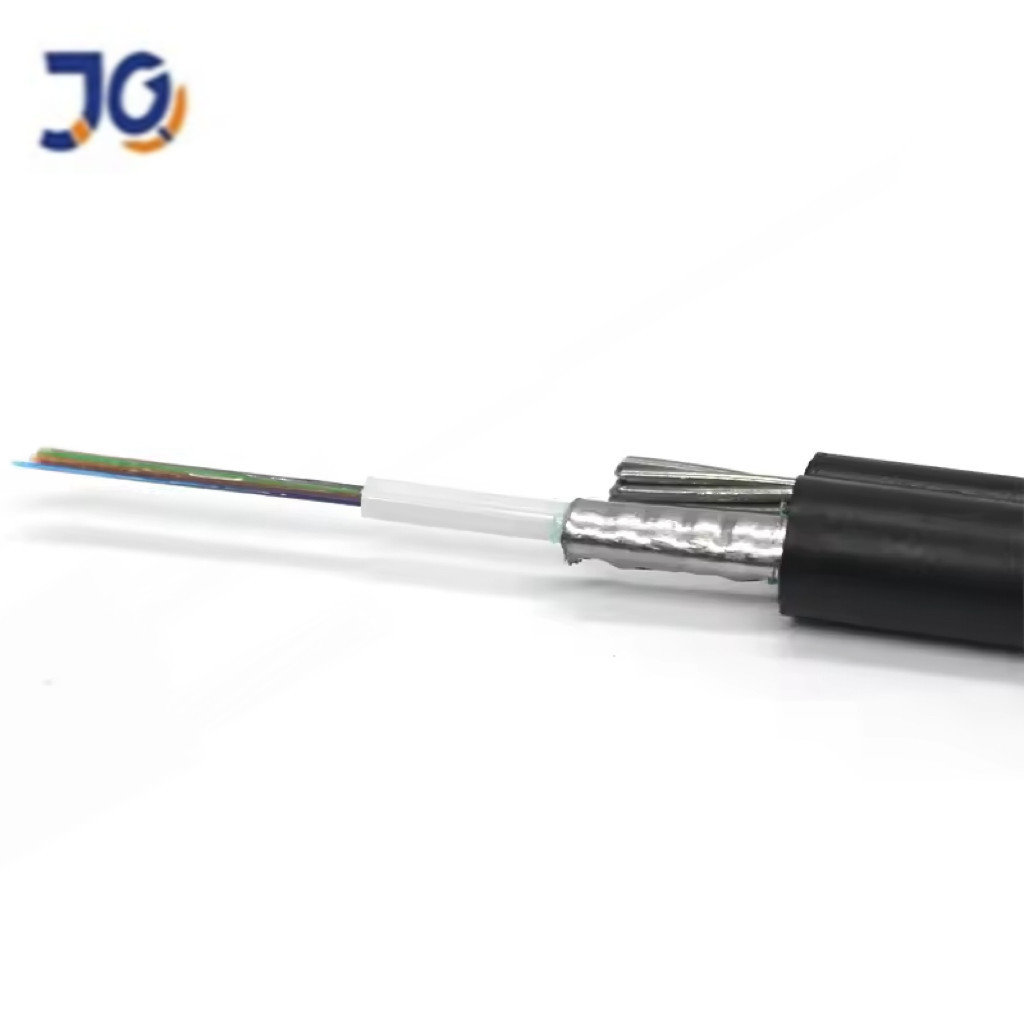

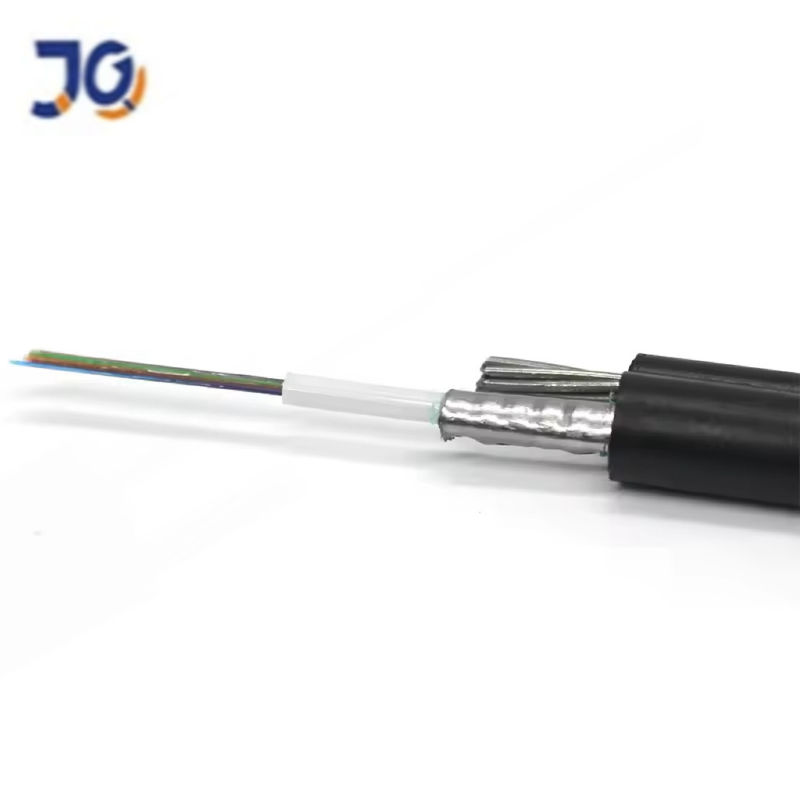

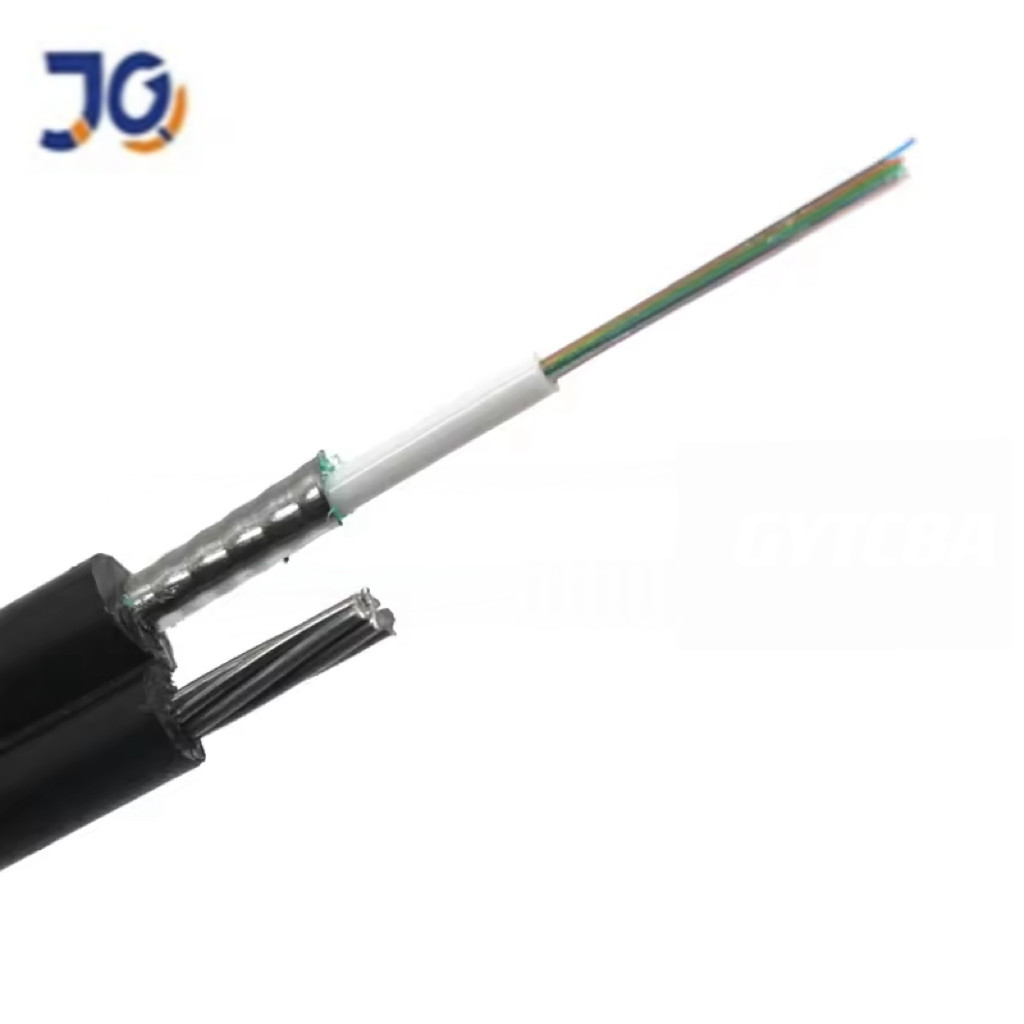

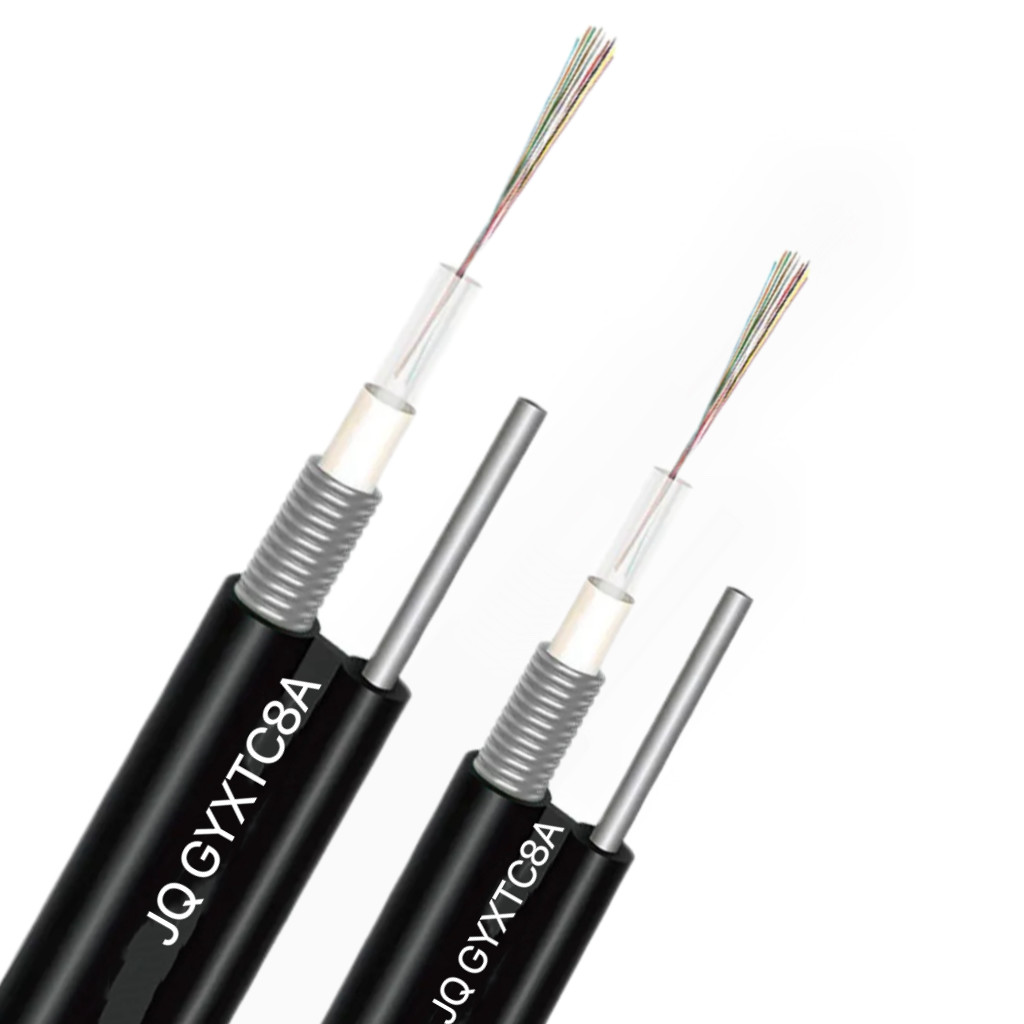

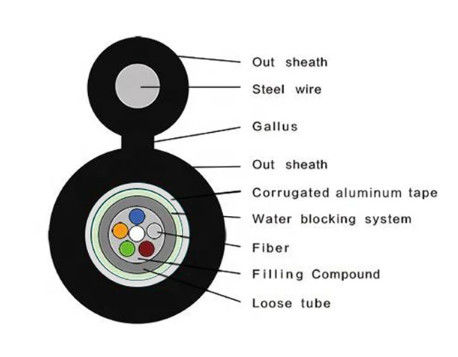

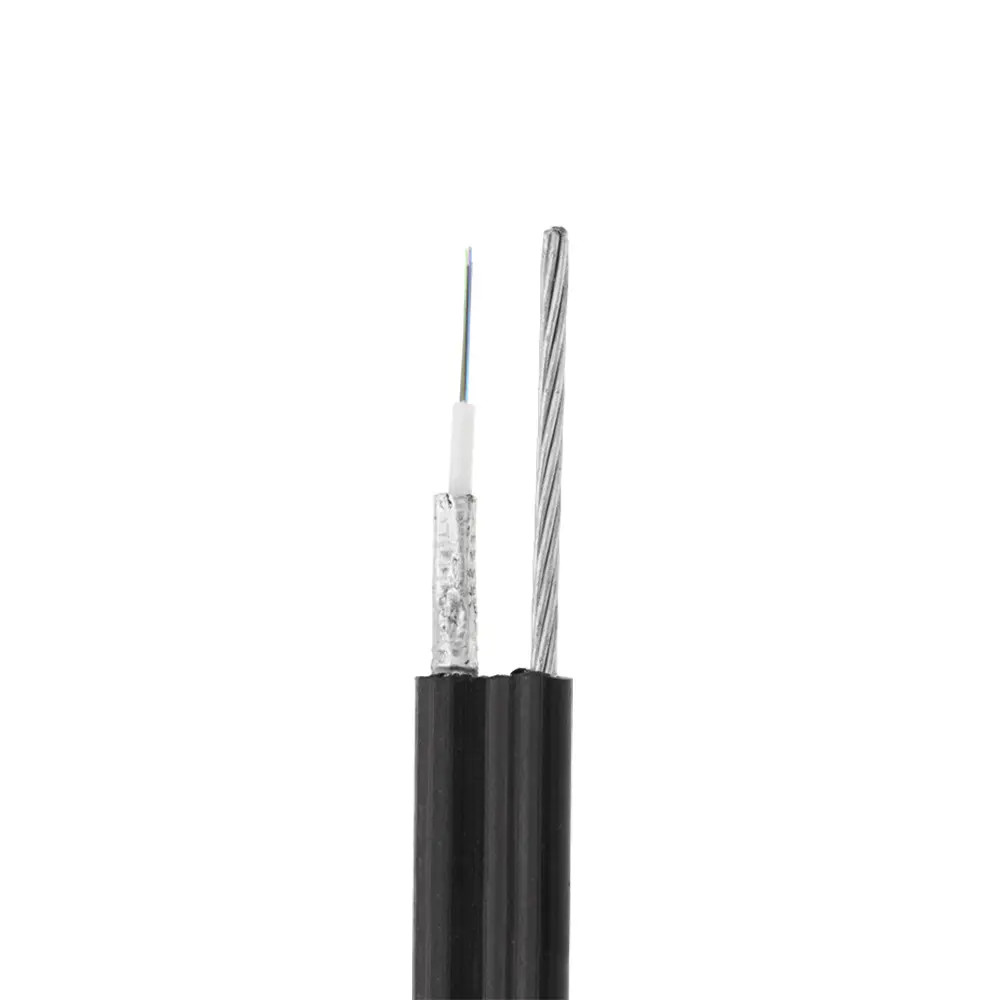

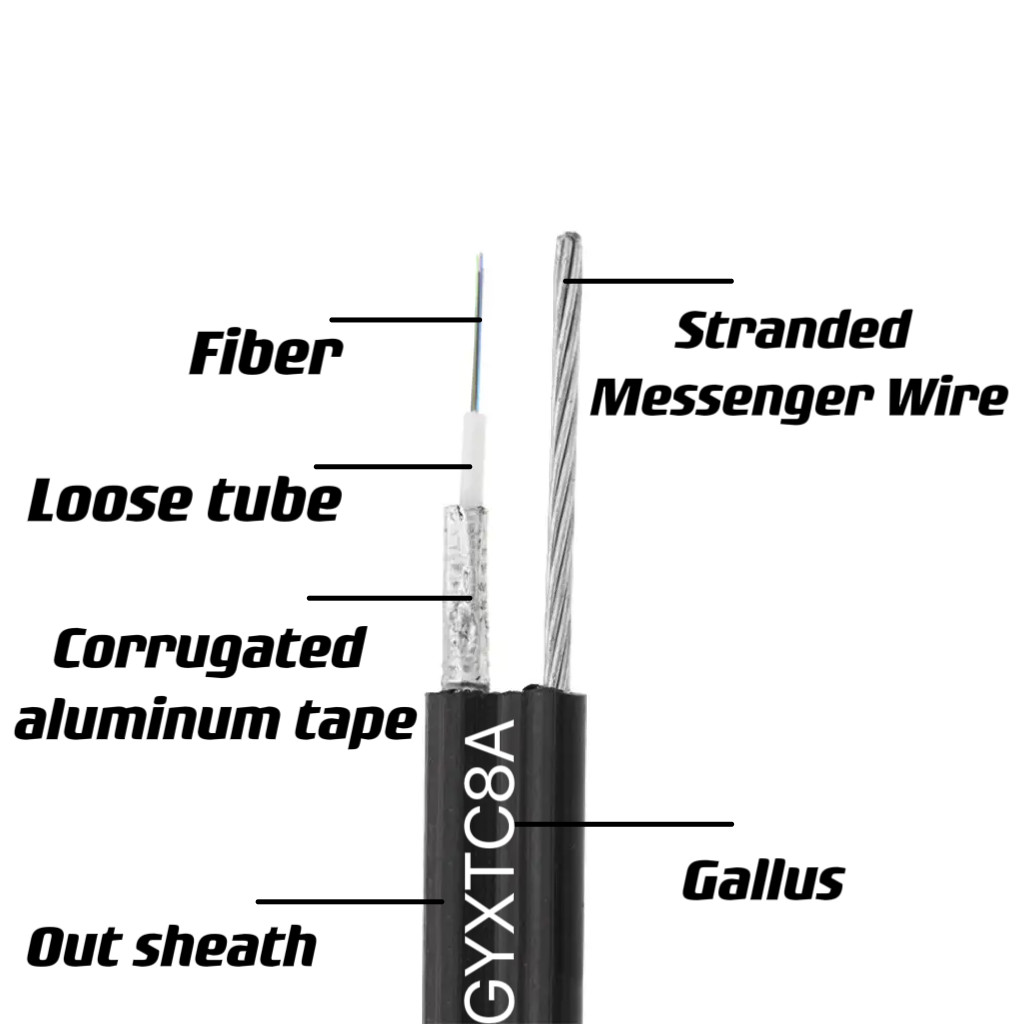

The GYTC8A cable is constructed by placing 250μm fiber inside a loose tube made of a high-modulus material, which is filled with a waterproof compound. The loose casing is longitudinally wrapped with a layer of plastic-coated aluminum tape (APL) and integrated with the wire strand into an 8-figure polyethylene sheath.
| item | value |
| Model Number | GYXTC8A |
| Type | Outdoor Fiber Optic Cable |
| Product name | outdoor distribution figure 8 armored fiber optic cable GYXTC8A |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | Uni-tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| armored or not | Corrugated aluminum tape armoured |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Optical Characteristics:
| G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
