Self Supporting 48 Core Aerial Optical Fiber Cable Gytc8s
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYTC8S GYTC8A |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Tube: | PBT |
| Messenger Wire: | Stranded Steel Wire | Outer Sheath: | PE Or As Your Request |
| Package: | Wooden Drum/Customized | Application: | Aerial,Overhead |
| Oem: | Available | ||
| High Light: | 24 Cores Fiber Optic Cable,Armored Fiber Optic Cable,Aerial Fiber Optic Cable |
||
Product Description
Product Description:

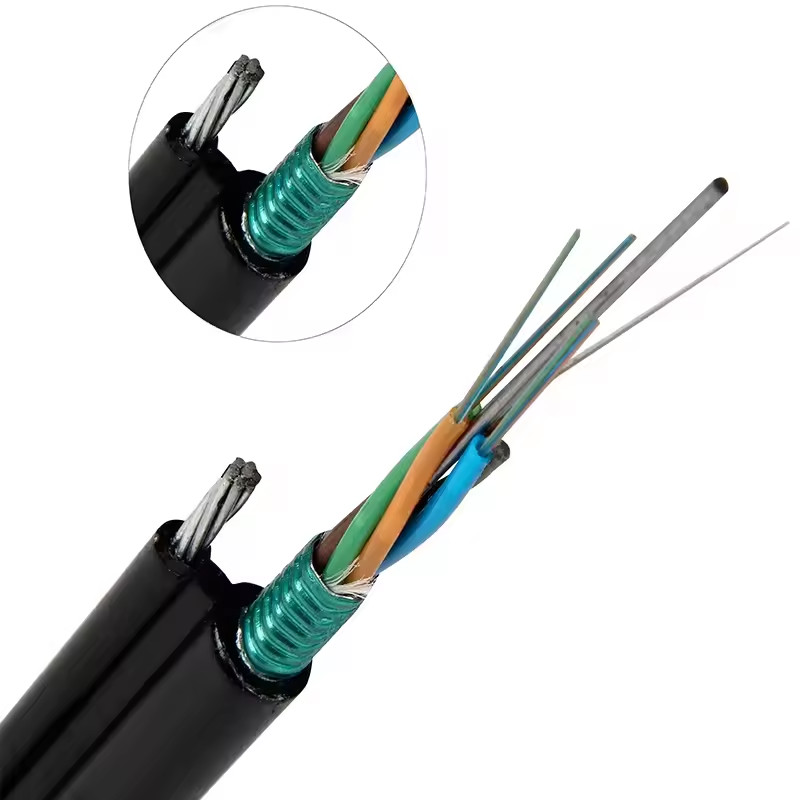

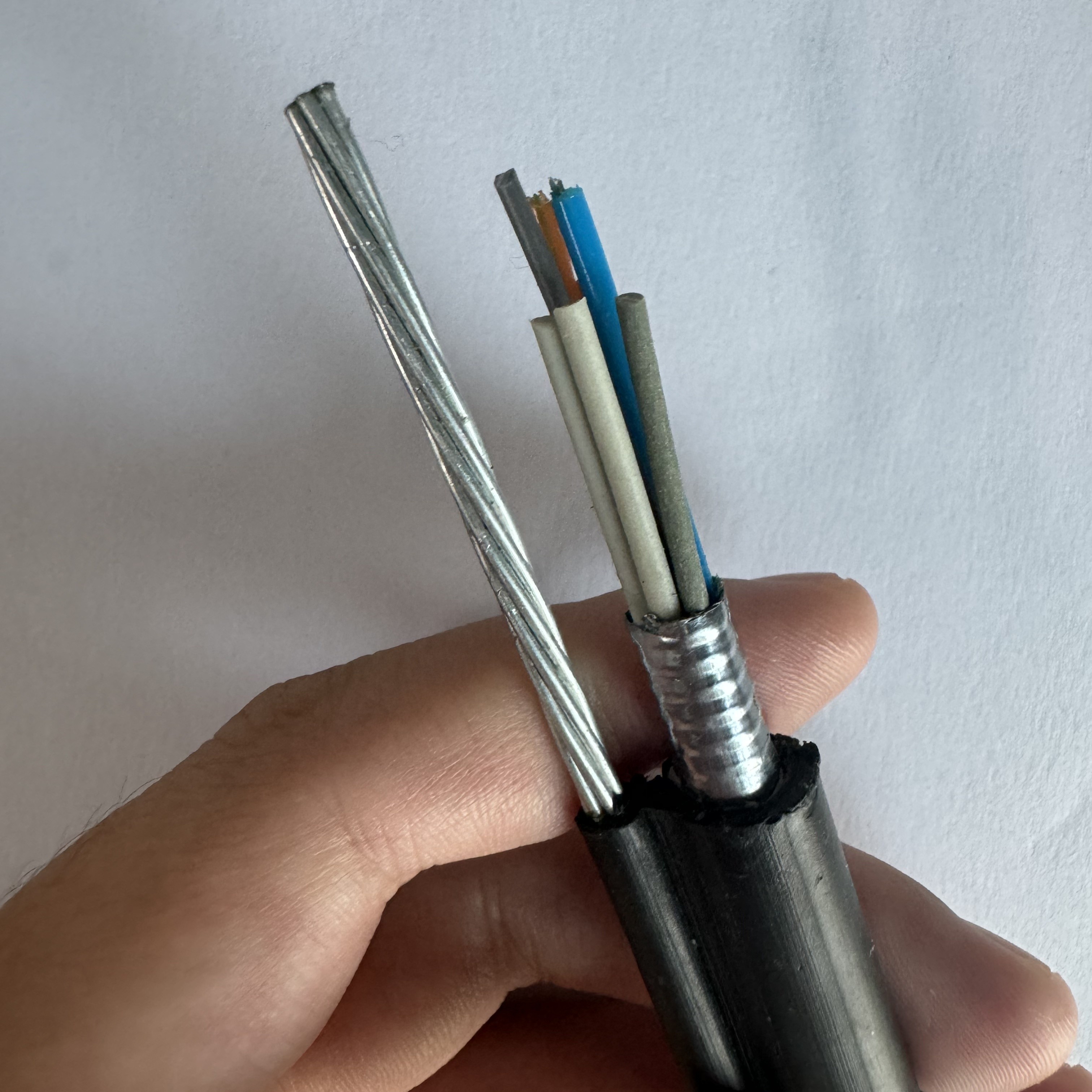

GYTC8A Aerial Self-supporting Fiber Optic Cable

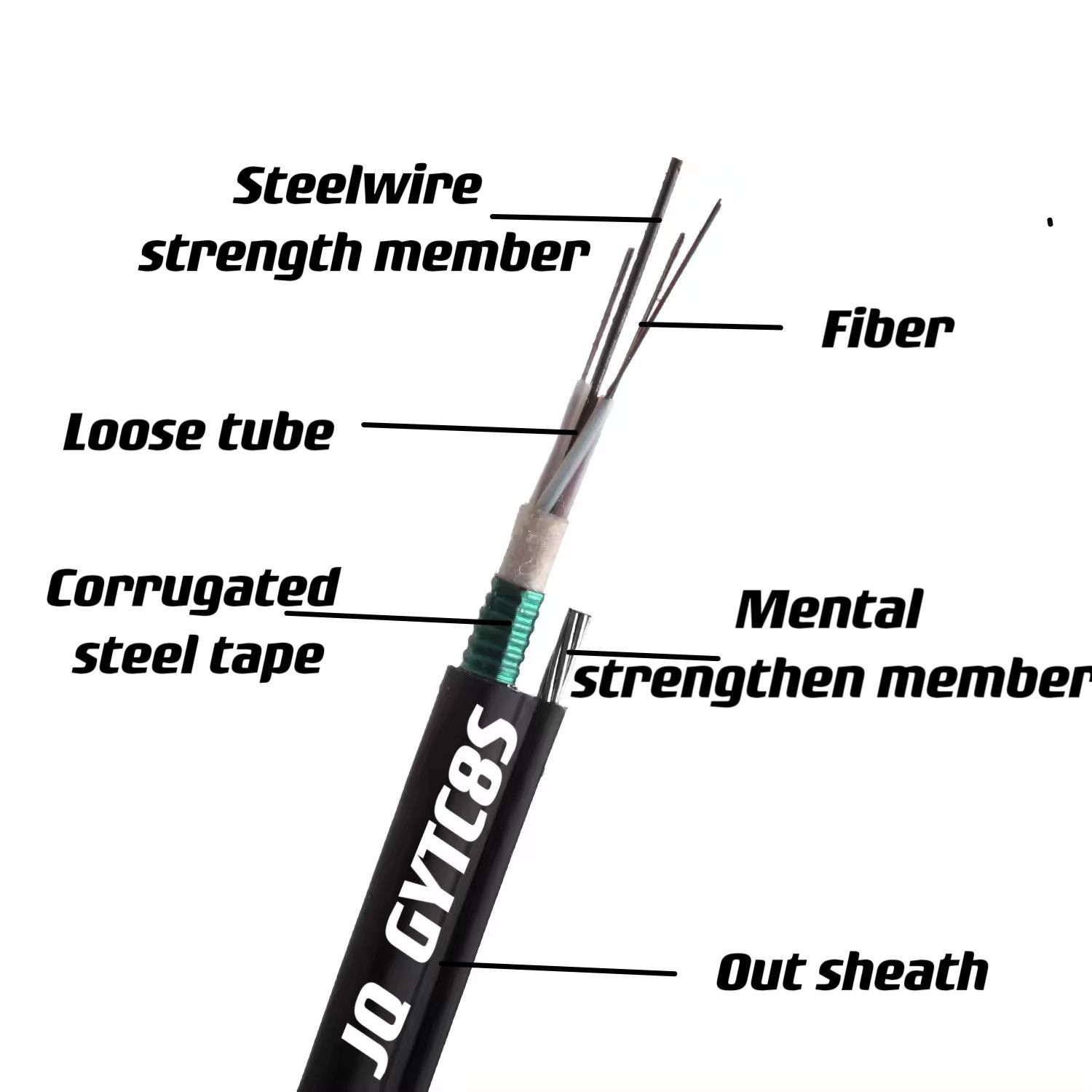

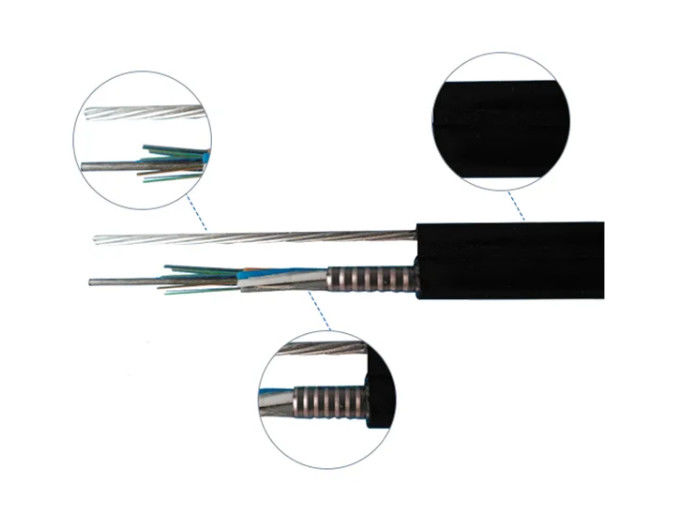

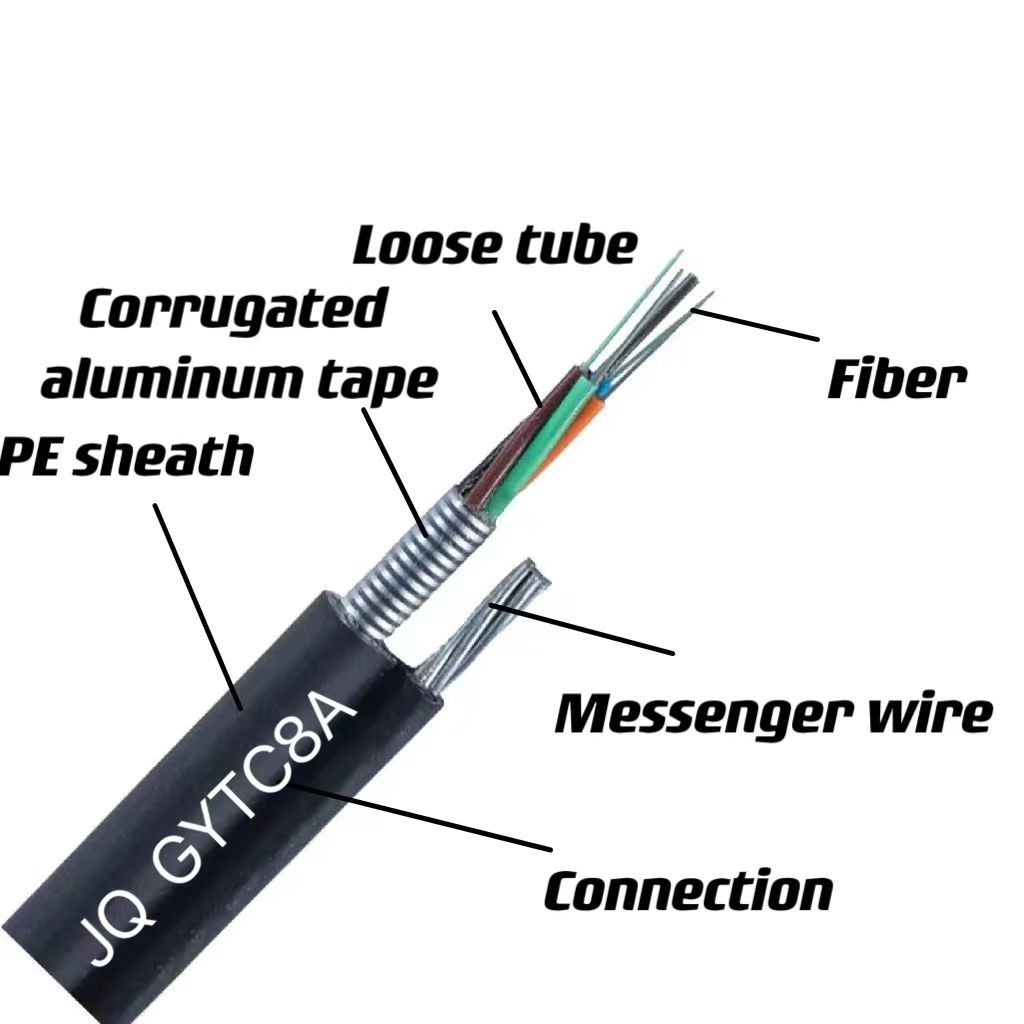

The fibers, 250 um, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistantfilling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are strandedaround the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate(APL) moisture barrieris applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed witha polyethylene (PE) sheath to be figure 8 structure.
Characteristics:
■ High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cast. ■ Good mechanical and temperature performance High strength loose tube that is hydrolysis resistant.
■ Special tube lling compound ensure a critical protection
■ Small cable diameter, light cable weight, self-supporting, easily to install
The following measures are taken to ensure the cable watertight:
-Steel wire used as the central strength member.
-Loose tube lling compound 100% cable core lling.
-APL moisture barrier.
Application:
* Adopted to outdoor distribution.
* Suitable for aerial.
* Long distance and local area network communication.
Specification:
| item | value |
| Model Number | GYTC8A/GYTC8S |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | multi loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose tube | PBT |
| Armor | Al /Steel tape armored |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Application | Aerial,Overhead |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
Structure and Technical Specifications:
| Items | Unit | Specifications |
| Tension(Long Term) | N | 600 |
| Tension(Short Term) | N | 1500 |
| Crush(Long Term) | N/10cm | 300 |
| Crush(Short Term) | N/10cm | 1000 |
| Min. Bend Radius(Dynamic) | mm | 20D |
| Min. Bend Radius(Static) | mm | 10D |
| Installation Temperature | ºC | -20~+60 |
| Operating Temperature | ºC | -40~+70 |
| Storage Temperature | ºC | -40~+70 |
| Cable Type | Fiber Count | Cable Diameter | Cable Weight Kg/km | Supporting Wire Spec | Connection Diameter mm | Tensile Strength | Crush Resistance N/100m | Bending Radius |
| mm | N | mm | ||||||
| GYXTC8S | 2～12 | 7.0×14.0 | 118 | ф1.0mm×7 | High * width | 3500/7000 | 1000/3000 | 15D/30D |
| steel strand | 3.0×2.5 | |||||||
| GYXTC8S | 14～24 | 8.0×15.1 | 129 | ф1.0mm×7 | High * width 3.0×2.5 | 3500/7000 | 1000/3000 | 15D/30D |
| steel strand |
