Product Description

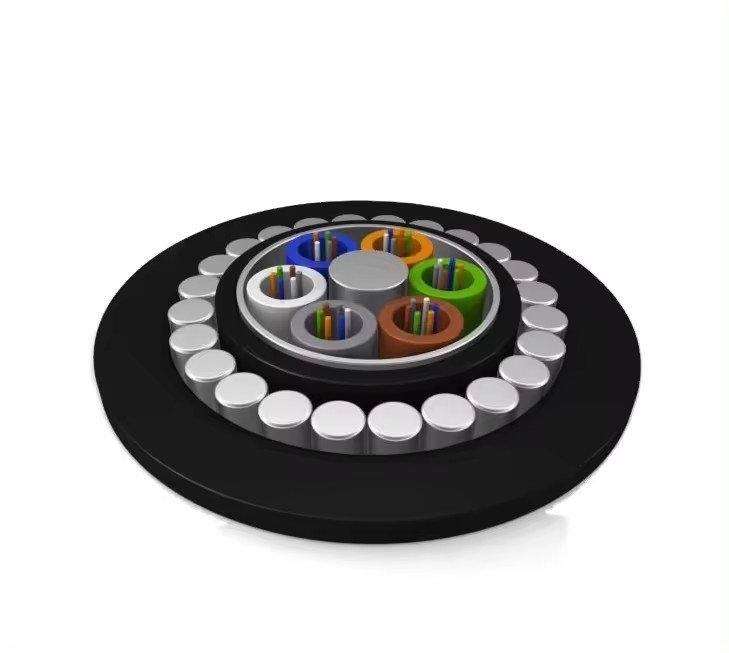

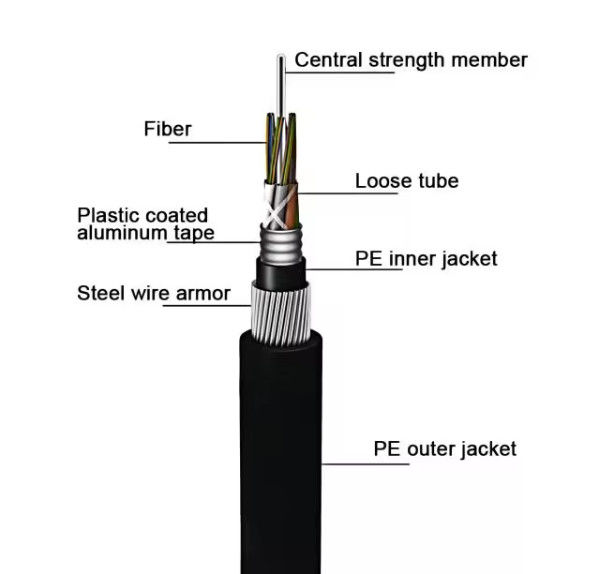

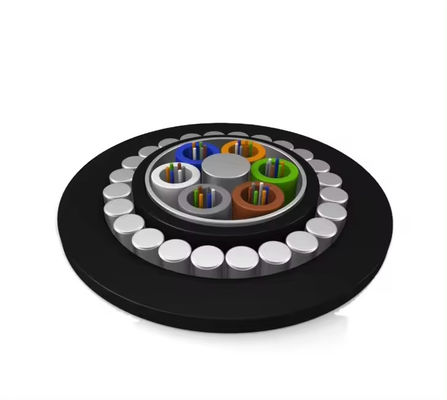

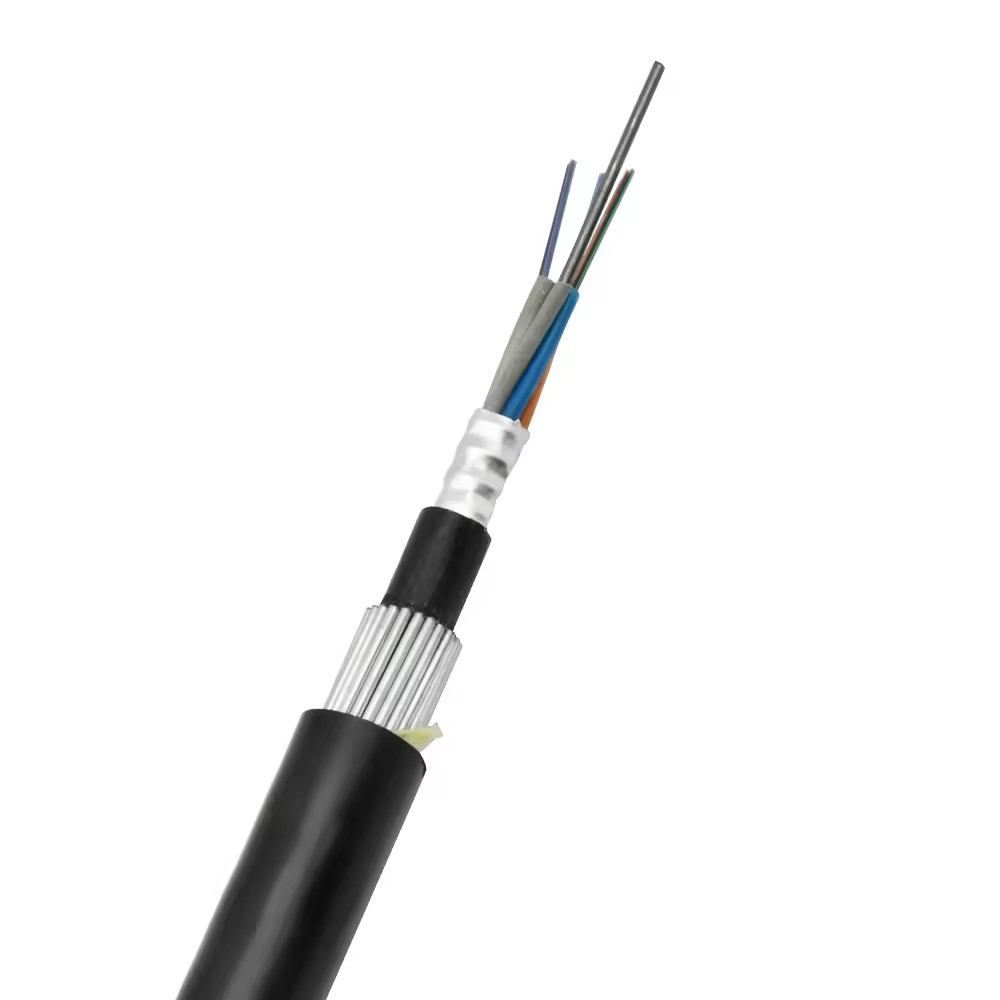

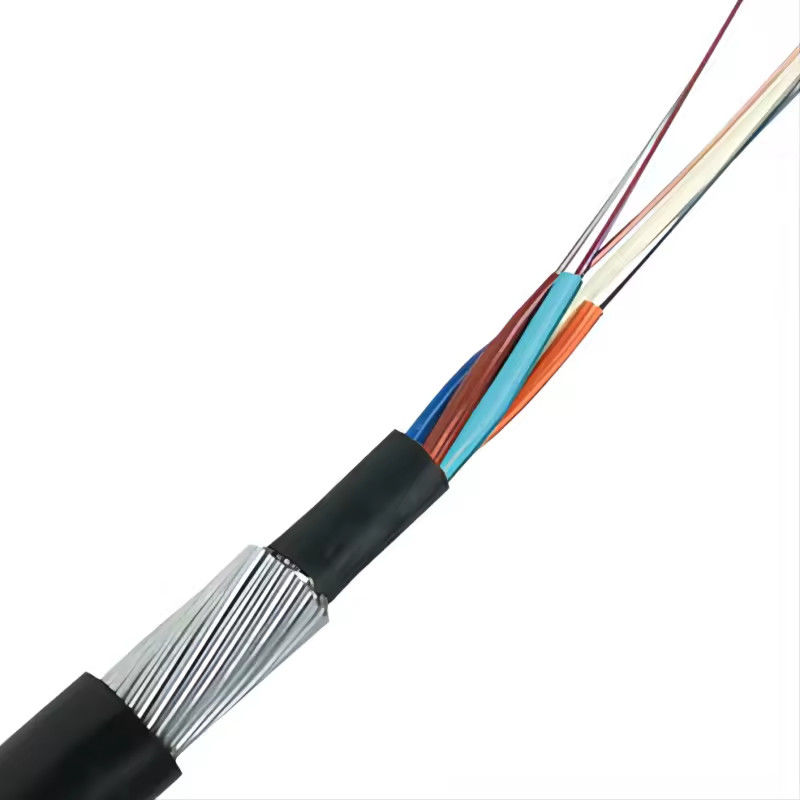

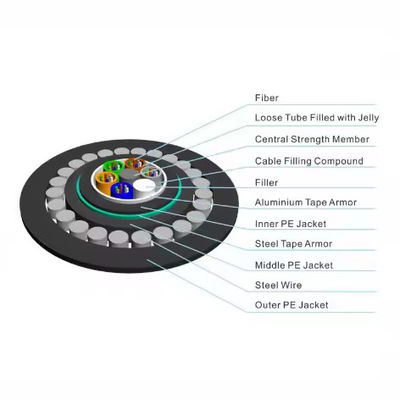

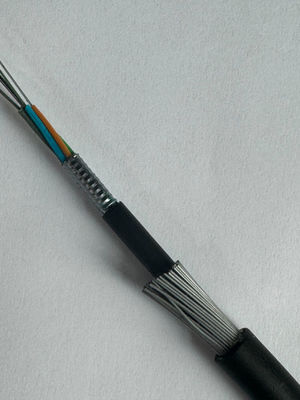

The structure of the GYTA33 optic cable is to sleeve the optical fiber into the PBT loose tube and fill with the thixotropic
compound. The central reinforcement of the cable core is a steel wire (a large core number structure optical cable needs to be extruded with a layer of PE cushion), and the loose tube is twisted around the central reinforcement by SZ stranding. The gaps in the cable core are filled with water-blocking compounds. The outer sheath is armored with a single thin round steel wire and extruded with a layer of polyethylene outer sheath.
Features:
1.High quality optical fiber provides good transmission performance.
2.Accurate fiber excess length control ensures excellent mechanical and temperature performance.
3.Special filling gel filled loose tubes provide perfect optical fiber protection.
4.All section water blocking ensure the cable core reliable performance of moisture-proof and water block.
5.Corrosion resistance phosphated steel wire with high Young's modulus as central strength member gives desirable tensile strength.
6.Longitudinally Armor with both side coated aluminum tape and stranded steel wires armoring meet the requirements of high crush resistance, tensile strength, bulletproof property, heavy duty direct bury underwater installation.
7.Strict craft and raw material control enable lifespan over 30 years.
Application:
Submarine optical fiber cable is laid in sea, river, and used for communication and data information transmission among continents, mainland, island and offshore operation equipments, it is provided with feature of high transmission capacity, and long continuous length.
| item |
value |
| Model Number |
GYTA33 |
| Type |
Outdoor Fiber Optic Cable |
| Place of Origin |
Guangdong,China |
| Brand Name |
jiqian |
| Number of Conductors |
≥ 10 |
| Fiber count |
2-288 Cores |
| Fiber Type |
G652D Single mode or as your request |
| Central strength member |
steel wire |
| Armoured |
Al tape |
| Outer Sheath |
PE |
| Cable Structure |
Multi-Loose Tube Aluminum Tape armor |
| Color |
Black or as your need |
| Application |
Direct burial, underground,sea |
| Certification |
CE/ROHS/ISO9001 /ANATEL |
| Item |
Unit |
Specification |
| Fiber Type |
G.652D |
|
Mode field diameter
|
1310nm |
mm |
9.2±0.4 |
| 1550nm |
mm |
10.4±0.8 |
| Cladding diameter |
mm |
125.0±1 |
| Cladding non-circularity |
% |
≤1.0 |
| Core/cladding concentricity error |
mm |
≤0.5 |
| Coating diameter |
mm |
245±5 |
| Coating non-Circularity |
% |
≤6.0 |
| Coating/cladding concentricity error |
mm |
≤12.0 |
| Cable cut-off wavelength |
nm |
≤1260 |
|
Attenuation Coefficient
|
1310nm |
dB/km |
≤0.36 |
| 1550nm |
dB/km |
≤0.22 |
| Proof stress level |
kpsi |
≥100 |
Packing
Iron-wooden drum or fumugated wooden drum,normal wooden drum
Drum size can be designed,details will calculation for suitable for containers.
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
