Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
whatsapp : +8618122384446
| Place of Origin: | Guangzhou China | Brand Name: | JQ |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | ADSS |
|
Detail Information |
|||
| Packaging Details: | 4km | Delivery Time: | 5-7days |
|---|---|---|---|
| Operating Temperature: | -40℃~+70℃ | Application: | Overhead |
| Cable Span: | 100M/200M/300M/400M | Name: | ADSS Fiber Optic Cable |
| Attenuation: | 1310nm: ≤0.36dB/km, 1550nm: ≤0.22dB/km | Fiber Count: | 2-144 |
| Jacket Color: | Black | Bending Radius: | Static: 10D/Dynamic: 20D |
Product Description
ADSS (All-Dielectric Self-Supporting) cable is ideal forinstallation in distribution as well as transmission environments, even when live-line installations are required. All Dielectric Self-supporting ADSS Cable
Can be installed without shutting offthe power.
ExcellentAT performance. The maximum inductive at the operating point ofAT jacket can reach 25kV.
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops.
Large span lengths and the largest span is over 200m.
Good performance oftensile strength and temperature.
The design life span is over 30 years.
Aerial
It is designed to withstand temperatures from -40℃ to +85℃,
| Name | ADSS Fiber Optic Cable |
|---|---|
| Fiber Count | 2-144 |
| Cable Span | 100M/200M/300M/400M |
| Fiber Type | Single-mode |
| Cable Length | 1km/2km/3km/4km/5km |
| Operating Temperature | -40℃~+70℃ |
| Application | Overhead |
| Fiber Grade | G.652D |
| Bending Radius | Static: 10D/Dynamic: 20D |
| Jacket Color | Black |

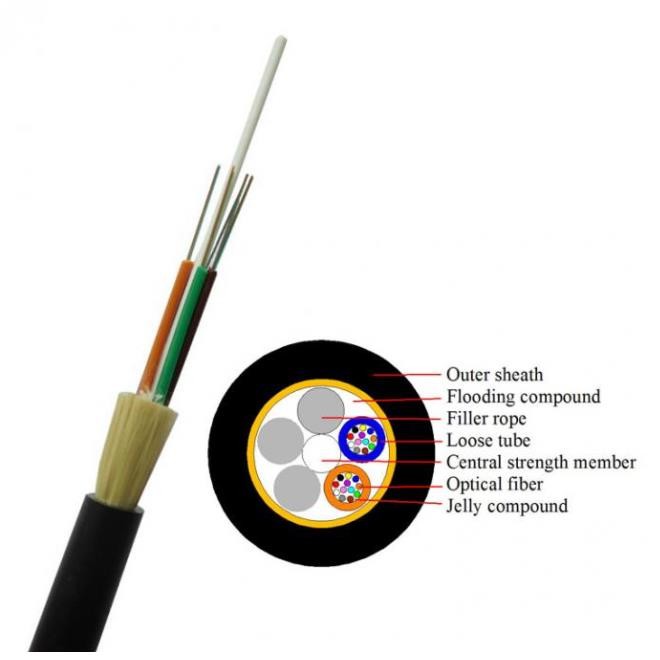

ADSS cable is a type of fiber optic cable that is strong enough to support itself between structures without containing conductive metal elements. Both single mode and multimode fibers can be arranged in ADSS cables with a maximum of 288 fibers. ADSS fiber optic cable is designed for outside plant aerial and duct applications in local and campus network loop architectures from pole-to-building to town-to-town installations. The cabling system that includes cables, suspension, dead-end, and termination enclosures offers a comprehensive transmission circuit infrastructure with high-reliability performance. ADSS fiber cable has the characteristics of full dielectric, no metal, non-conductivity, small cable diameter, high tensile force, low linear expansion coefficient, and wide temperature adaptation.
