January 19, 2021
As it is installed by the water, the waterblock system is very important.

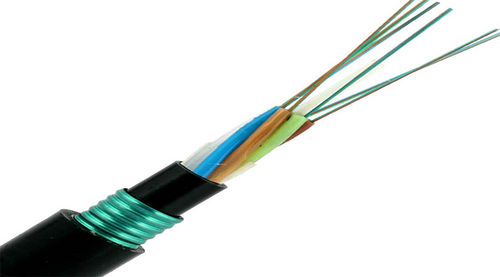

cable structure:
Application:
1. Direct burial
2. Underground
3. Backbone Internet
| Item | Parameters | |
|
Loose tube |
Material | PBT |
| Color | All colors display | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | FRP |
| Inner jacket | Material | HDPE |
| Color | Black | |
| Outer armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | HDPE |
| Color | Black | |
| Min. bending radius | Static | 12.5 times cable diameter |
| Dynamic | 25 times cable diameter | |
|
Repeating bending |
Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
|
| Tensile performance | Short term | 1500N |
| Crush | Short term | 3000N/100mm |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage. | |
pls kindly click here for more information of this item!!
