Application: Aerial / ground (earth) wire.

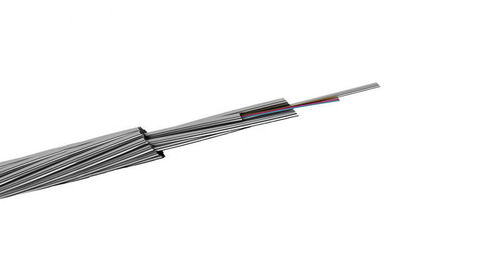

Overhead Optical Ground Wire Typical Design:
Specification | Fiber Count | Diameter(mm) | Weight (kg/km) | RTS(KN) | Short Circuit(KA2s) |
OPGW-113(87.9;176.9) | 48 | 14.8 | 600 | 70.1 | 33.9 |
OPGW-70(81;41) | 24 | 12 | 500 | 81 | 41 |
OPGW-66(79;36) | 36 | 11.8 | 484 | 79 | 36 |
OPGW-77(72;36) | 36 | 12.7 | 503 | 72 | 67 |
Note:
1.Only a part of Overhead Optical Ground Wire are listed in the table. Cables with other specifications can be inquired.
2.Cables can be supplied with a range of single mode or multimode fibers.
3.Specially designed Cable structure is available on request.
4.Cables can be supplied with dry core or semi dry core
