Fiber Cable Test Report | ||||||||||||||
Manufacturer NO:JQ12C-2020620001 | ||||||||||||||
Product Model | GYFTC8Y53-12B1 | Technical Standard | YD/T769-2003 | |||||||||||
Test Item (1) | Fiber Color | PBT Tube 1 | Fiber Color& Attenuation (α 1310nm≤0.36dB/km, α 1550nm≤0.25dB/km) | |||||||||||
blue | orange | green | brown | grey | nature | Red | Black | Yellow | Purple | Pink | Verdure | |||
1310 | 0.332 | 0.329 | 0.326 | 0.323 | 0.325 | 0.328 | 0.324 | 0.322 | 0.325 | 0.323 | 0.326 | 0.329 | ||
1550 | 0.191 | 0.184 | 0.182 | 0.183 | 0.197 | 0.186 | 0.184 | 0.197 | 0.186 | 0.193 | 0.192 | 0.187 | ||
PBT Tube 2 | blue | orange | green | brown | grey | nature | Red | Black | Yellow | Purple | Pink | Verdure | ||
1310 | 0.323 | 0.327 | 0.326 | 0.325 | 0.329 | 0.328 | 0.323 | 0.322 | 0.326 | 0.323 | 0.326 | 0.329 | ||
1550 | 0.181 | 0.186 | 0.182 | 0.184 | 0.197 | 0.186 | 0.185 | 0.197 | 0.186 | 0.193 | 0.192 | 0.187 | ||
PBT Tube 3 | blue | orange | green | brown | grey | nature | Red | Black | Yellow | Purple | Pink | Verdure | ||
1310 | 0.322 | 0.329 | 0.328 | 0.323 | 0.327 | 0.328 | 0.323 | 0.322 | 0.325 | 0.323 | 0.326 | 0.329 | ||
1550 | 0.193 | 0.184 | 0.185 | 0.183 | 0.198 | 0.186 | 0.187 | 0.192 | 0.186 | 0.193 | 0.192 | 0.187 | ||
PBT Tube 4 | blue | orange | green | brown | grey | nature | Red | Black | Yellow | Purple | Pink | Verdure | ||
1310 | 0.327 | 0.323 | 0.329 | 0.331 | 0.328 | 0.321 | 0.328 | 0.325 | 0.327 | 0.322 | 0.324 | 0.326 | ||
1550 | 0.191 | 0.195 | 0.181 | 0.194 | 0.181 | 0.186 | 0.181 | 0.183 | 0.189 | 0.193 | 0.191 | 0.196 | ||
Test Item (2) | Core diameter(um) | 9.3±0.7 | Dispersion Characteristics | Zero dispersion wavelength range ( nm ) | 1300-1324 | |||||||||
Cladding diameter(um) | 125±1 | Zero dispersion slope maximum( Ps/nm2.km ) | ≤0.092 | |||||||||||
Core/cladding concentricity error | <1 | 1288-1339 dispersion coefficient of Max( Ps/nm.km ) | ≤3.5 | |||||||||||
Cladding non-circularity | <2 | 1271-1360 dispersion coefficient of Max ( Ps/nm.km ) | ≤5.3 | |||||||||||
Cut off wavelength (nm) | <1260 | 1550nm dispersion coefficient of Max ( Ps/nm.km ) | ≤18 | |||||||||||
Test Item (3) | Cable Structure Integrity and Appearance | Complete cable structure, appearance without defects | ||||||||||||
Finished Cable Length(m) | 2000M | Water penetration test | PASS | |||||||||||
Cable O.D.(mm) | 12.2 ±0.2 | Metal connectivity | PASS | |||||||||||
Sheath integrity | Complete | |||||||||||||
GW | 480KG | Date | June 20.2020 | Temperature | 35℃ | humidity | 65% | |||||||
Stamp | Conclusion | |||||||||||||
Specification of cable | SM(9/125),12cores,6cores*2(PBT Tube),7*1.0mm Steel Wire,Central strength member FRP1.6mm,SADJ,GYFTC8Y53 |
Sample Show

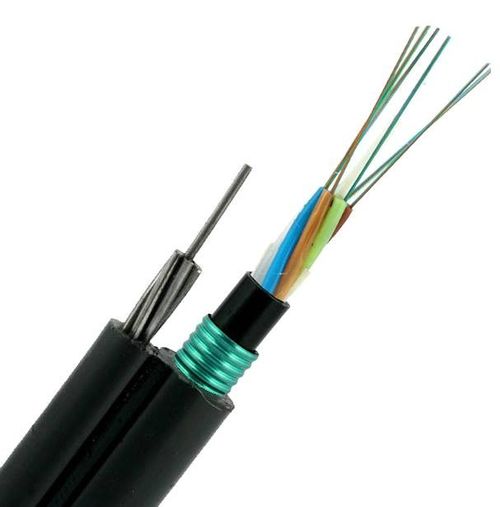

116KM Fig 8 Cable is be Loading into the Truck
Cable Marking
(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;
(4) Factory name;
(5) Date of manufacturing (year);
(6) Other requirements ;
The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.
