Home /Products/FTTH Fiber Optic Drop Cable/Single Mode 8 Core FTTH Fiber Optic Drop Cable

Single Mode 8 Core FTTH Fiber Optic Drop Cable

1kilometer
MOQ
Single Mode 8 Core FTTH Fiber Optic Drop Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangdong, China
Application: For Indoor Horizontal And Vertical Cabling
Out Color: Black And White
Material Of Sheath: LSZH
Core Number: 1-12
Strength Member: Steel Wire
Highlight:

armored FTTH Fiber Optic Drop Cable

,

8 core FTTH Fiber Optic Drop Cable

,

single mode ftth fiber cable
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: CE/ISO9001
Model Number: outdoor drop cable
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000kilometers per month
Product Description
  • Characteristic:
  • Special low-bend -sensitivity fiber provides high bandwidth and excellent communication transmission property
  • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
  • Single steel wire or massagers as the additional strength member ensures good performance of tensile strength .
  • Simple structure , light weight and high practicability
  • special flute desigh , easily strip and splice , simplify the installation and maintenance
  • Low smoke , zero halogen and flame retardant sheath
  • Optical Characteristic:
  • Type G.652 G.655 50/125 μm 62.5/125 μm

    Attenuation(+20 ℃)    		 850nm     ≤3.0dB/km ≤3.2dB/km
    1300nm     ≤1.0dB/km ≤1.2dB/km
    1310nm ≤0.36dB/km ≤0.40dB/km
    1550nm ≤0.22dB/km ≤0.23dB/km
    Brandwidth(Class A) 850nm     ≥500MHz.km ≥200MHz.km
    1300nm     ≥1000MHz.km ≥600MHz.km
    Numerical Aperture     0.200 ±0.015NA 0.275 ±0.015NA
    Cable Cut-off Wave length ≤1260nm ≤1450nm

  • Cable Parameters

    Items Specifications
    Fiber Count 1
    Colored Coating Fiber Dimension 250±15μm
    Color Blue/White
    Strength Member Dimension 0.45±0.05mm
    Material Steel
    Jacke Material LSZH
    Color White
    Cable weight   10.7kg/km
  • Outdoor ftth show

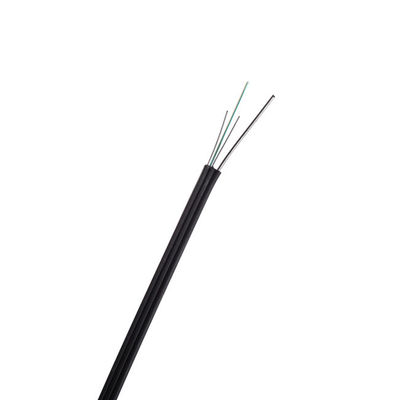

  • Single Mode 8 Core FTTH Fiber Optic Drop Cable 0
  • Indoor ftth show

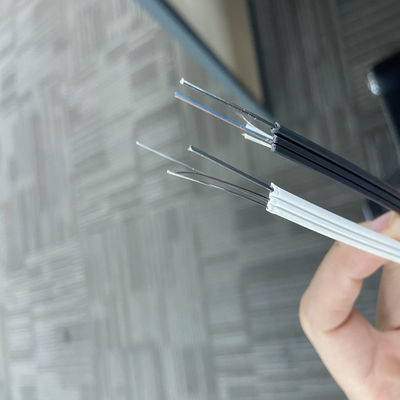

  • Single Mode 8 Core FTTH Fiber Optic Drop Cable 1
