Home /Products/FTTH Fiber Optic Drop Cable/FTTH Fiber Optic Drop Cable GJYXFCH GJXFH 1 2 4 Core Indoor Outdoor LSZH Low Smoke Zero Halogen

FTTH Fiber Optic Drop Cable GJYXFCH GJXFH 1 2 4 Core Indoor Outdoor LSZH Low Smoke Zero Halogen

1kilometer
MOQ
FTTH Fiber Optic Drop Cable GJYXFCH GJXFH 1 2 4 Core Indoor Outdoor LSZH Low Smoke Zero Halogen
Features Gallery Product Description Request A Quote
Features
Specifications
Brand Name: JQ\OEM
Material Of Sheath: LSZH
Jacket Colors: Black,white Etc.
Strength Member: Steel Wire/FRP
Fiber: Singlemode, Multi-mode
Fiber Type: G652D/G657A
Fiber Brand: YOFC/Fiberhome/ Corning/Fujikura
Key Words: FTTH Drop Cable
Highlight:

FTTH fiber optic drop cable LSZH

,

indoor outdoor fiber optic cable

,

GJYXFCH GJXFH 4 core cable
Basic Infomation
Place of Origin: China
Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001
Model Number: FTTH drop cable
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 80000kilometers per month
Product Description

FTTH optical fiber cables G652D G657A fibre 1 2 core single mode GJYXCH drop fiber optic cable



Product Description:

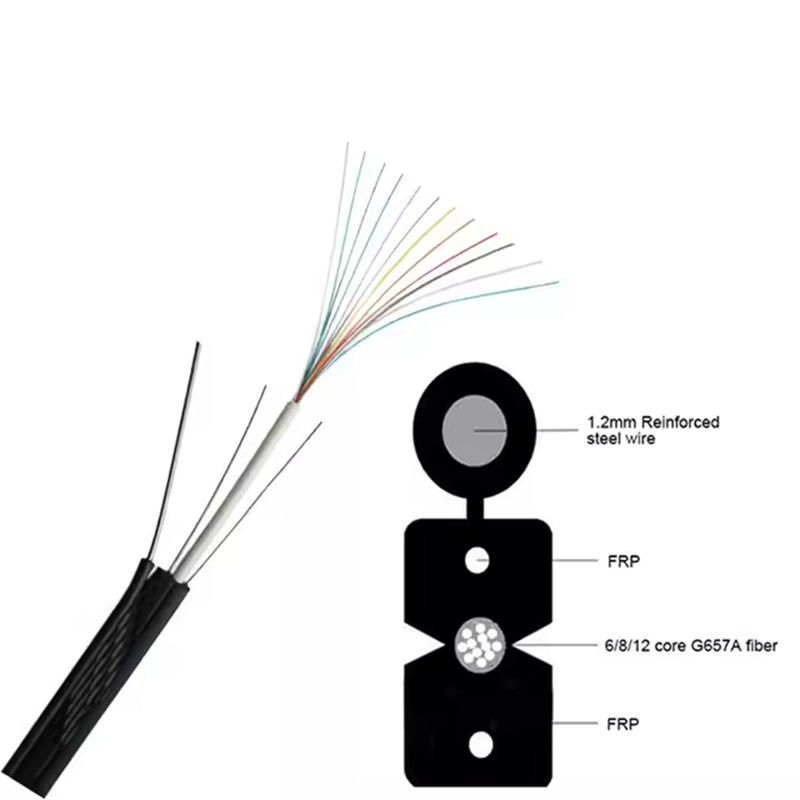

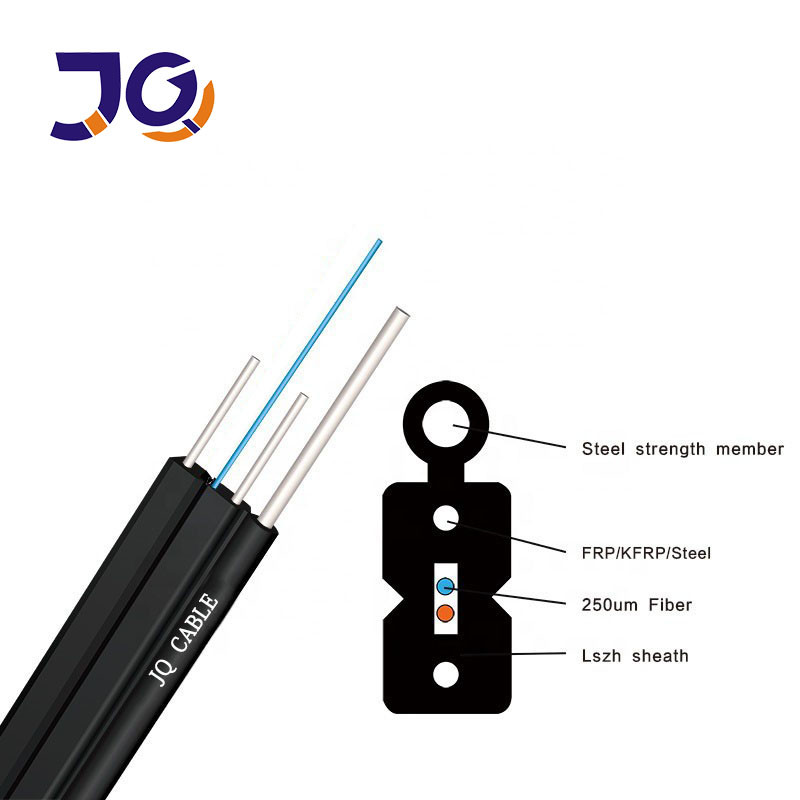

FTTH indoor/outdoor drop cable with low-bend-sensitivity fiber provides high-speed and stable signal transmission. Designed with dual FRP strength members and a steel wire for superior durability. Its lightweight, easy-strip structure simplifies installation. The LSZH flame-retardant sheath ensures safety and environmental protection.



Characteristics:

  • Low-bend-sensitivity fiber ensures high bandwidth and stable transmission.

  • Dual FRP strength members provide crush resistance; steel wire adds tensile strength.

  • Simple, lightweight design for easy installation.

  • Special flute structure allows quick stripping and splicing.

  • LSZH flame-retardant sheath for safe and eco-friendly use.

Optical Characteristic:

Model
 		 142 242 342 442
Type G.652D G.657A 50/125 μm 62.5/125 μm

Attenuation(+20 ℃)		 850nm     ≤3.0dB/km ≤3.5dB/km
1300nm     ≤1.5dB/km ≤1.5dB/km
1310nm ≤0.40dB/km ≤0.35dB/km
1550nm ≤0.3dB/km ≤0.25dB/km
Brandwidth(Class A) 850nm     ≥500MHz.km ≥200MHz.km
1300nm     ≥1000MHz.km ≥600MHz.km
Numerical Aperture     0.200 ±0.015NA 0.275 ±0.015NA
Cable Cut-off Wave length ≤1260nm ≤1480nm

Technical Parameters

Fiber Cores Cable OD(mm) Cable/Weight(kg/km) Tensile Strength(long/short term) Crush Resistance(long/short term N/100mm Bending Radius Static/Dynamic mm
1 (2.0±0.2)* (5.0±0.2) 20 60/120 300/1000 15/35
2 (2.0±0.2)* (5.0±0.2) 20 60/120 300/1000 15/35
4 (2.0±0.2)* (5.5±0.2) 21 60/120 300/1000 15/35
6 (2.0±0.2)* (6.0±0.2) 22 60/120 300/1000 15/35






FTTH Fiber Optic Drop Cable GJYXFCH GJXFH 1 2 4 Core Indoor Outdoor LSZH Low Smoke Zero Halogen 0



Packing

FTTH Fiber Optic Drop Cable GJYXFCH GJXFH 1 2 4 Core Indoor Outdoor LSZH Low Smoke Zero Halogen 1

FTTH Fiber Optic Drop Cable GJYXFCH GJXFH 1 2 4 Core Indoor Outdoor LSZH Low Smoke Zero Halogen 2



FAQ

1. Are you a trading company or manufacturer?
We are a professional manufacturer with over 10 years of experience in fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, China — welcome to visit us!

2. How is the quality?
All fibers are 100% tested before delivery. Free samples are available after price confirmation.

3. Do you accept small orders?
Yes, small or trial orders are welcome to support new projects.

4. What is the delivery time?
Normally 3–7 working days, depending on order quantity. We arrange shipment as soon as payment is received.

5. Do you offer OEM service?
Yes, OEM is available. We can print your logo and customize according to your ideas.
