Outdoor 12 24 48 Core Dome Type Closure Fiber Cable Joint Box Fiber Optic Splice Closure
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 50 pieces | Packaging Details : | Carton box |
|---|---|---|---|
| Payment Terms : | L/C, T/T, Western Union,Alipay | Supply Ability : | 50000 per month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC | Model Number: | Fiber optic PLC splitter |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
|---|---|---|---|
| Connector Type: | FC-APC | Length: | 1/2/3 Or Customized |
| Product Name: | PLC Splitter | Type: | 1x8 |
| Application: | FTTH FTTB FTTX Network | Fiber Type: | Singlemode Or Multimode |
| High Light: | 1x8 ABS Box Fiber Optic PLC Splitter,2.0mm 1x8 plc splitter,2.0mm ABS box PLC splitter |
||
Product Description
Production Description
PLC splitter is based on planar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently. Siemax’ PLC splitter offers superior optical performance, high stability and high reliability, meet various application requirements in different environments.

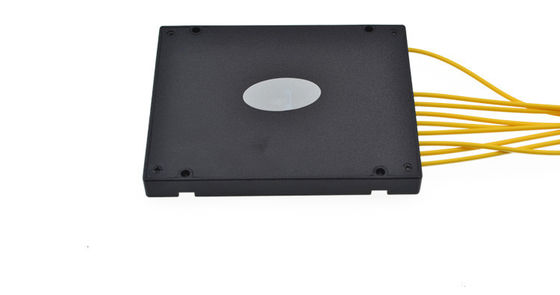

Product Show
|
1xN PLC Splitter Specification
|
|||||||
|
Operating Wavelength(nm)
|
1260~1650
|
||||||
|
Fiber Type
|
G657A1 or as customers' order
|
||||||
|
Port Configuration
|
1x2
|
1x4
|
1x8
|
1x16
|
1x32
|
1x64
|
1x128
|
|
Insertion Loss (dB)
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/13.7
|
16.5/16.9
|
20.5/21.0
|
23.8/24.2
|
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2.0
|
2.5
|
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.35
|
0.4
|
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Temperature Dependent Loss (-40~85 ) (dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Return Loss (dB)
|
55/50
|
||||||
|
Operating Temperature
|
-40~+85
|
||||||
|
Directivity (dB)
|
≥ 55
|
||||||
|
Storage Temperature
|
-40~+85
|
||||||
Feature
1. Low Insertion Loss
2. Low Polarization Dependent Loss
3. Wide Operation Wavelength
4. Wide Operation Temperature
5. High Stability and Reliability
6. Telcordia GR-1209 and GR-1221 Compliance
7. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
Types
1. Basic type PLC splitter
2. SFF type PLC splitter
3. 900um Fan-out Type PLC Splitter
4. Cassette type PLC splitter Module
5. Rack type PLC splitter Module
6. Tray assembly PLC splitter Module
7. Flat Quick-Connect Termination Type PLC Splitter Module

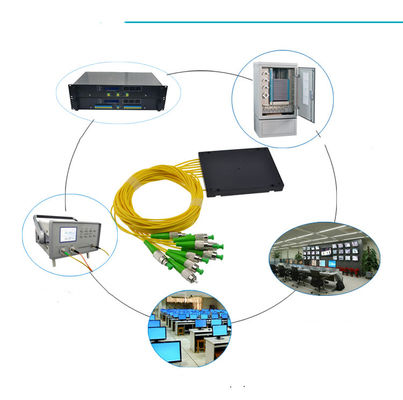

Application
1. FTTX networks
2. PON networks
3. CATV links
4. Data Communication
Quick Details
