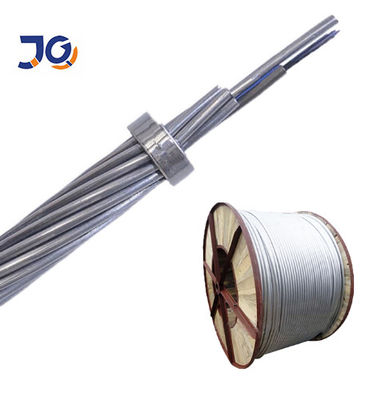

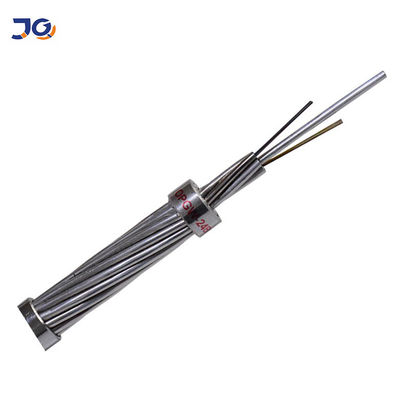

High Tensile Dia14mm 24Core OPGW Fiber Optical Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: opgw

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: LAN Communication/Outdoor Communication Number Of Conductors: 4 6 8 12 24 48
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Central Strength Member: Aluminium Wires Model Number: OPGW-stranded
High Light:

dia14mm 24Core OPGW Fiber Optical Cable


dia14mm High Tensile OPGW Fiber Optical Cable

Product Description

The Central Tube Optical Ground Wire (OPGW) is a type of cable that is used in overhead power lines. Such cable combines the functions of grounding and communications. An OPGW cable contains a tubular structure with one or more optical fibers in it, surrounded by layers of steel and aluminum wire. The OPGW cable is run between the tops of high-voltage electricity pylons. The conductive part of the cable serves to bond adjacent towers to earth ground, and shields the high-voltage conductors from lightning strikes.

Specification Fiber Count







Short Circuit


OPGW-89[55.4;62.9] 24 12.6 381 55.4 62.9
OPGW-110[90.0;86.9] 24 14 600 90 86.9
OPGW-104[64.6;85.6] 28 13.6 441 64.6 85.6
OPGW-127[79.0;129.5] 36 15 537 79 129.5
OPGW-137[85.0;148.5] 36 15.6 575 85 148.5
OPGW-145[98.6;162.3] 48 16 719 98.6 162.3



1. Small diameter, low weight reduces retrofit impact

2. Hermetically sealed stainless steel tubes provide mechanical and thermal protection for fibers

3. Thick-walled aluminum pipe provides crush resistance and boosts fault current rating

4. Replacement with ACS wires improves lightning resistance

5. Lower wind and ice loads put less load on structures

6. Fiber grouped in bundles of 12 for ease of splicing

Product Uses

1. For use by electric utilities on transmission lines in lieu of traditional shield wire

2. For retrofit applications where existing shield wire needs to be replaced with OPGW

3. For new transmission lines instead of traditional shield wire

4. Voice, video, data transmission

5. SCADA networks

6. Dark fiber leasing


Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.



1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
