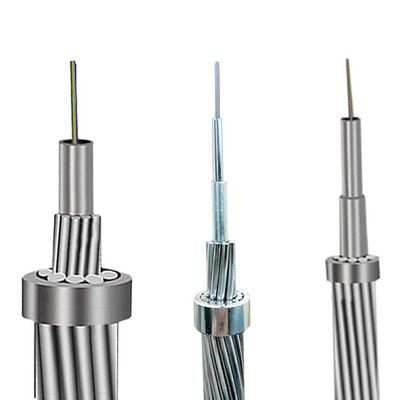

24 48 Core OPGW Optical Ground Wire Cable for Power Transmission Line
24 48 Core OPGW Optical Ground Wire Cable for Power Transmission Line
24 48 Core OPGW Optical Ground Wire Cable for Power Transmission Line 24 48 Core OPGW Optical Ground Wire Cable for Power Transmission Line 24 48 Core OPGW Optical Ground Wire Cable for Power Transmission Line 24 48 Core OPGW Optical Ground Wire Cable for Power Transmission Line
Contact Now

24 48 Core OPGW Optical Ground Wire Cable for Power Transmission Line

Minimum Order Quantity : 5 km Price : 1680USD / km

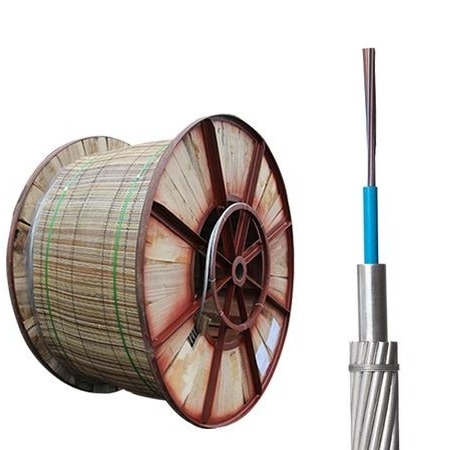

Packaging Details : 1/2/3/4/5 km in one wooden drum Delivery Time : 15 dyas
Payment Terms : L/C, T/T, Western Union Supply Ability : 50 KM Per day
Place of Origin: Guangdong China Brand Name: JQ/OEM/Customize
Certification: ISO9001/CE/ROHS/FCC Model Number: OPGW-24B1-86(87.6;55.8)

Detail Information
Fiber Type: Single Mode G652D Fiber Count: 24 48 Core
Structure: Unitube Installation: Power System
Fiber Brand: Corning/ YOFC Or Customerized Fiber Type: G652D G655 G657
Cable Mode: Ground Wire Core Number: 24/48/According To Customer
Highlight:

24 core OPGW cable for power lines

,

48 core optical ground wire cable

,

OPGW fiber optic cable with warranty

Product Description

Optical Power Ground Wire (OPGW Cable)

Overview
OPGW integrates optical fibers within the ground wire of overhead high-voltage lines, combining lightning protection, grounding, and optical communication. It offers reliable data transmission, strong mechanical performance, and cost-effective installation by replacing traditional ground wires directly.

Key Features

  • High Protection: Stainless steel tube with water-blocking compound protects fibers from moisture and stress.

  • Strong & Durable: Excellent tensile strength for harsh environments.

  • Stable Electrical Performance: Reduces interference during short circuits.

  • Easy Installation: Fits standard ground wire specs; simple replacement.

  • Dual Function: Provides both grounding and high-speed communication.

  • Wide Use: Ideal for power lines, substations, and smart grids.

Structure & Specs

  • Stranded design with aluminum-clad steel or aluminum alloy wires

  • Fiber types: G652D, G655C, G657A1, OM3, OM4

  • Up to 96 cores

  • Suitable for ≤110KV power lines and UHV systems

  • Central aluminum-covered stainless steel tube for strength and long-term reliability

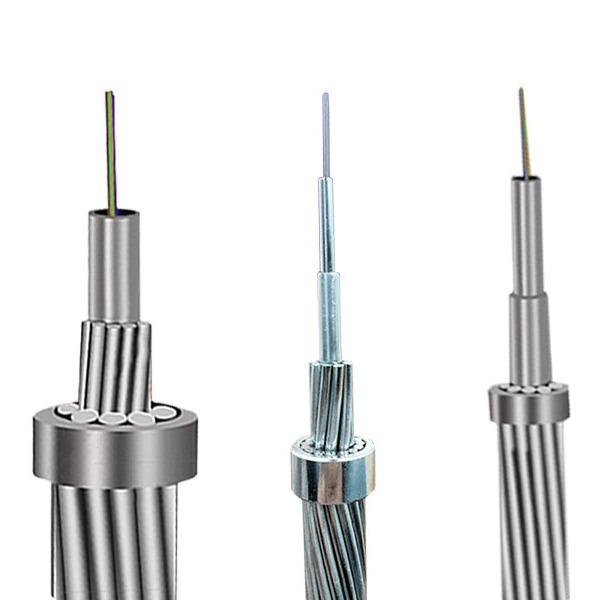

24 48 Core OPGW Optical Ground Wire Cable for Power Transmission Line 0

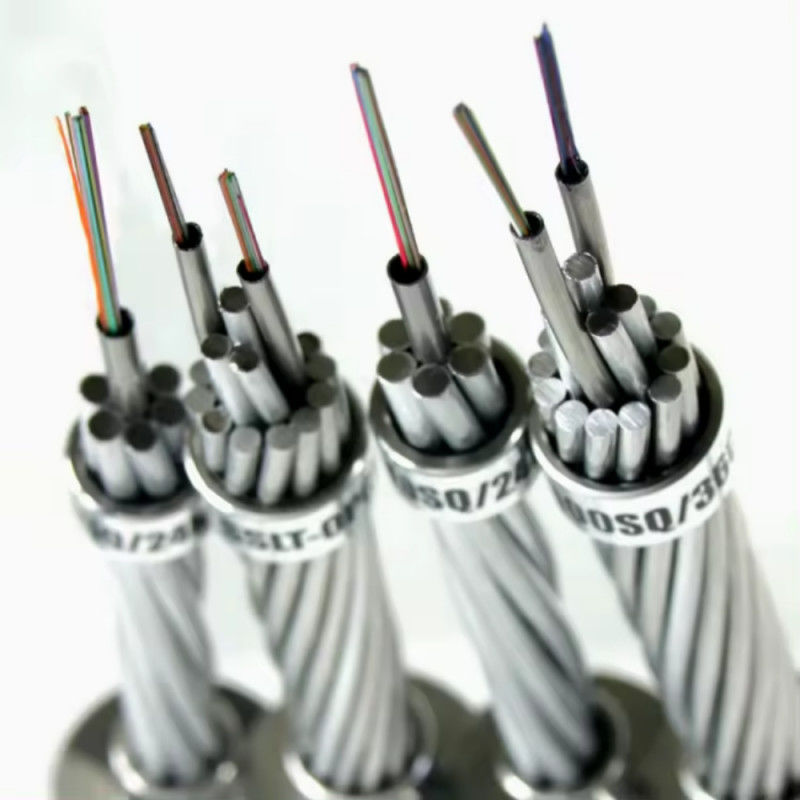

24 48 Core OPGW Optical Ground Wire Cable for Power Transmission Line 1

Parameter



OPGW with PBT Aluminum Tube

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)

OPGW-113(87.9;176.9) 48 14.8 600 87.9 176.9
OPGW-70(81; 41) 24 12 500 81 41
OPGW-66(79;36) 36 11.8 484 79 36
OPGW-77(72;36) 36 12.7 503 72 67



OPGW Typical Designs of Stranded Stainless Steel Tube

Typical design for Double Layer:

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s)
OPGW-89[55.4;62.9] 24 12.6 381 55.4 62.9
OPGW-110[90.0;86.9] 24 14 600 90 86.9
OPGW-104[64.6;85.6] 28 13.6 441 64.6 85.6
OPGW-127[79.0;129.5] 36 15 537 79 129.5
OPGW-137[85.0;148.5] 36 15.6 575 85 148.5
OPGW-145[98.6;162.3] 48 16 719 98.6 162.3

Typical design for Three Layer:

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit (KA2s)
OPGW-232[343.0;191.4] 28 20.15 1696 343 191.4
OPGW-254[116.5;554.6] 36 21 889 116.5 554.6
OPGW-347[366.9;687.7] 48 24.7 2157 366.9 687.7
OPGW-282[358.7;372.1] 96 22.5 1938 358.7 372.1



OPGW Typical Designs of Central AL-covered Stainless Steel Tube

Typical Design for Single Layer

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)
OPGW-80(82.3;46.8) 24 11.9 504 82.3 46.8
OPGW-70(54.0;8.4) 24 11 432 70.1 33.9
OPGW-80(84.6;46.7) 48 12.1 514 84.6 46.7

Typical Design for Double Layer

Specification Fiber Count Diameter(mm) Weight (kg/km) RTS(KN) Short Circuit(KA2s)
OPGW-143(87.9;176.9) 36 15.9 617 87.9 176.9



OPGW Typical Designs of Central Stainless Steel Loose Tube

Typical design for Single Layer:

Specification Fiber Count Diameter (mm) Weight (kg/km) RTS (KN) Short Circuit (KA2s)
OPGW-32(40.6;4.7) 12 7.8 243 40.6 4.7
OPGW-42(54.0;8.4) 24 9 313 54 8.4
OPGW-42(43.5;10.6) 24 9 284 43.5 10.6
OPGW-54(55.9;17.5) 36 10.2 394 67.8 13.9
OPGW-61(73.7;175) 48 10.8 438 73.7 17.5
OPGW-61(55.1;24.5) 48 10.8 358 55.1 24.5
OPGW-68(80.8;21.7) 54 11.4 485 80.8 21.7
OPGW-75(54.5;41.7) 60 12 459 63 36.3
OPGW-76(54.5;41.7) 60 12 385 54.5 41.7

Typical design for Double Layer:

Specification Fiber Count Diameter (mm) Weight (kg/km) RTS (KN) Short Circuit (KA2s)
OPGW-96(121.7;42.2) 12 13 671 121.7 42.2
OPGW-127(141.0;87.9) 24 15 825 141 87.9
OPGW-127(77.8;128.0) 24 15 547 77.8 128
OPGW-145(121.0;132.2) 28 16 857 121 132.2
OPGW-163(138.2;183.6) 36 17 910 138.2 186.3
OPGW-163(99.9;213.7) 36 17 694 99.9 213.7
OPGW-183(109.7;268.7) 48 18 775 109.7 268.7
OPGW-183(118.4;261.6) 48 18 895 118.4 261.6



FAQ

1. Are you a trading company or manufacturer?
We are a manufacturer with over 10 years of experience in fiber optic cables, drop cables, and patch cords. Our factory is in Guangzhou — welcome to visit!



2. How do you ensure quality?
All fibers are strictly tested before delivery. Free samples are available after price confirmation.



3. Do you accept small orders?
Yes, trial and small-volume orders are welcome.



4. What’s the delivery time?
Usually 3–7 working days, depending on quantity.



5. Do you offer OEM service?
Yes, we can print your logo and customize designs.
