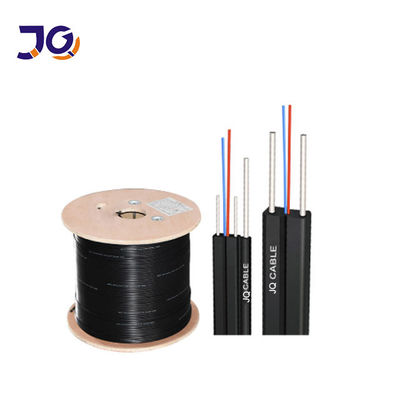

LSZH Sheath Plywood 2 Core Ftth Cable Outdoor Aerial

Contact Now

LSZH Sheath Plywood 2 Core Ftth Cable Outdoor Aerial

Minimum Order Quantity :	1km	Packaging Details :	Wooden drum
Delivery Time :	3-5 days,it depends on order quantity	Payment Terms :	L/C, T/T, Western Union,Alipay
Supply Ability :	4500 per month

Place of Origin:	China	Brand Name:	Jiqian
Certification:	ISO 9001 CE FCC ROHS	Model Number:	GJYXCH/GJYFXCH

Detail Information
Place Of Origin:	Guangzhou,China	Brand Name:	Jiqian
Number Of Conductors:	1/2/4	Application:	Outdoor Aerial
Fiber Type:	G652D/G657A1/G657A2	Certification:	ISO 9001/CE/FCC/ROHS
Manufacturer:	Yes	Outer Sheath:	LSZH
Fiber Brand:	Fiberhome/YOFC
Highlight:	Plywood 2 Core Ftth Cable , LSZH sheath 2 Core Ftth Cable , Plywood ftth drop wire

Product Description

FIBER OPTIC 1 CORE 2 CORE Plywood Drum FTTH DROP CABLE SINGLE MODE INDOOR FIBER OPTIC CABLE

LSZH Sheath Plywood 2 Core Ftth Cable Outdoor Aerial 0

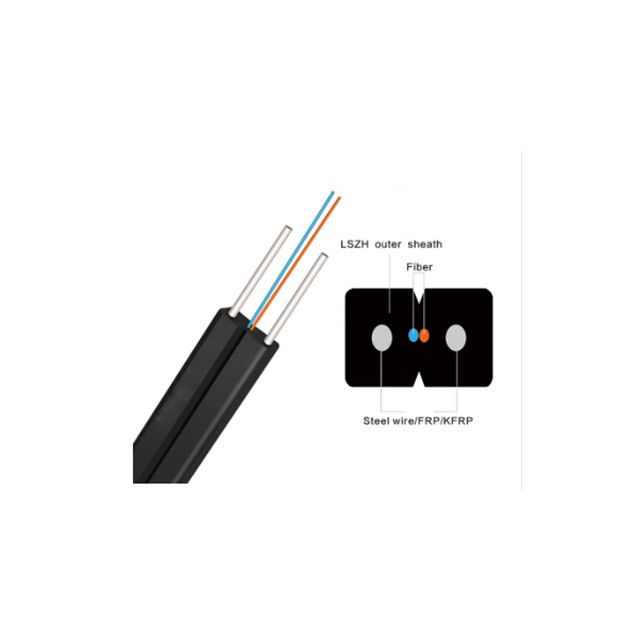

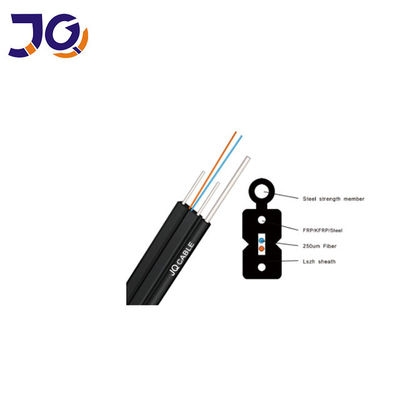

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire. it's completed with black or white LSZH sheath.

Technical parameters: FTTH Drop Cable GJYXCH/GJXH/GJYFXCH

Cable type	OD(mm)	NominalWeight(kg/km)	tensile strength(N)		Crush Resistance(N/100MM)		Bending Radius(mm)
Cable type	OD(mm)	NominalWeight(kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
GJXFH-1Xn	(2.0±0.1)*( 3.0±0.1)	7.5	200	100	1000	500	20D	15D
GJXFH-2Xn	(2.0±0.1)*( 3.0±0.1)	7.5	200	100	1000	500	20D	15D
GJXFH-3Xn	(2.0±0.1)*( 3.0±0.1)	7.5	200	100	1000	500	20D	15D
GJXFH-4Xn	(2.0±0.1)*( 3.0±0.1)	7.5	200	100	1000	500	20D	15D
Storage/Working temperature(℃)			-20~+60

Cable type	OD(mm)	NominalWeight(kg/km)	tensile strength(N)		Crush Resistance(N/100MM)		Bending Radius(mm)
Cable type	OD(mm)	NominalWeight(kg/km)	Short-term	Long-term	Short-term	Long-term	Dynamic	Static
GJYXFCH-1Xn	(2.0±0.1)*( 6.2±0.3)	23.6	600	300	2200	1000	20D	15D
GJYXFCH-2Xn	(2.0±0.1)*( 6.2±0.3)	23.6	600	300	2200	1000	20D	15D
GJYXFCH-3Xn	(2.0±0.1)*( 6.2±0.3)	23.6	600	300	2200	1000	20D	15D
GJYXFCH-4Xn	(2.0±0.1)*( 6.2±0.3)	23.6	600	300	2200	1000	20D	15D
Storage/Working temperature(℃)			-20~+60

Packing:

Certification:

FAQ

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
