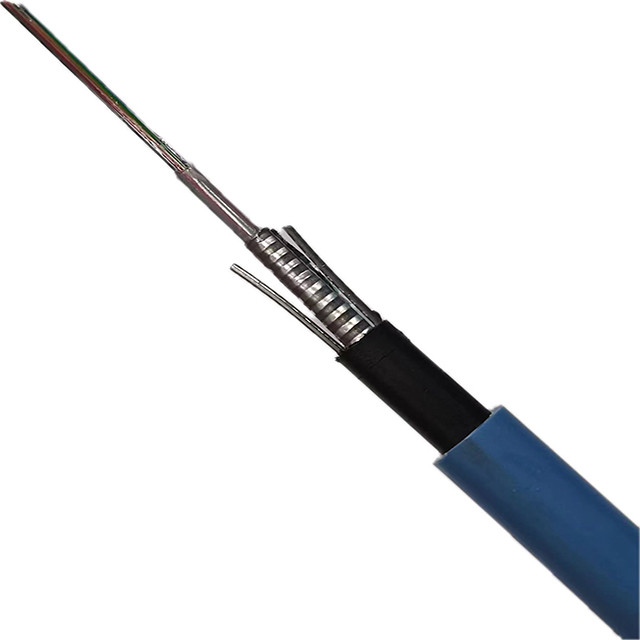

MGXTSV Fire Retardant Anti-rodent LSZH Armored Mining Fibre Optic Cable

Product Description

anti-rodent flame retardant mining fiber cable MGXTSV

Product Description



▶



1.  Mining optical cable MGXTSV is a special application of optical fibre cable in the field of communication, that is, it is a communication optical cable specialised in the coal mining industry. It is an optical cable in coal mines, gold mines, iron ore and other mining occasions.

2.  Mining optical cable MGXTSV not only inherits all the properties of optical fibre cables, but also adds many special properties due to the special requirements of the coal mining industry. The main additional properties are flame retardant characteristics and rat-proof characteristics (special environment of the mine), because coal mines, gold mines, iron ore and other mines are accident-prone areas, in order to ensure In the event of an external occurrence, it is still to ensure smooth communication and reduce losses. The National Security Production Supervision Administration (State Coal Mine Safety Supervision Administration) requires the safety certification of all products used in coal mines, including communication optical cables, that is: safety mark certification of mining products.

3.  Because there are no corresponding standards for others such as gold mines, iron ores, etc., because the comprehensive performance of coal mine optical cables is the standard for mining, and it is also an implementation standard with high requirements in the industry, other mines are generally designed and produced according to the optical cables for coal mines.

4.  There is only one model of communication optical cable certified by safety standard, that is, MGXTSV, and the corresponding requirements are as follows. In fact, the scope of use is: mines, tunnel shafts, lanes, etc.



Features



▶

   1. Good mechanical and temperature performance

    2· High strength loose tube has good performance of water proof and high strength ·

    3.  Special tube filling compound ensure a critical protection of fiber ·Good crush resistance and flexibility ·

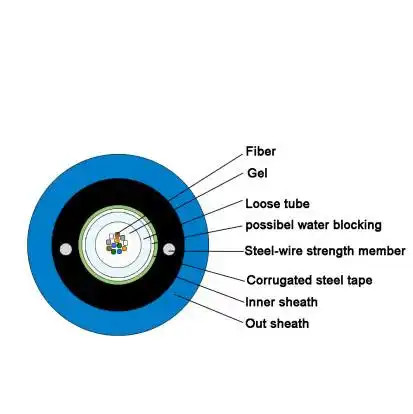

    4. The following measures are taken to ensure the cable watertight:

       a . Steel wire used as the central strength member

       b· Loose tube filling compound ·100% cable core filling

       c.  PSP enhancing moisture-proof and anti-rodent ·

       d   Good water resistance material prevent longitudinal seepage

       e ·Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.



 Applications:



▶

  1. Using microtubule resources, especially for the backbone network, access network and fiber to the home.

  2. Cabling costs are low and suitable for upgrading the old city and building network.

  3.  Standards ·MGXTSV cable complies with Standard MT386-1995 test method and decision rule of the flame retardant of the cable used in coal mine.







Optical Characteristics

Items		Unit	Specification
			G652D
Mode Field Diameter	1310nm	um	9.2±0.4
	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
	1550nm	dBkm	≤0.22

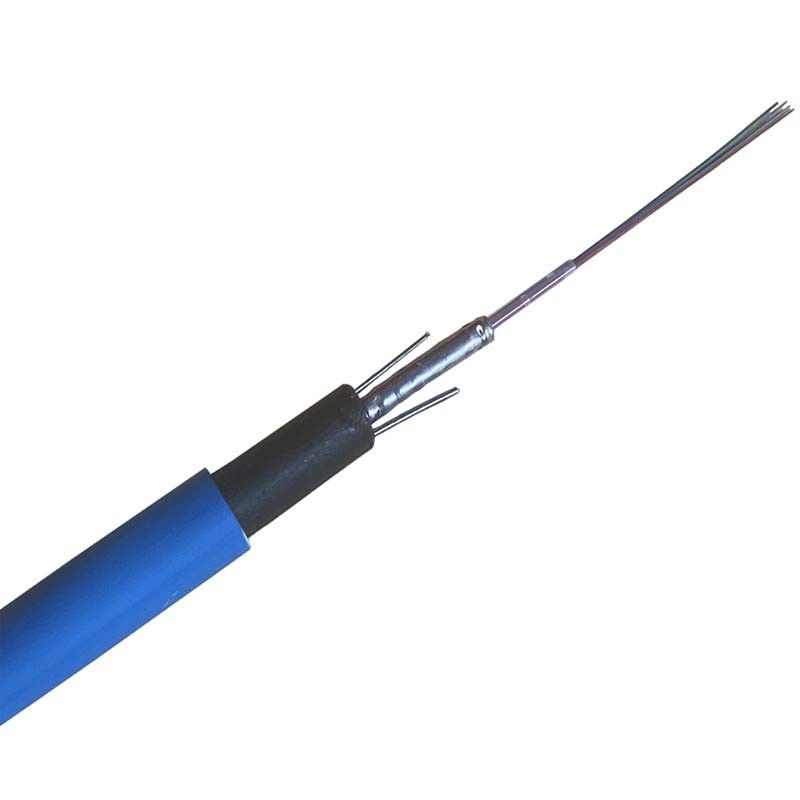

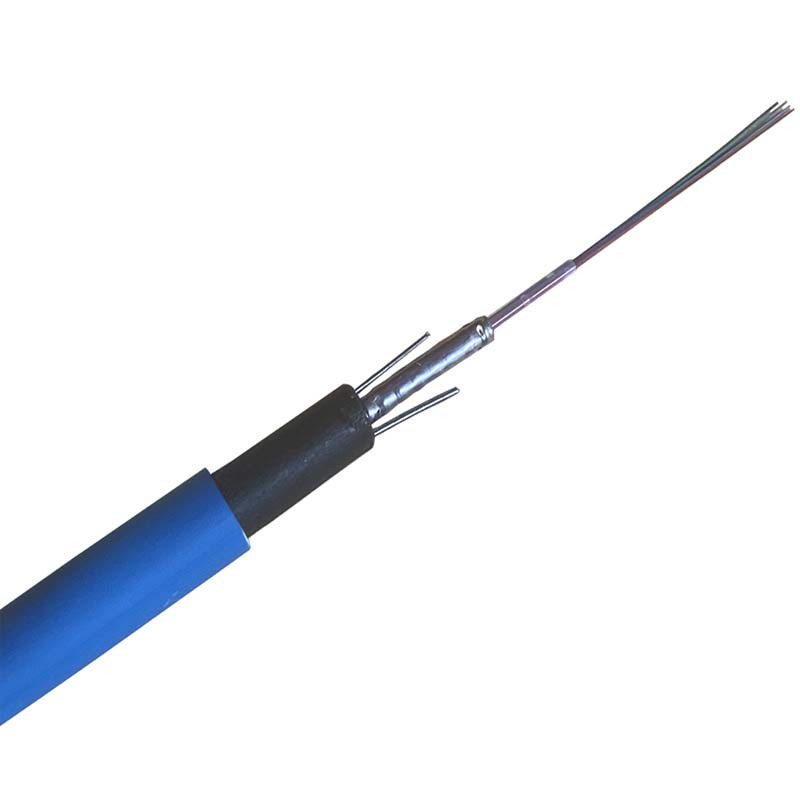

Detail product pictures

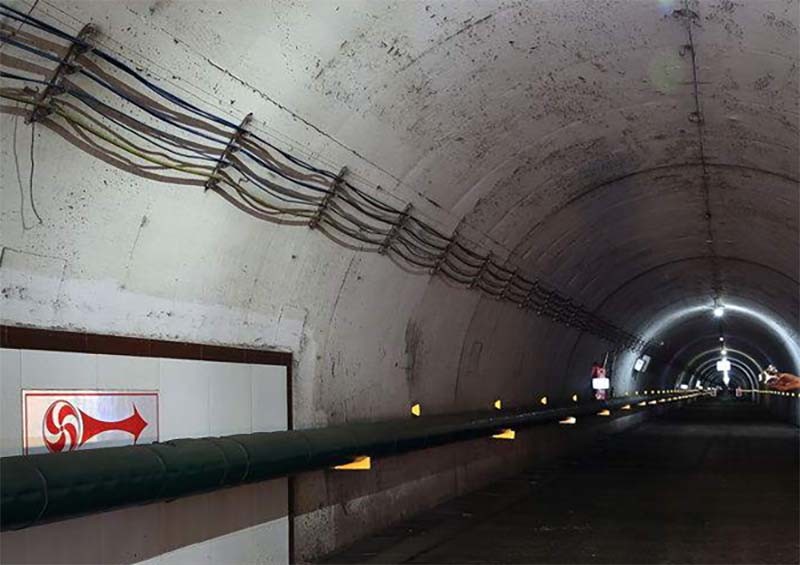

                                                           Mining application

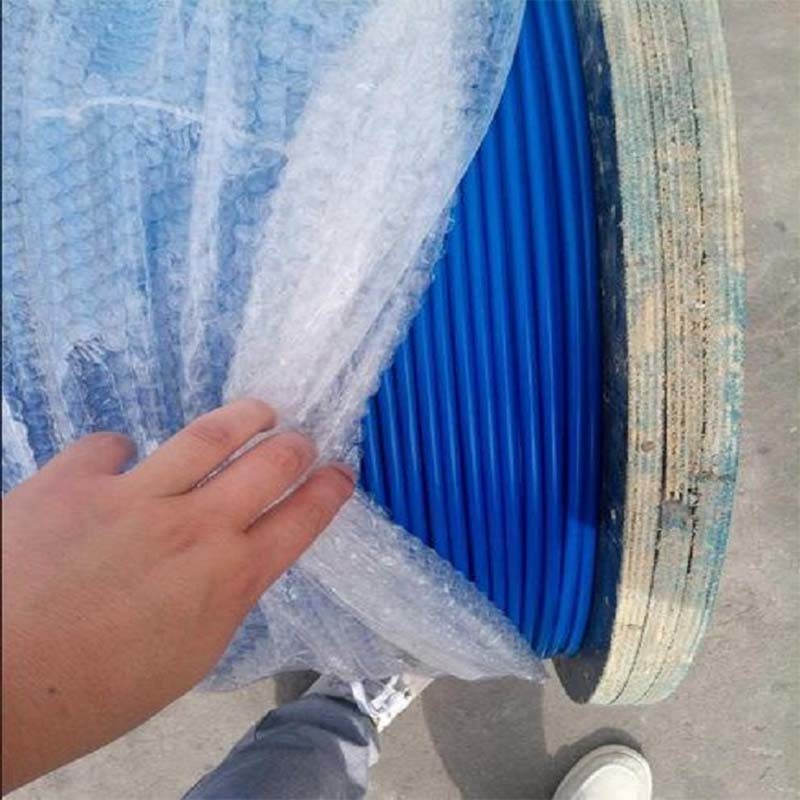

   factory shows
