GYTS 24core Duct Fiber Optic Cable
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553

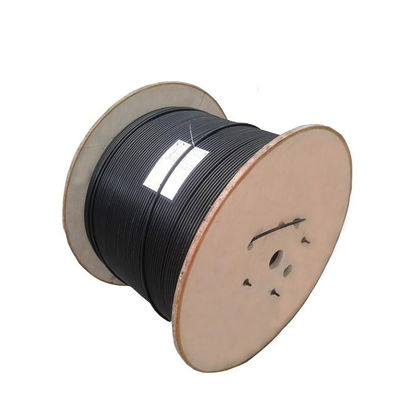

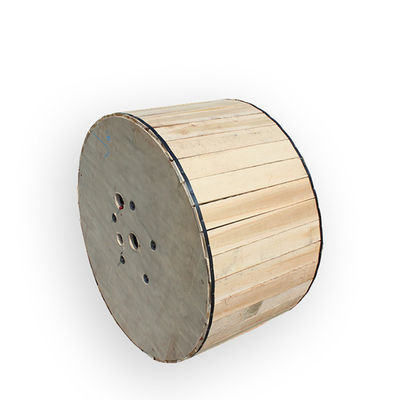

| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 4500KM Per Month |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GYTS-24B1 |
|
Detail Information |
|||
| Fiber Type: | YOFC,Fiberhome,as Request | Color: | Black |
|---|---|---|---|
| Jacket: | PE,MDPE | Strength Member: | Steel Wire |
| Fiber Count: | 2-288 Cores | Installation: | Aerial & Duct |
| Fiber Color: | Blue,Orange,Brown,Aqua,Grey | Armored: | Steel Tape |
| Product Name: | Outdoor Optic Fiber Cable | Application: | Network |
| High Light: | GYTS Duct Fiber Optic Cable,OEM Duct Fiber Optic Cable |
||
Product Description
Product Description

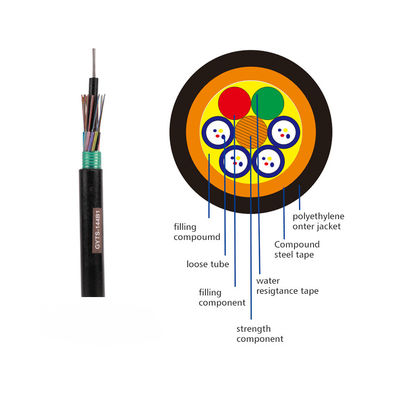

GYTS aerail fiber optic cable, single mode/multimode fibers are positioned in the loose tubes, the 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Which is stranded loose tube fiber optic cable with compact structure, the cable jacket is made of polyethylene, High strength loose tube that is hydrolysis resistant.Cable filling materials ensure high reliability.Tubes and fillers are stranded around the strength member into a circular cable core. An PSP is applier around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.Steel tape makes the cable crush resistant and moisture proof. GYTS has a very good watertight performance.
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Parameters
| Fiber Count |
Diameter (MI) |
Weight (KG/KMI) |
Min.Bend Radius | Mlin.Tension (N) |
Crush (N/100MMl) |
|||
| Static | Dynamic | Long Term | Short Term | Long Term | Short Term | |||
| 2-30 | 9.8 | 95 |
10
|
20
|
1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 | 1500 | 600 | 1000 | 300 | ||
| 38-60 | 10.7 | 115 | 1500 | 600 | 1000 | 300 | ||
| 62-72 | 11.3 | 140 | 1500 | 600 | 1000 | 300 | ||
| 74-96 | 12.9 | 175 | 1500 | 600 | 1000 | 300 | ||
| 98-120 | 14.4 | 210 | 1500 | 600 | 1000 | 300 | ||
| 122-144 | 15.8 | 245 | 1500 | 600 | 1000 | 300 | ||
| 146-216 | 16.3 | 260 | 1500 | 600 | 1000 | 300 | ||
| 218-240 | 19.5 | 345 | 1500 | 600 | 1000 | 300 | ||
| 242-288 | 21.7 | 415 | 1500 | 600 | 1000 | 300 | ||
Application
Suitable for external application in duct and aerial
