Anti-Interference Drone Image Video Transmission Ground Air Modules FPV Device UAV

Product Description

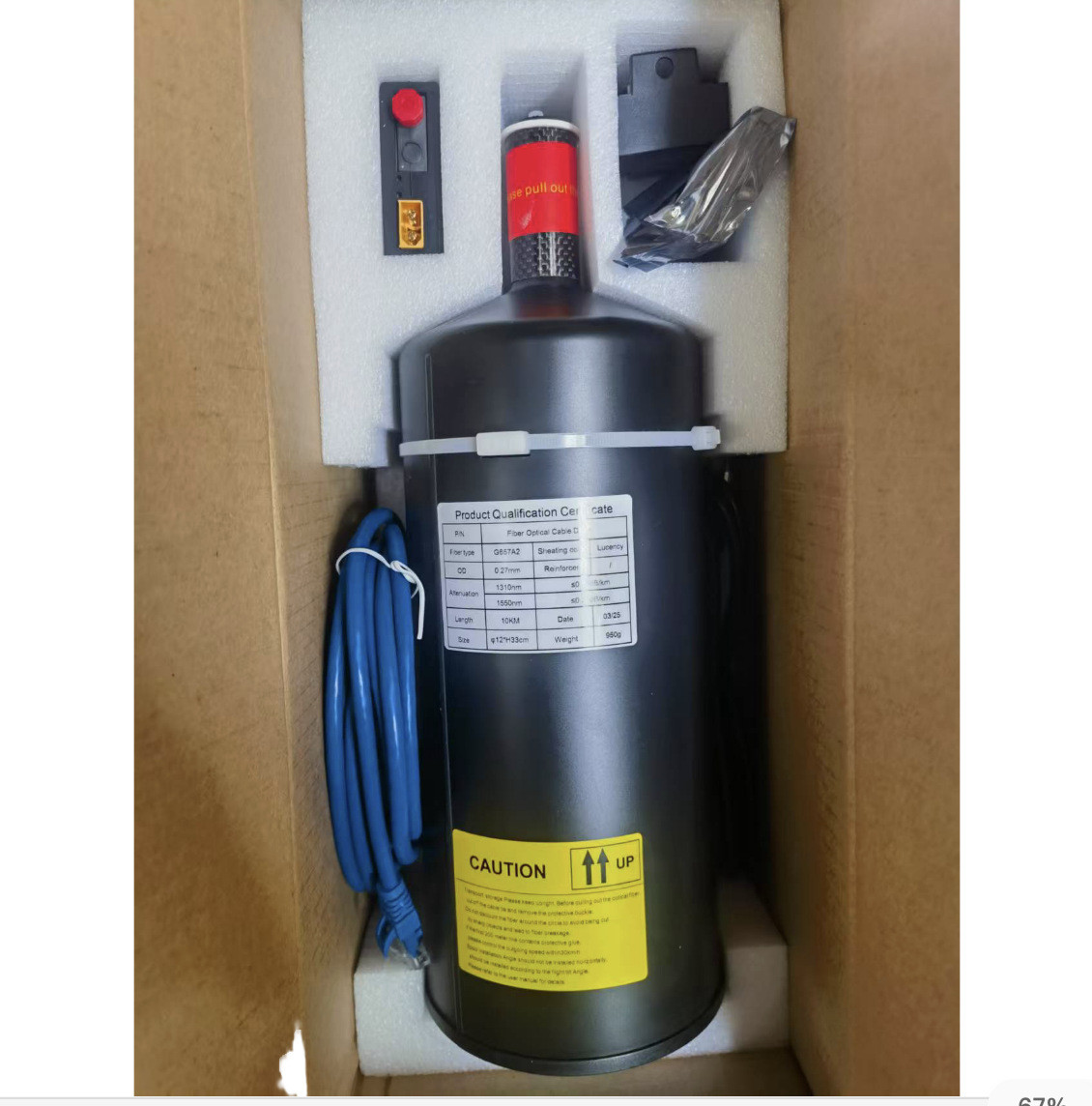

FPV Drones Optical Fiber Drum
(Inner Winding)

Description:
This fiber optic drum is specially designed for FPV drones. It adopts the inner
winding method to effectively reduce the fiber loss and ensure clear transmission
images. At the same time, the new material technology is used to prevent the fiber
from crossing the line and making the line release smooth, which improves the user
experience. It can support fiber signal transmission up to 80km.

Features:
√Compared with the traditional winding method, the inner winding method can
significantly reduce the loss of optical fiber during winding and releasing, and
ensure the stability and efficiency of signal transmission.
√The use of advanced new materials can effectively prevent the fiber from
crossing the line, making the line smooth during use, and avoid signal
interruption or transmission quality degradation caused by poor line release.
√By optimizing the design and material selection, the fiber loss is reduced to an
extremely low level, ensuring that the images taken by the drone can be clearly
and stably transmitted to the ground control end, providing pilots with a high-
quality visual experience.

Application:

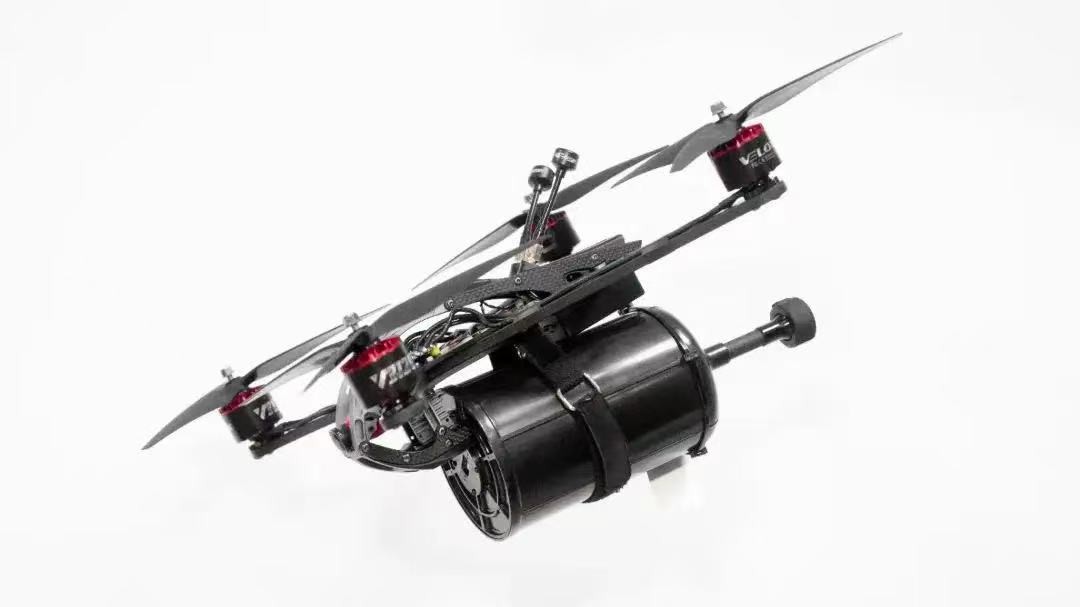

During use the fiber optic drum to the image transmission system of the drone to
achieve real-time transmission of high-definition video signals. When pull out the
fiber, the fiber optic tube will automatically release the optical fiber without manual
intervention.

Tips:
During flight, check whether the fiber output is smooth and make
sure that the fiber cable outlet is away from the propellers.
Avoid rapid deceleration and rapid descent. Avoid small angle
turns when descending. Avoid rapid descent when turning.
These operations may cause the fiber to be cut by propellers
easily.
Avoid winding at small bending angles when the fiber is output.
Flight speed to be controlled within 180km/h.
Before flying, please put FC connector ground module of FC
interface.
When taking off, please pull the fiber out 2-3 meters and use
hands hold it 2-3 meters away, accelerate slowly, avoid too fast
accelerating and turning at small angles during the entire flight.
Otherwise, fiber is easily entangled into propeller.
