Home /Products/Fiber Optic Accessories/2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss

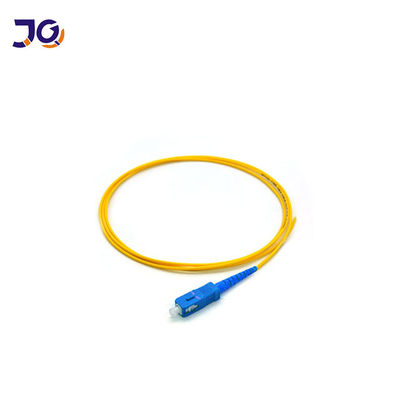

2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss

50 pieces
MOQ
2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Connector Type: SC APC SC UPC
Length: 1/2/3 Or Customized
Product Name: SC/APC Single-Mode 12 Color Fiber Optical Pigtail
Type: 1x8
Fiber Type: Customize
Application: FTTH FTTB FTTX Network
Highlight:

2 core fiber optic pigtail SC UPC

,

single mode fiber pigtail SC APC

,

color coded low loss fiber pigtail
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: 12 Color Fiber Optical Pigtail
Payment & Shipping Terms
Packaging Details: Carton box
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 50000 per month
Product Description

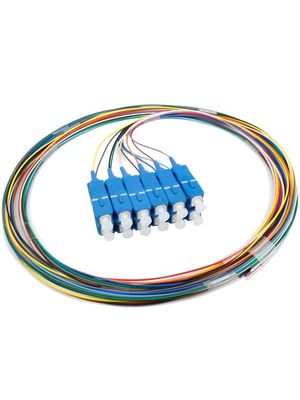

12 Core Pigtails SC/UPC SC/APC Single-Mode 12 Color Fiber Optical Pigtail


Production Description

  • 900µm tight buffer for fast and easy field termination

  • Factory pre polished connector for stable and reliable performance

  • No epoxy adhesive or curing oven required

  • Low insertion loss and high return loss

  • Compatible with SC LC FC ST connectors

Application Scenarios

  • Fiber patch panels and distribution frames

  • Telecom equipment connection

  • FTTH installation and maintenance

  • Data center and enterprise network cabling

Item Specification
Fiber Type Single Mode OS2 9/125µm or Multimode OM1 OM2 OM3 OM4 optional
Core Count 1 Core Simplex
Connector Type SC LC FC ST optional
Polish Type UPC or APC
Cable Diameter 900µm Tight Buffer
Jacket Material PVC or LSZH optional
Insertion Loss ≤ 0.3 dB
Return Loss ≥ 50 dB UPC ≥ 60 dB APC
Cable Length 1m 1.5m 2m or customized
Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +85°C
Application FTTH ODF Patch Panel Telecom Data Center
Standard IEC Telcordia GR 326 RoHS compliant

2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss 0

2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss 1

Package detail

1Box packing, Outside carton box

2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss 2

2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss 3

2 Bag packing, Outside carton box

2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss 4

Testing

2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss 5

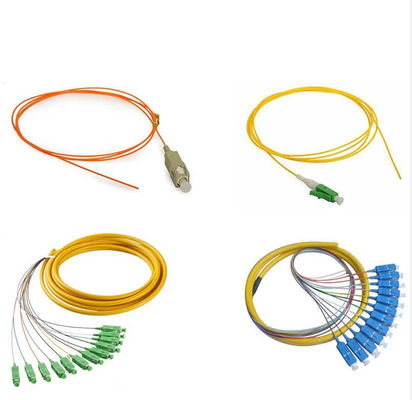

More products

2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss 6



2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss 7

2 Core Single Mode Fiber Optic Pigtail SC UPC SC APC 12 Color Coded Low Loss 8



FAQ – 900µm Fiber Optic Pigtail

1. What fiber types are available?
Single Mode OS2 9/125µm and Multimode OM1 OM2 OM3 OM4 are available.



2. Which connectors can be selected?
SC, LC, FC and ST connectors are optional with UPC or APC polish types.



3. What is the typical insertion loss?
Insertion loss is ≤ 0.3 dB with high return loss performance.



4. Do you support customized length?
Yes, standard lengths such as 1m 1.5m 2m are available, and custom lengths are supported.



5. What jacket types are available?
PVC and LSZH jackets are available for different installation environments.



6. Do you provide OEM service?
Yes, we support OEM service including custom labeling and packaging.

  •

Tag:

Fiber Optic PLC Splitter

FFS-80S fiber optic cable splicing machine

FFS-80S Fiber Optic Fusion Splicer
