OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1km | Price : | 99 |
|---|---|---|---|
| Packaging Details : | Plywood drum | Delivery Time : | 3-5 days,it depends on order quantity |
| Payment Terms : | L/C, T/T, Western Union,Alipay | Supply Ability : | 4500 per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | FCC/ROHS/ISO9001/CE | Model Number: | Mini ADSS/ASU80 |
|
Detail Information |
|||
| High Light: | Gyta53 Fiber Optic Cable,96 Core Fiber Optic Cable,Double Sheath Fiber Optic Cable |
||
|---|---|---|---|
Product Description

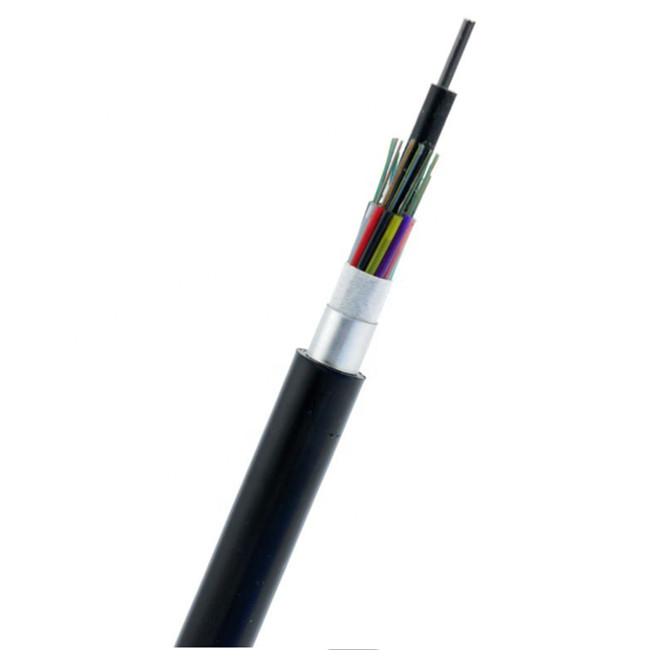

Direct buried Single Mode Gyta53 4 24 48 96 144 core Double Sheath Outdoor Fiber Optic Cable
--- Low dispersion and attenuation
--- Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
--- The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
--- With small cable diameter, light cable weight, self-supporting
Features
--- single PBT Loose tube, filling jelly, (around strength steel wire members), corrugated steel tape, PE outer sheath
--- Compact structure, light weight, steel tape armored excellent crush resisitant performance
--- Excellent water proof layer, good moisture resistance
--- Suitable for direct burial
--- Apply to Long distance communication system, Local aera network system and Subscriber network system
Cable Parameters:
| Item | Parameters | |
| Fiber Count | 12 | |
| Water blocking material | Water block yarn | |
| Span | 100m | |
| Colored coated fiber | Dimension | 250µm±15µm |
| Color | Blue,Yellow,Green,Red,Violet,White ,Blown, Pink, Black, Gray, Orange, Aqua | |
| Loose tube | Diameter | 2.3mm±0.1mm |
| Material | PBT | |
| Color | blue | |
|
Filling compound in loose tube
|
Gel | |
| Strength Member | FRP | 2.0mm |
| Armoured | Non-armoured | |
|
Outer sheath
|
Material | PE |
| 8.0mm | ||
Fiber Optic G652D:
| Item | Unit | Specification | |
| Fiber Type | G.652D | ||
| Mode field diameter | 1310nm | mm | 9.2±0.4 |
| 1550nm | mm | 10.4±0.8 | |
| Cladding diameter | mm | 125.0±1 | |
| Cladding non-circularity | % | £1.0 | |
| Core/cladding concentricity error | mm | £0.5 | |
| Coating diameter | mm | 245±5 | |
| Coating non-Circularity | % | £6.0 | |
| Coating/cladding concentricity error | mm | £12.0 | |
| Cable cut-off wavelength | nm | £1260 | |
| Attenuation Coefficient | 1310nm | dB/km | £0.36 |
| 1550nm | dB/km | £0.22 | |
| Proof stress level | kpsi | ≥100 | |
Packing&Delivery:
2km/3km/4km per wooden drum or customized
Port:Shenzhen/Guangzhou
Lead time:
| Quantity(km) | 100-200 | >200 |
| Est time(day) | 3-5 days | negotiable |
FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China
2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight
3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.
4.What is your warranty period?
25 years for fiber optic cable
5.Which kind of certification you have ?
ISO9001-2000
6.What is your delivery time?
Usually within 3-5 working days
7.What is your fiber brand?
Corning,YOFC ,Fiberhome
8.What is your payment way?
T/T, L/C, Western Union and Paypal.
9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements
