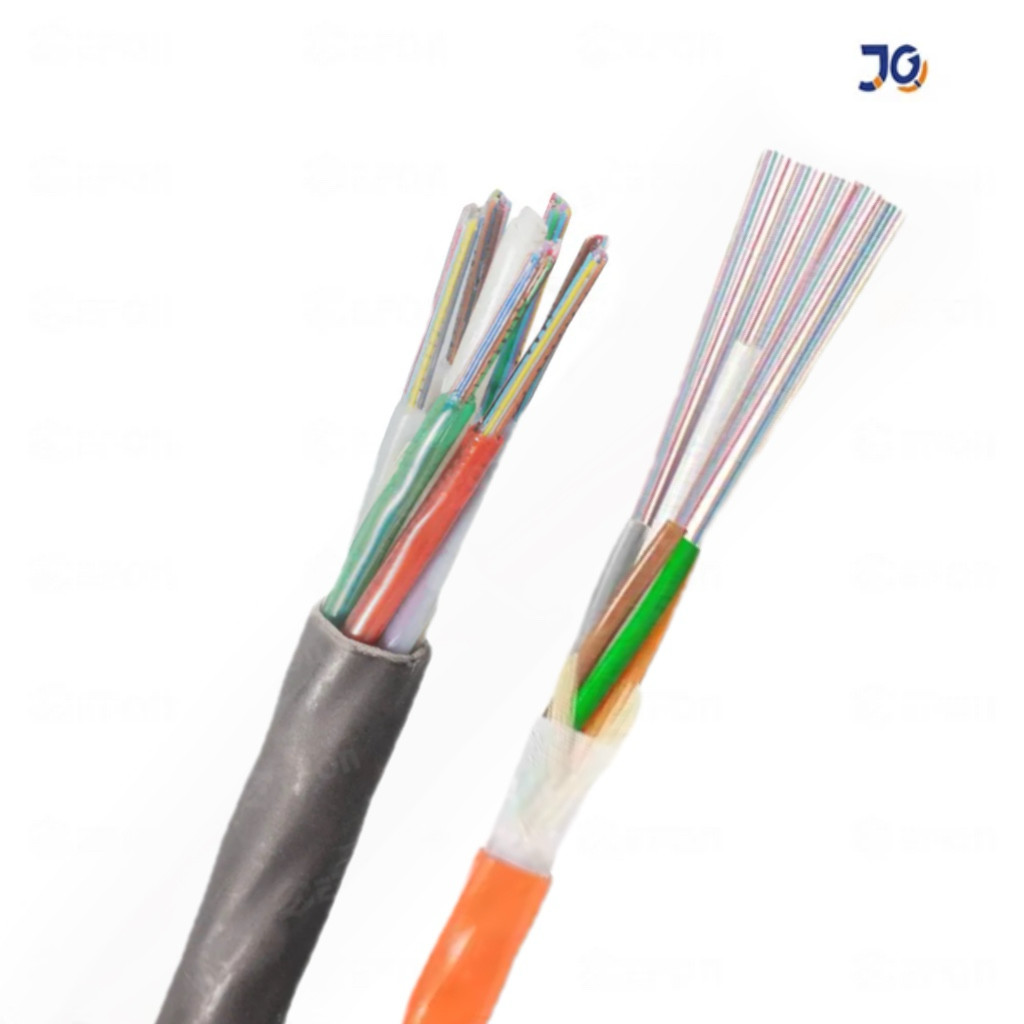

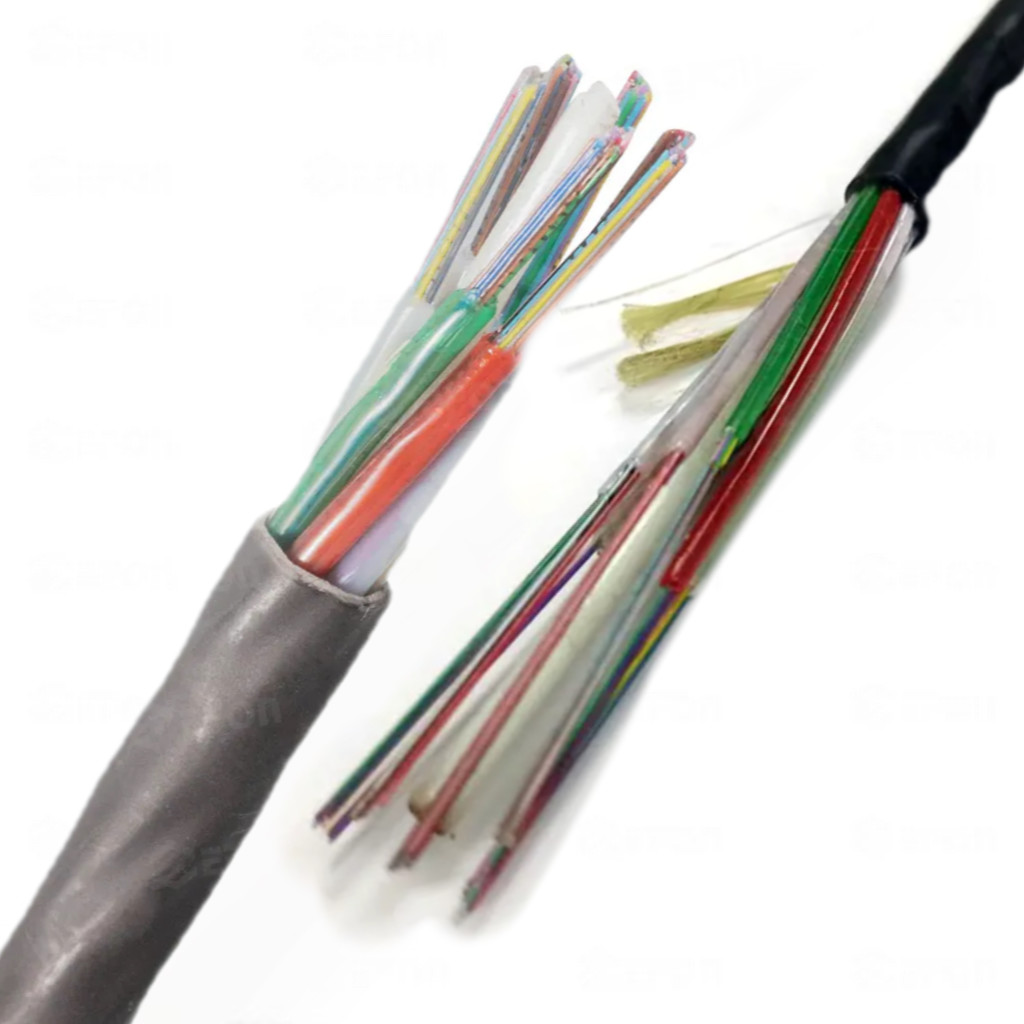

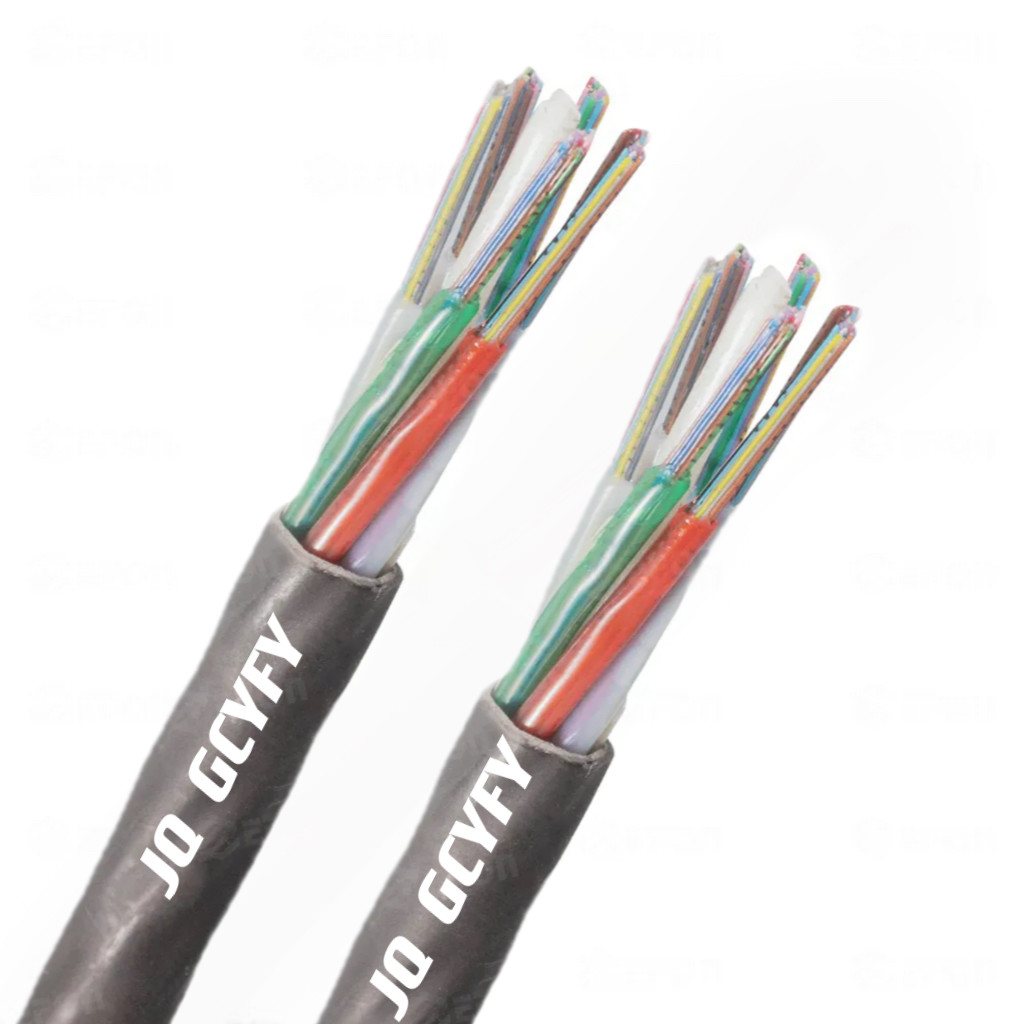

OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GCYFY |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Jacket: | PE,MDPE,LSZH,PVC |
| Package: | Wooden Drum/Customized | Application: | Duct,Air Blowing |
| Oem: | Available | Central Strength Member: | FRP |
| Structure: | Multi-strand | ||
| High Light: | single mode Fiber Optical Cable,2-144Cores Fiber Optical Cable |
||
Product Description
Product Description:

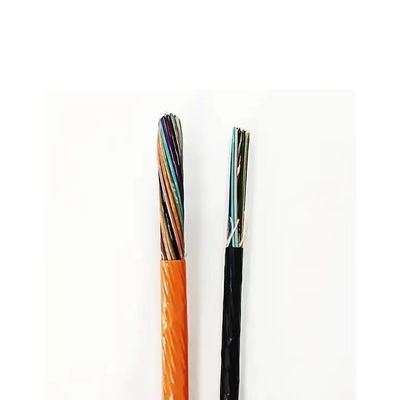

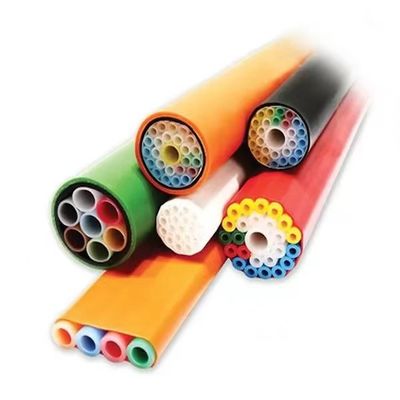

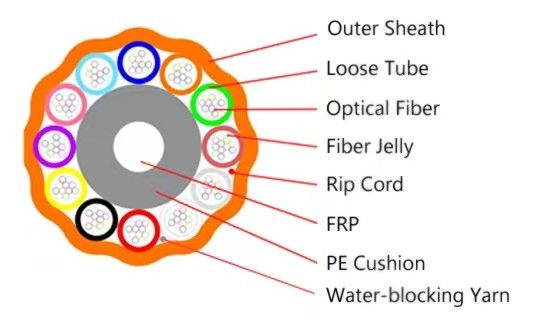

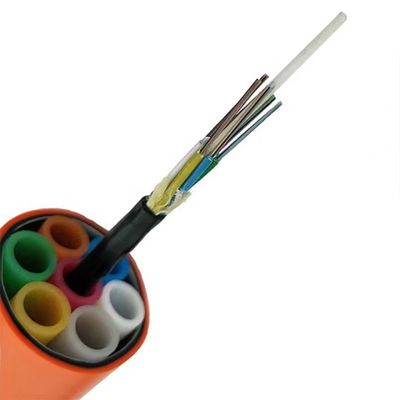

GCYFY loose layer stranded air-blown micro-cable adopts non-metal reinforcement and non-armored structure, which can be drawn or air-blown micro-pipe in the laid external protection pipe, and then laid in the micro-pipe air-blown micro-cable, breaking the limitations of the existing pipeline cable laying technology, improving the utilization efficiency of the pipeline, and easy to expand.
Features:
1.Using centre tube design less than 24f to get more compact structure.
2.Small outer diameter, light weight , low friction sheath material.
3.Accurate excess fibre length control to get stable cable performance.
4.Stable temperature cycling performance by special process control.
5.High speed, long distance air-blowing , efficient installation.
6.Optional LSZH outer sheathing, applicable for access to indoor.
7.Optional 200μm mini optical fibre to get smaller outer diameter.
Application:
■ voice or data communication backbone.
■ Installed in duct, underground conduit .
Specification:
| item | value |
| Model Number | GCYFY |
| Product name | GCYFY air blowing cable |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |

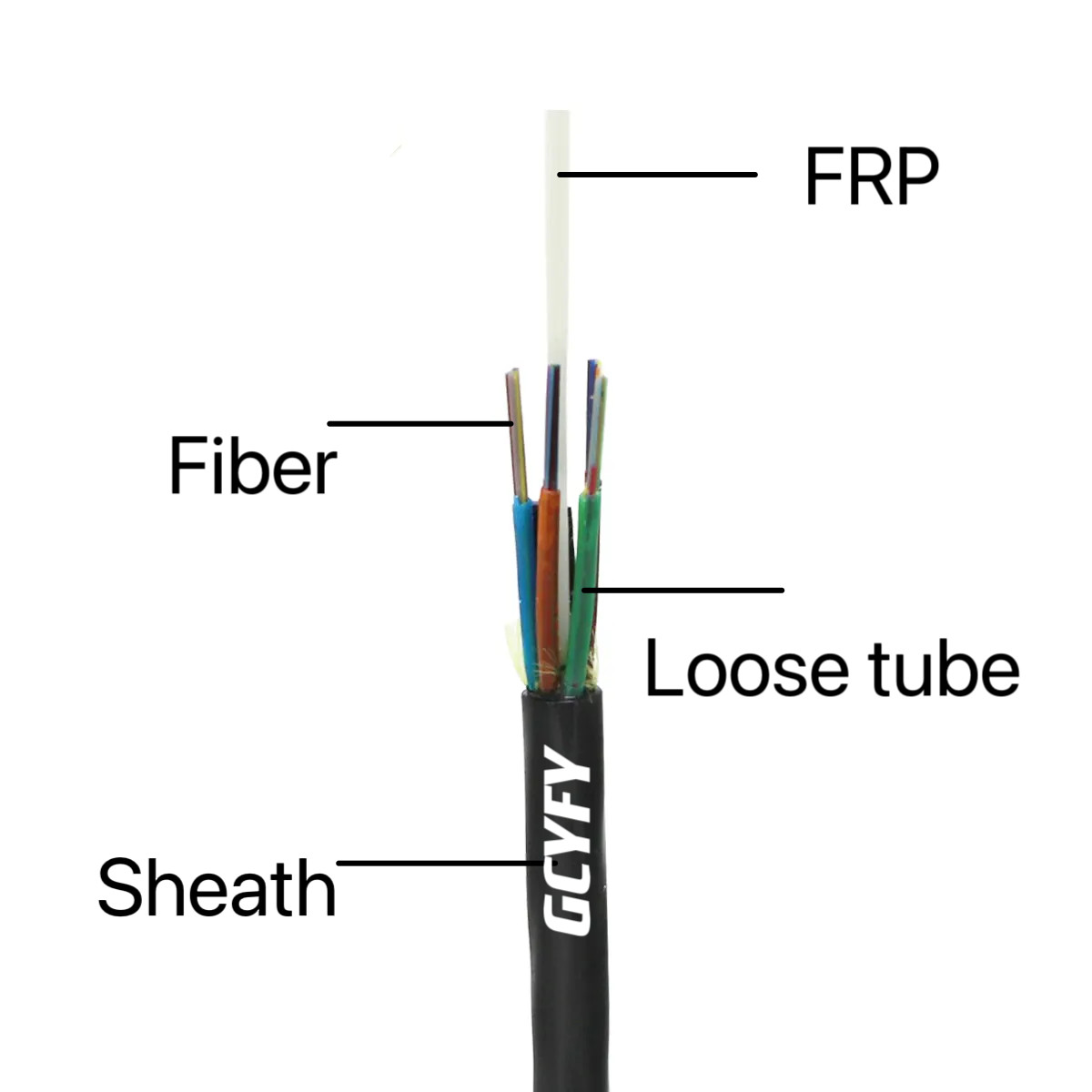

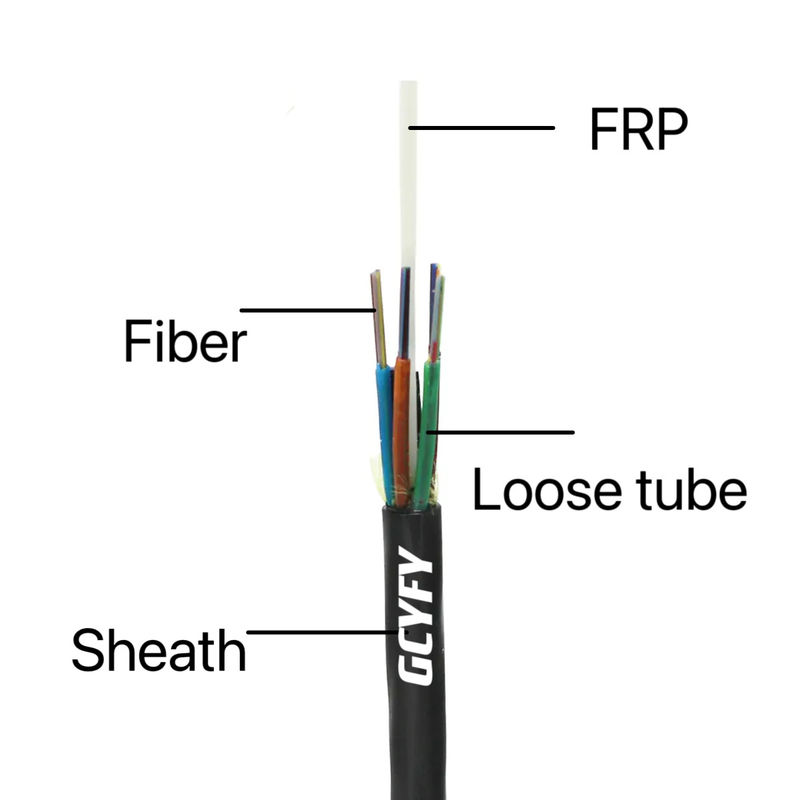

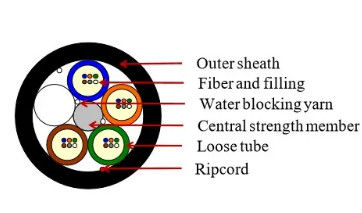

| Cable Structure | Multi-strand |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Loose tube material | PBT |
| Jacket Sheath | LSZH/PVC/PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Properties | anti-thunder and anti-static performances |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Life span | >30 years |
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
