OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GCYFXTY |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Jacket: | PE,MDPE,LSZH,PVC |
| Package: | Wooden Drum/Customized | Application: | Duct,Air Blowing |
| Oem: | Available | Central Strength Member: | FRP |
| Tube: | Central Loose Tube | ||
| High Light: | air blown fiber optic cable,micro duct fiber optic cable,single mode fiber optic cable |
||
Product Description
Product Description:

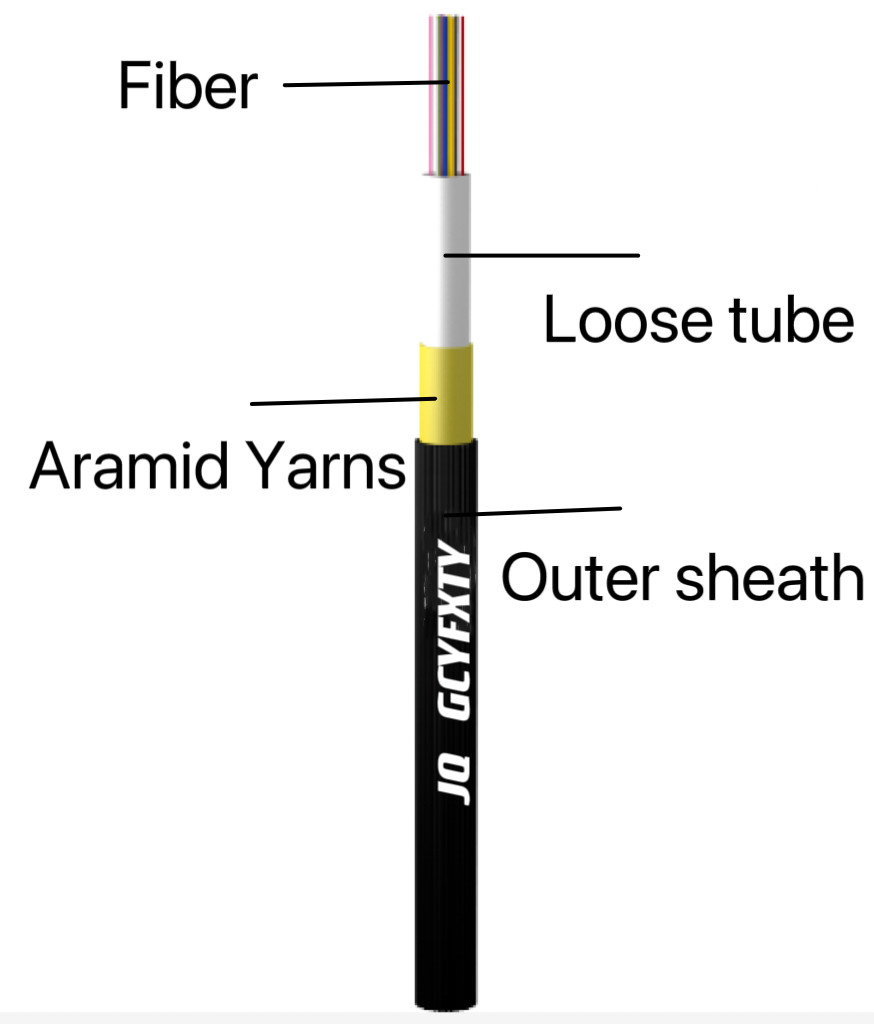

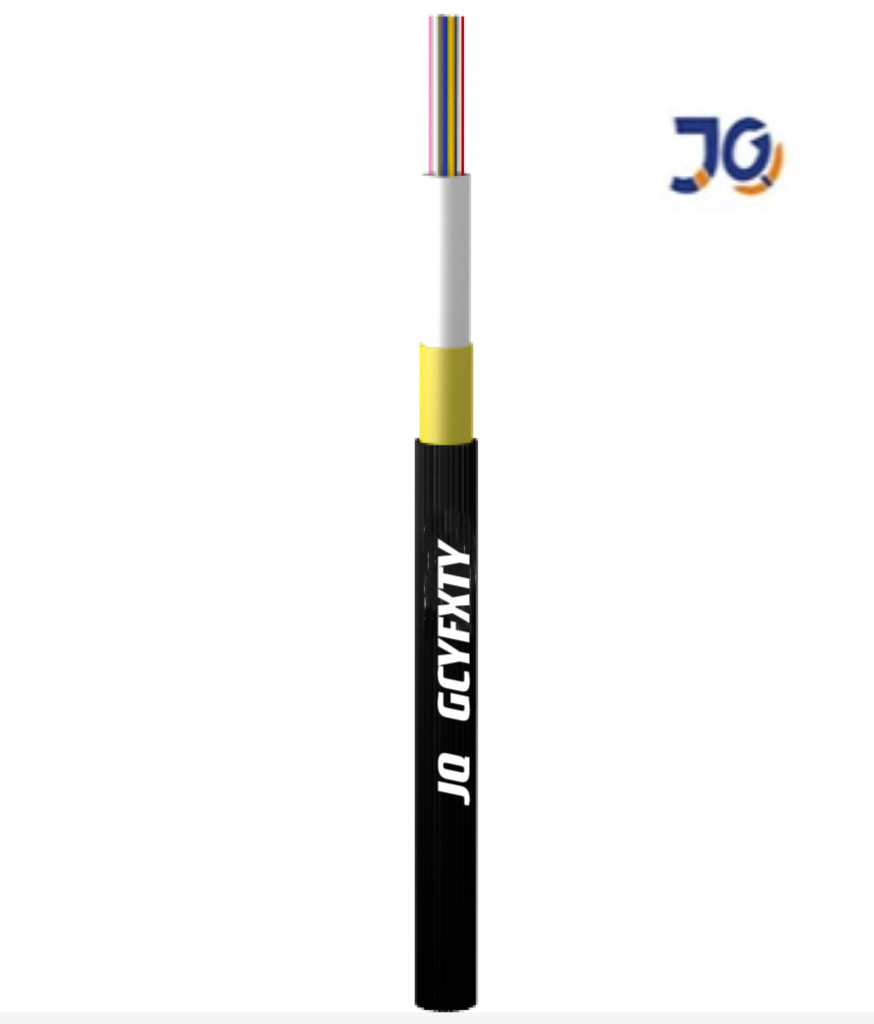

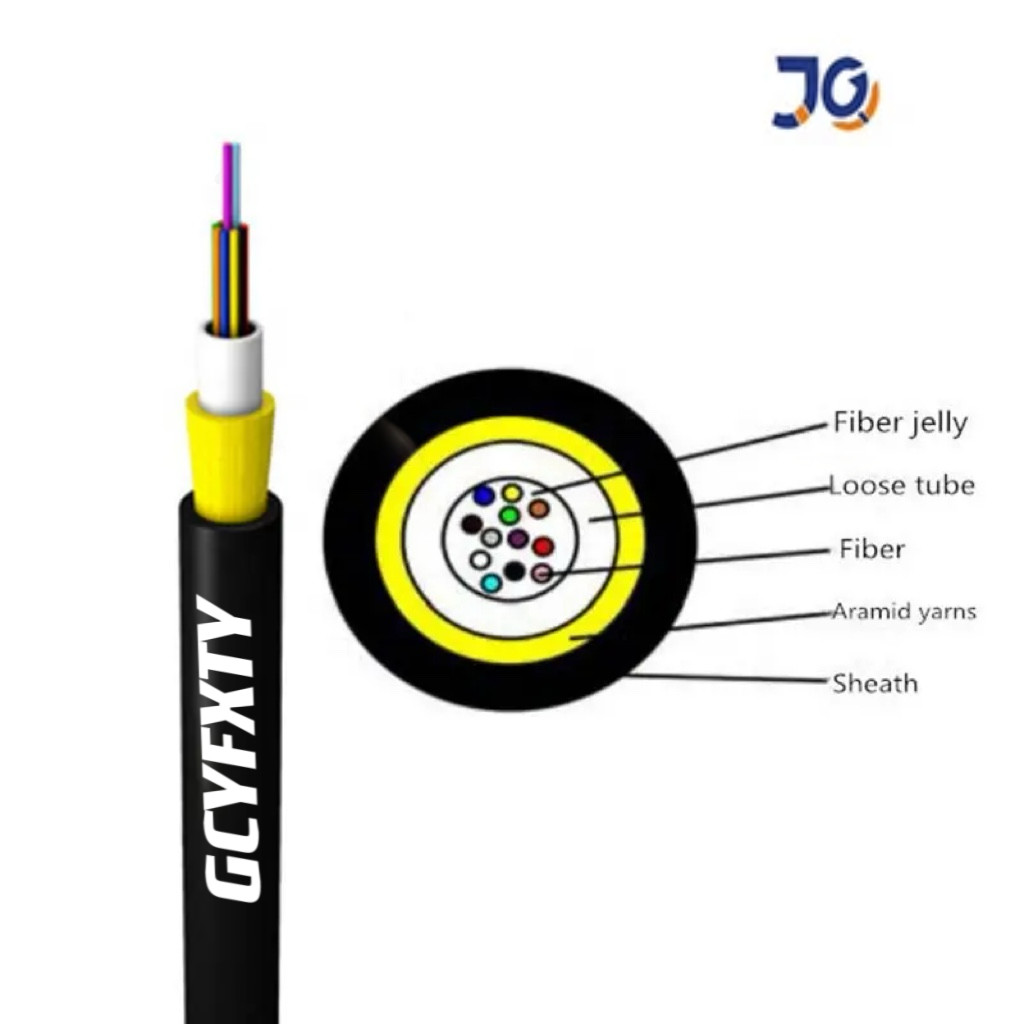

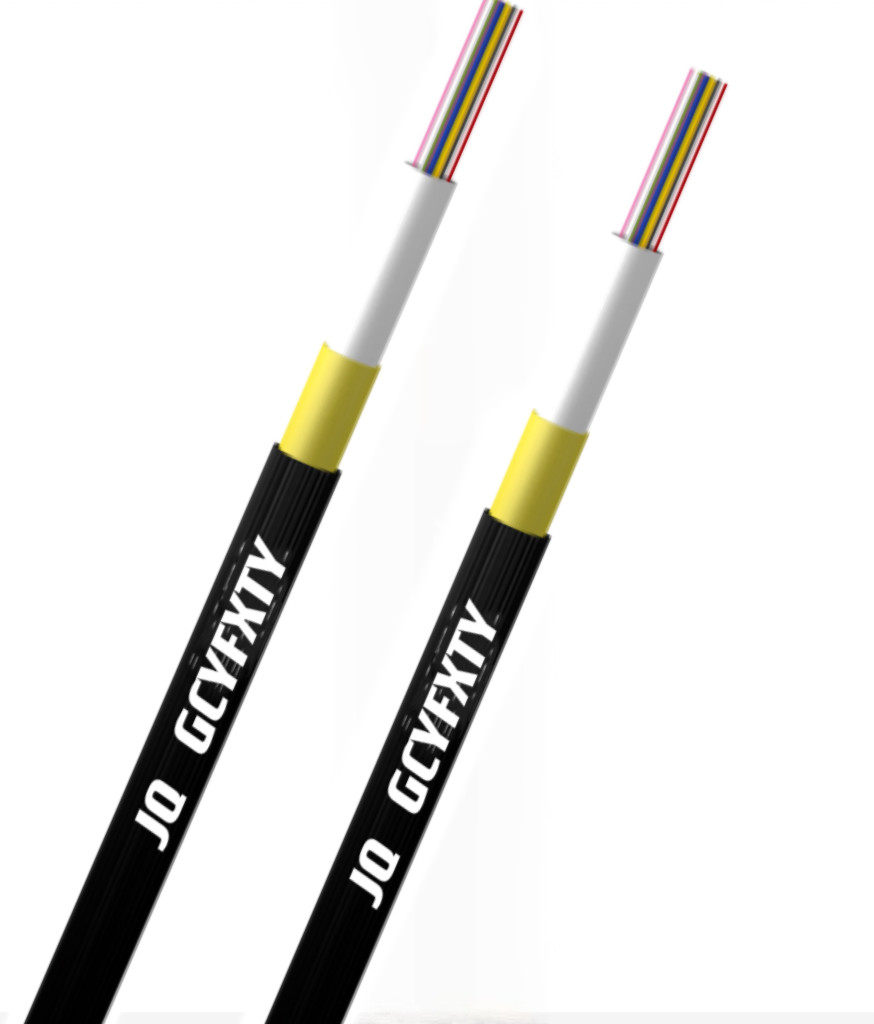

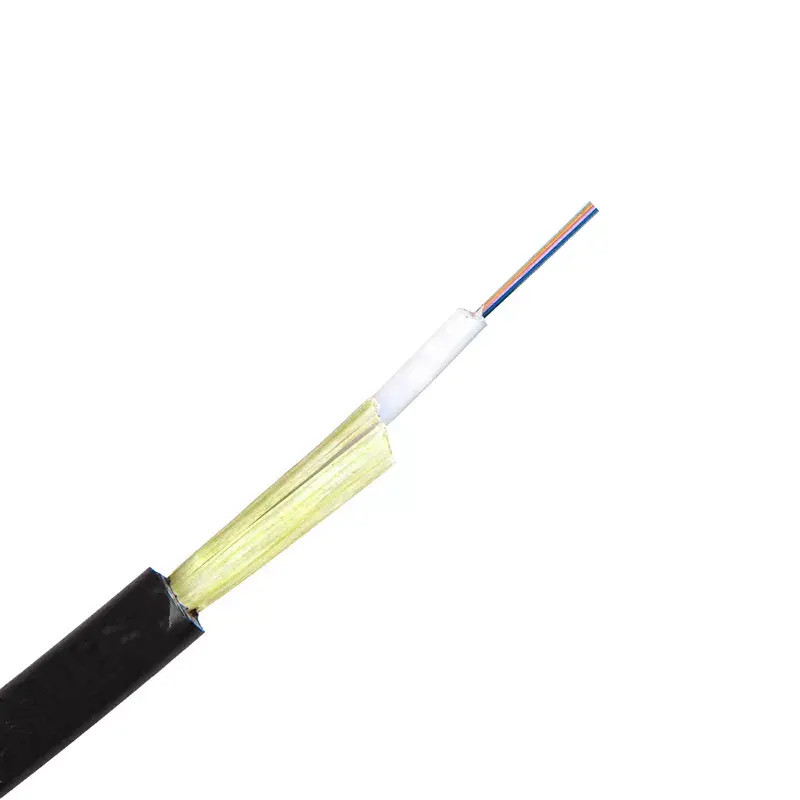

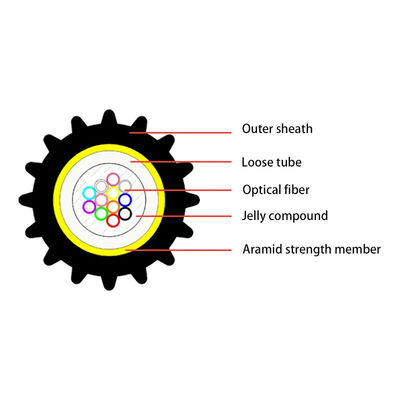

GCYFXTY Air Blown Cable is a loose tube made of a high modulus material with a 250µm single-mode or multi-mode fiber. The tube is filled with a non-toxic and harmless waterproof compound, and the loose tube is twisted with a non-metallic reinforcing element. Then extruded black or colored high-density polyethylene (HDPE) sheath into cable. As a professional fiber optic manufacturer, we have different types of optical fibre for our customers.
Features:
■Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
■Non-metal design can prevent the cable from radio interference and magnetic wave interference
■Strong PBT loose tube for hydrolysis resistant
■Critical protection to fibers.
■Excellent crush resistance and flexibility.
■Loose tube is filled with special grease ensuring good moisture resistance performance.
■High dense fiber packed,small diameter and light weight for betterblowing installation progress.
■Reinforced by aramid yarn, it has excellent tensile properties.
Application:
■Micro duct air blown installation FTTX.
Specification:
| item | value |
| Model Number | GCYFXTY |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangzhou,China |
| Product name | GCYFXTY unitube Air blown fiber optic cable |
| Brand Name | Haiso/jiqian |
| Number of Conductors | ≥ 10 |
| Fiber type | G652.D |
| Fiber | single mode |
| Tube | Central loose tube |
| Loose tube Material | PBT |
| Armored or not | Non-armoure, aramid yarn strength member |
| Outsheath | PE,LSZH. |
| Color | Customized |
| Feature | small diameter,light weight |
| Keyword | Air blown |
| Package | Fumigation free wooden drum/Customized |
| Operating/Storage Temperature | - 40 ~ 70 ℃ |
| Application | micro duct air blow |
| Certificate | CE/ROHS/ISO9001 |
Optical Characteristics:
| G.655 | 50/125μm | 62.5/125μm | ||
| G.652 | ||||
| Attenuation | '@850nm | ≤3.0 dB/km | ||
| (+20℃) | '@1300nm | ≤1.0 dB/km | ||
| '@1310nm | ≤0.34 dB/km | ≤0.40 dB/km | ||
| '@1550nm | ≤0.21 dB/km | ≤0.23 dB/km | ||
| '@850nm | ≥500 MHz·km | |||
| '@1300nm | ≥1000 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | |||
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
