OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYFTZY63 |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Loose Tube: | PBT |
| Jacket: | LSZH | Central Strength Member: | FRP |
| Package: | Wooden Drum/Customized | Application: | Direct Buried/Duct/Aerial |
| Oem: | Available | Cable Structure: | Multi-Loose Tube None Armor |
| High Light: | Flame Retardant Fiber Optical Cable,Directly Buried Fiber Optical Cable |
||
Product Description
Product Description:
GYFTZY63 (non-metallic strengthening member, loose tube stranded and filled, polyethylene sheathed outdoor optical fiber cable for communication)

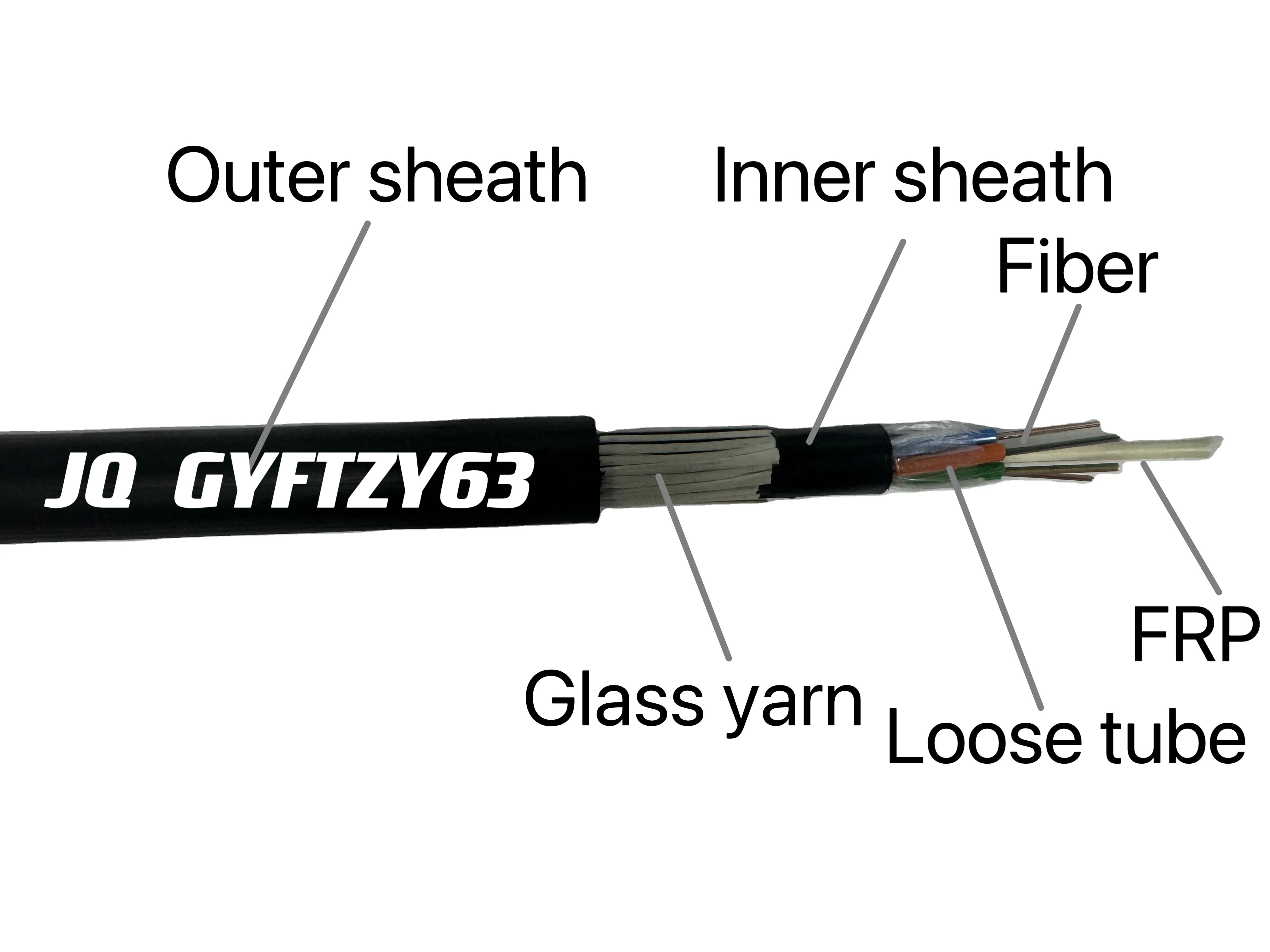

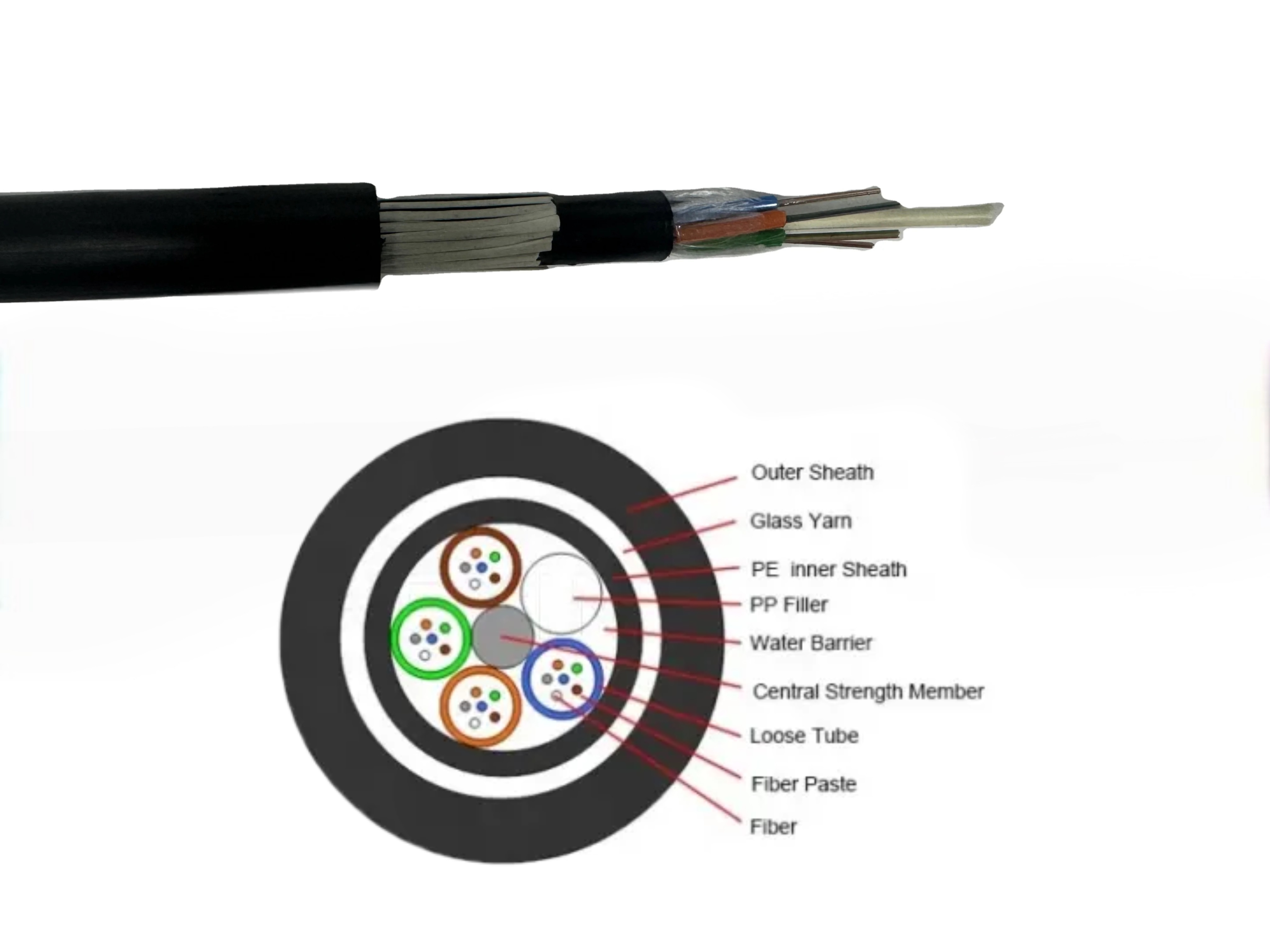

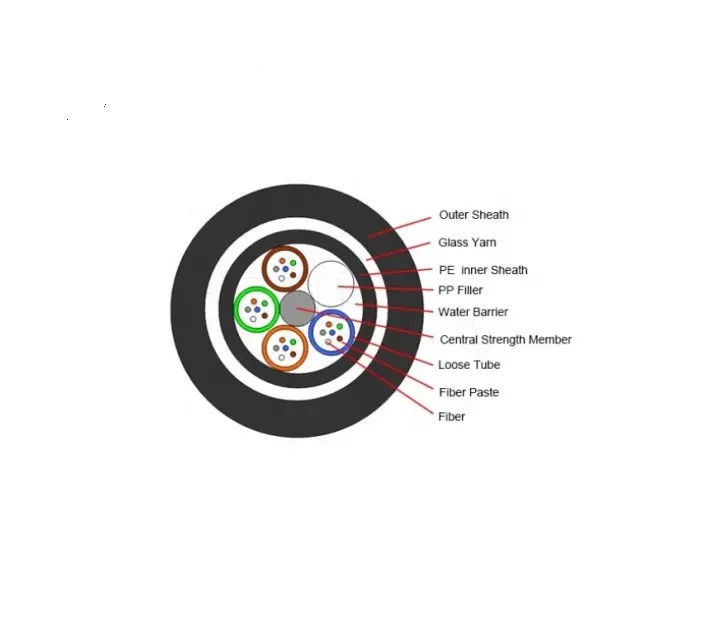

The structure of the optical cable is to sheath a single-mode or multi-mode optical fiber into a high-modules plastic filled with waterproof compound loose In the casing. The center of the cable core is a non-metallic reinforced core (FRP). For certain fiber optic cables, a layer of polyethylene (PE) is extruded outside the non-metallic reinforced core or a non-metallic reinforced yarn is added to the cable core line. The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular cable core. The gaps in the cable core are filled with water blocking compoundsand polyethylene sheaths.
Characteristics:
1. Non-metal reinforcement and layer design ensure that the cable has good mechanical and temperature characteristics.
2. The casing is filled with buffer grease to protect the optical fiber and waterproof.
3. High-strength non-metallic reinforcement and glass yarn bear axial load.
4. The cable core filled with water blocking ointment can effectively waterproof.
5. It can effectively prevent rats from breaking the cable.
Application:
– Laying modes: Aerial & Duct
– Electromagnetic interfering places
– Outdoor distribution
– Access network and local network
| item | value |
| Model Number | GYFTZY63 |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Cable Structure | Multi-Loose Tube None Armor |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-144 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Armored | Non-armored |
| Jacket Sheath | LSZH |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
| Attenuation | @850nm | ≤3.0dB/km | ≤3.3dB/km | ||
| (+20℃) | @1300nm | ≤1.0dB/km | ≤1.0dB/km | ||
| @1310nm | ≤0.34dB/km | ≤0.40dB/km | |||
| @1550nm | ≤0.21dB/km | ≤0.23dB/km | |||
| Bandwidth | @850nm | ≥500MHZ·km | ≥200MHZ·km | ||
| @1300nm | ≥500MHZ·km | ≥500MHZ·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off | ≤1260nm | ≤1450nm | |||
| Wavelength λcc |
| cable countr | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum | Min bending radius(MM) | |||
| (MM) | (KG) | allowable Crush load(N/100mm) | ||||||
| Short term | Long term | Short term | long Term | short term | long Term | |||
| 2-36 | 12.8 | 170 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 38-72 | 14.2 | 212 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 74-96 | 15.7 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 98-120 | 17.3 | 289 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 122-144 | 18.8 | 328 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
