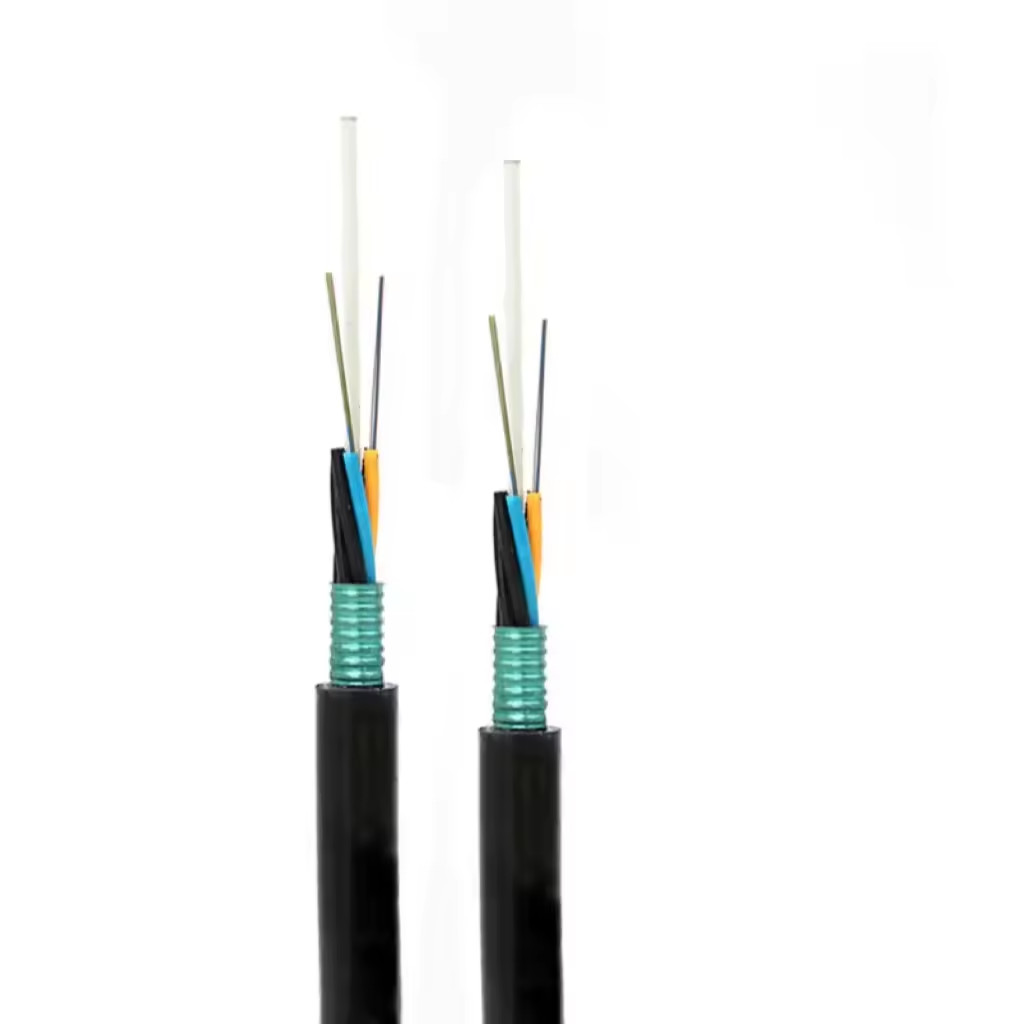

OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYFTS |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Loose Tube: | PBT |
| Central Strength Member: | FRP | Cable Structure: | Multi-Loose TubeSteel Tape Armor |
| Armoured: | Steel Tape Armoured | Jacket: | PE Or As Your Request |
| Package: | Wooden Drum/Customized | Application: | Outdoor Aerial And Duct |
| Oem: | Available | ||
| High Light: | FRP Strength Member Fiber Optic Cable,outdoor stranded Fiber Optic Cable,single mode Fiber Optic Cable |
||
Product Description
Product Description:

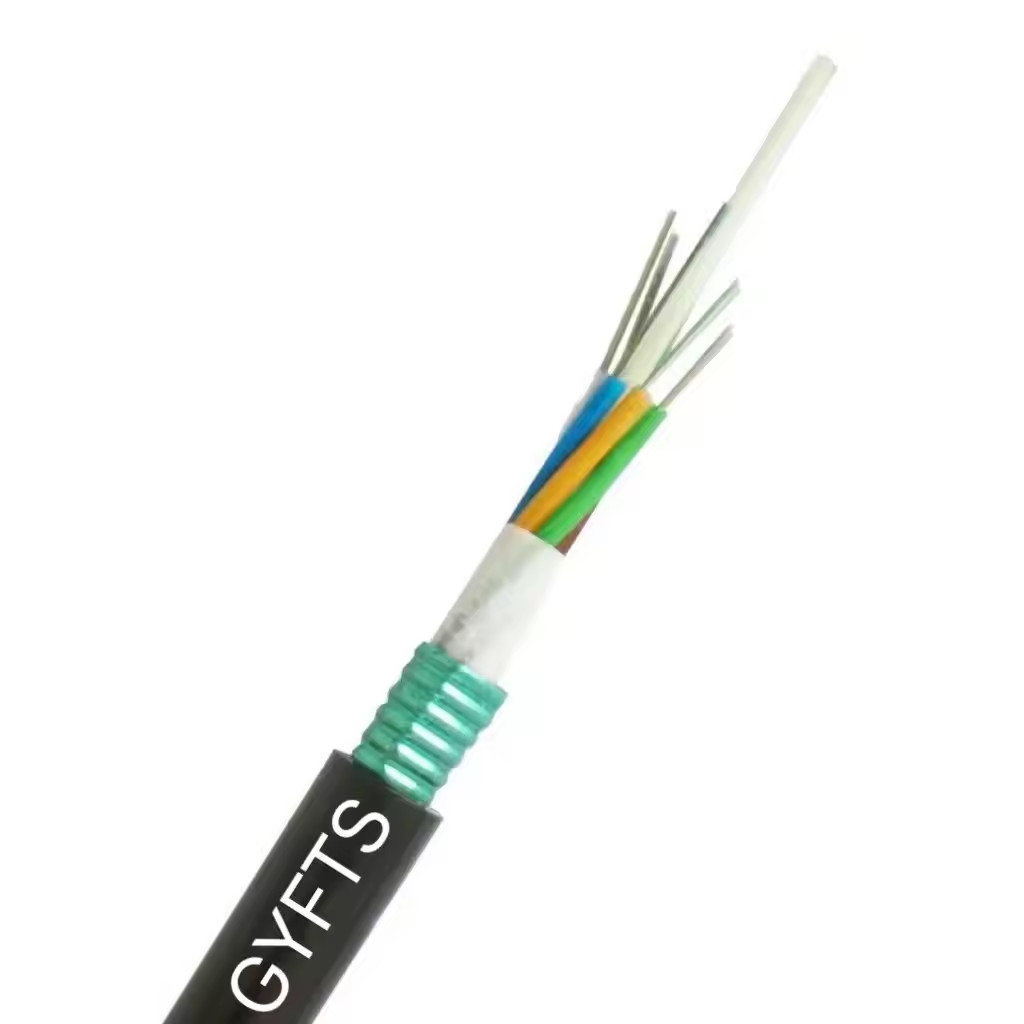

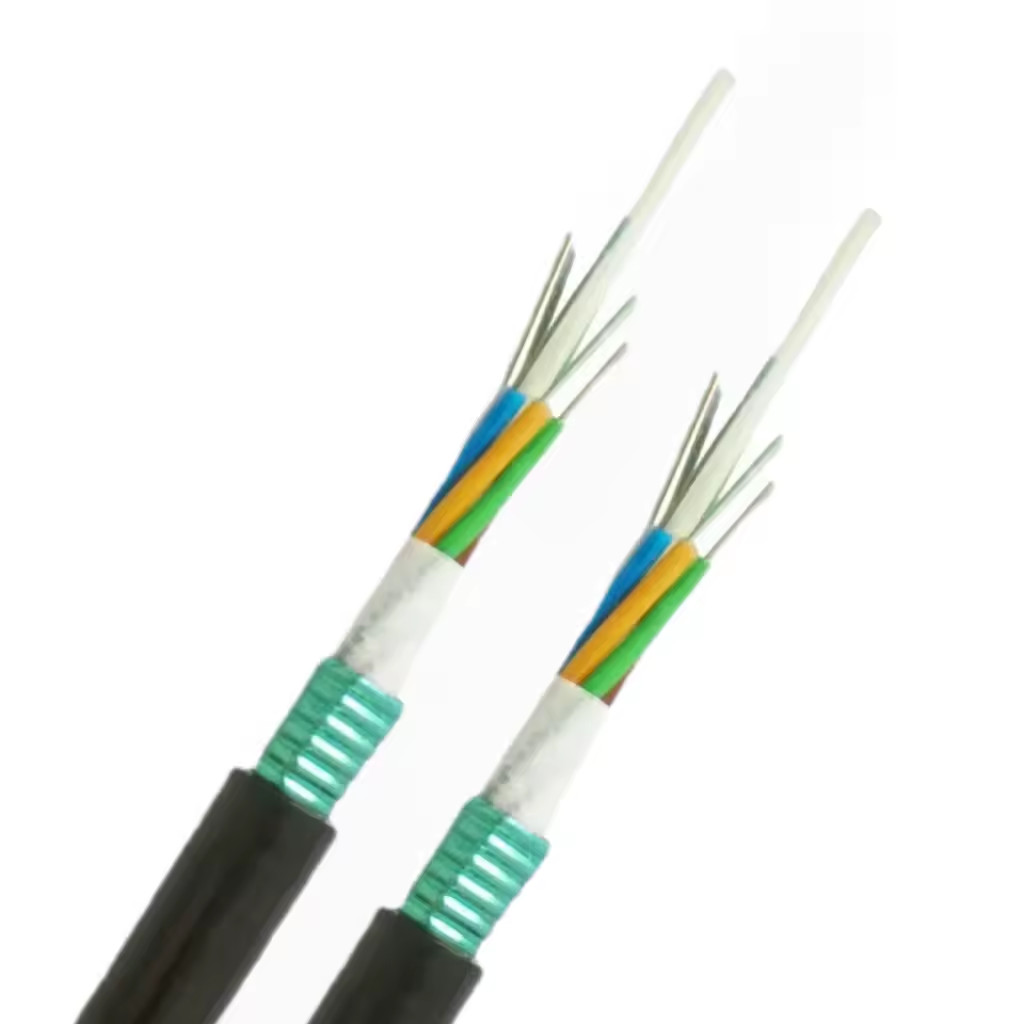

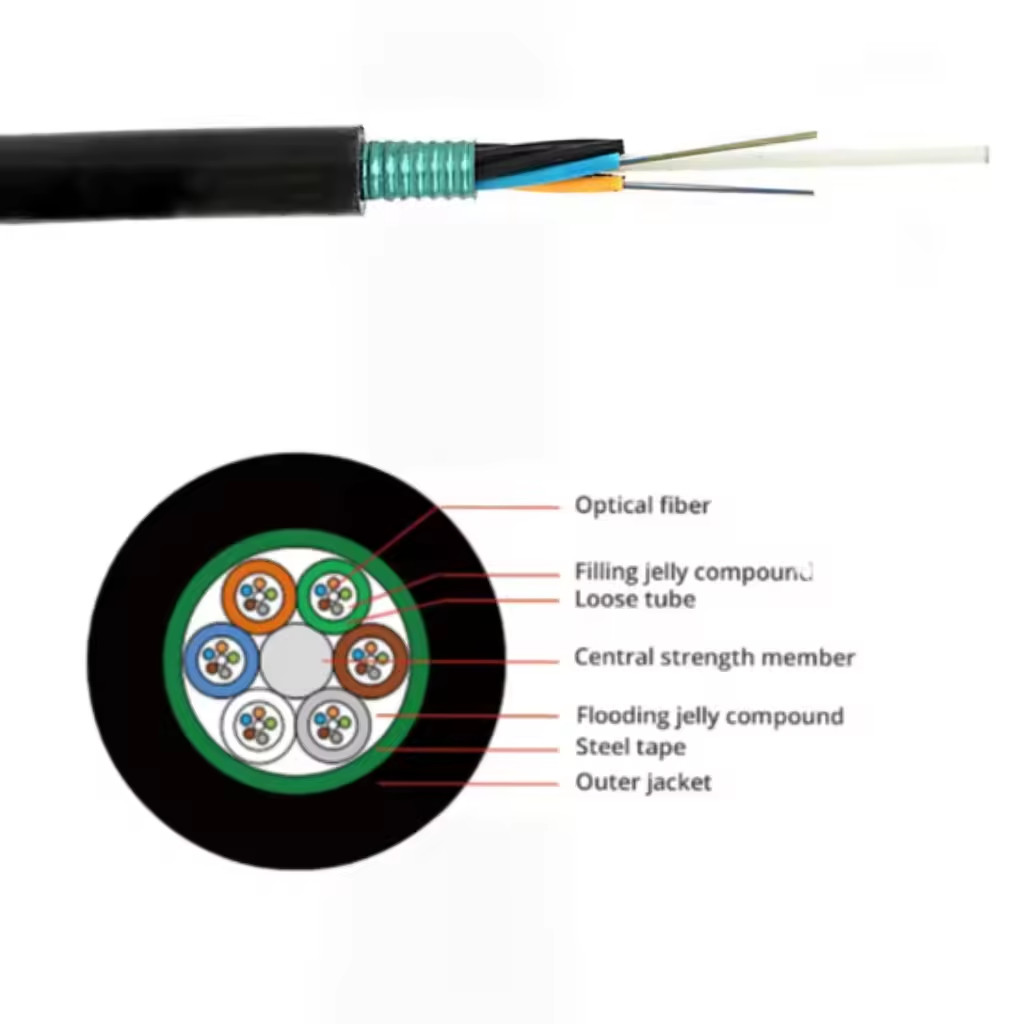

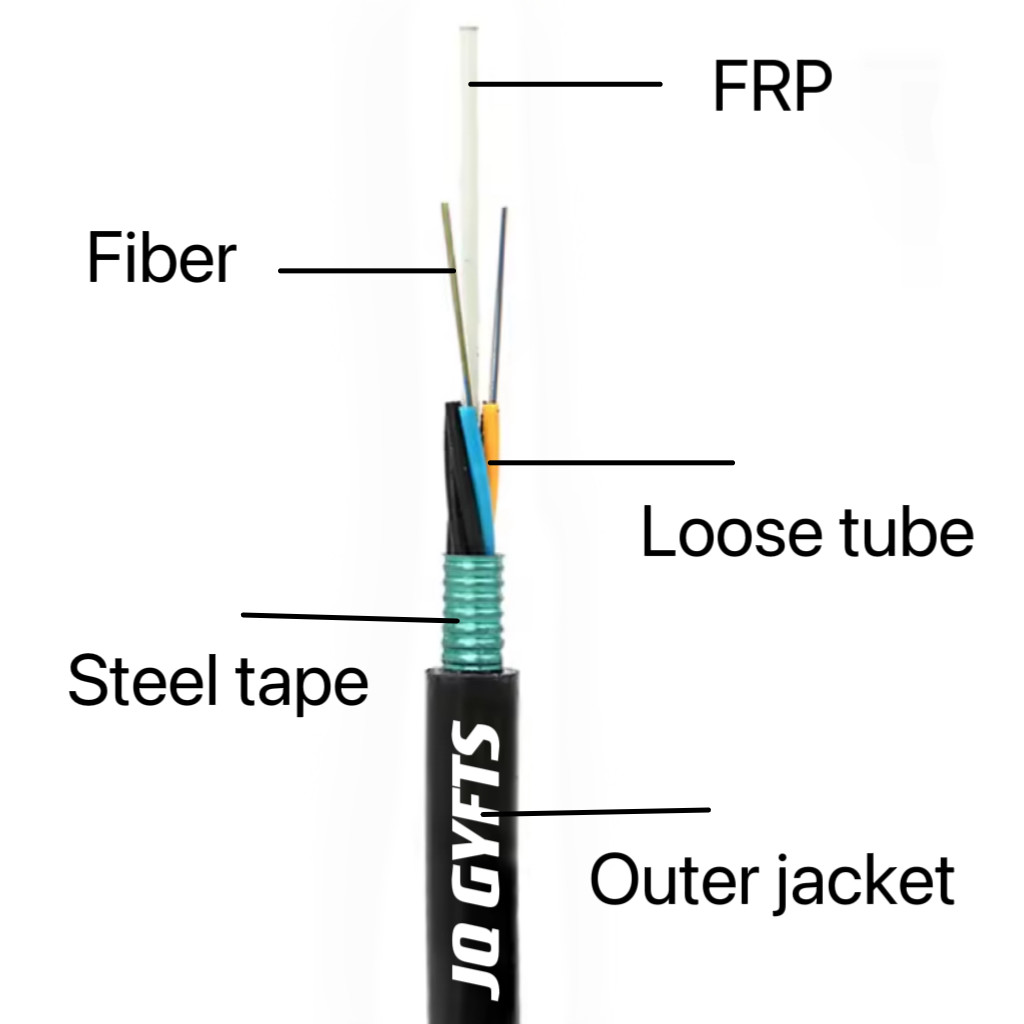

GYFTS is an outdoor communication optical cable of metallic strength member of the loose tube jelly-filled structure. The loose tubes are made of high modulus plastics (PBT) and filled withwater resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound. The corrugated steel tape is longitudinally applied over the cable core, and combined with polyethylene (PE) inner sheath. Galvanized steel wires are stranded around inner sheath, and then extruded with PE outer sheath.
Characteristics:
■ Precise fiber residual length control ensures excellent tensile and temperature performance.
■ The loose tube material has good hydrolysis resistance, and the tube is filled with oil paste to protect the optical fiber.
■ Sheath material has good anti-solar radiation performance.
Application:
■ Adapted to Outdoor distribution.
■ Long distance and local area network communication.
■ Suitable for aerial pipeline laying method.
| item | value |
| Model Number | GYFTS |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Structure | stranded loose tube |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Loose tube | PBT |
| Central strength member | FRP |
| Armoured | Steel tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Steel Tape armor |
| Color | Black or as your need |
| Length | 1km 2km 3km 4km |
| Installation | aerial, in duct |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
| Attenuation | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| (+20X) | 1300 nm | <1.0 dB/km | <1.0 dB/km | ||
| 1310 nm | <0.34 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.21 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm |
| cable countr | out sheath diameter | Weight | Minimum allowable Tensile strength(N) | Minimum | Min bending radius(MM) | |||
| (MM) | (KG) | allowable Crush load(N/100mm) | ||||||
| Short term | Long term | Short term | long Term | short term | long Term | |||
| 2-36 | 12.8 | 170 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 38-72 | 14.2 | 212 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 74-96 | 15.7 | 245 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 98-120 | 17.3 | 289 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
| 122-144 | 18.8 | 328 | 3000 | 1000 | 3000 | 1000 | 20D | 10D |
