2 cores 4 cores FTTH fiber optic cable flat cable GJXH/GJXFH with steel wire or FRP
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GJYXFCH |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Cable Structure: | Self-supporting With Messenger Wire |
| Messenger: | Galvanized Steel | Package: | Wooden Drum/Customized |
| Application: | FTTH FTTB FTTX Network | Oem: | Available |
| Keywords: | Drop Cable | ||
| High Light: | G657A Drop Cable,4 Core Drop Cable,G652D Drop Cable |
||
Product Description
Product Description:

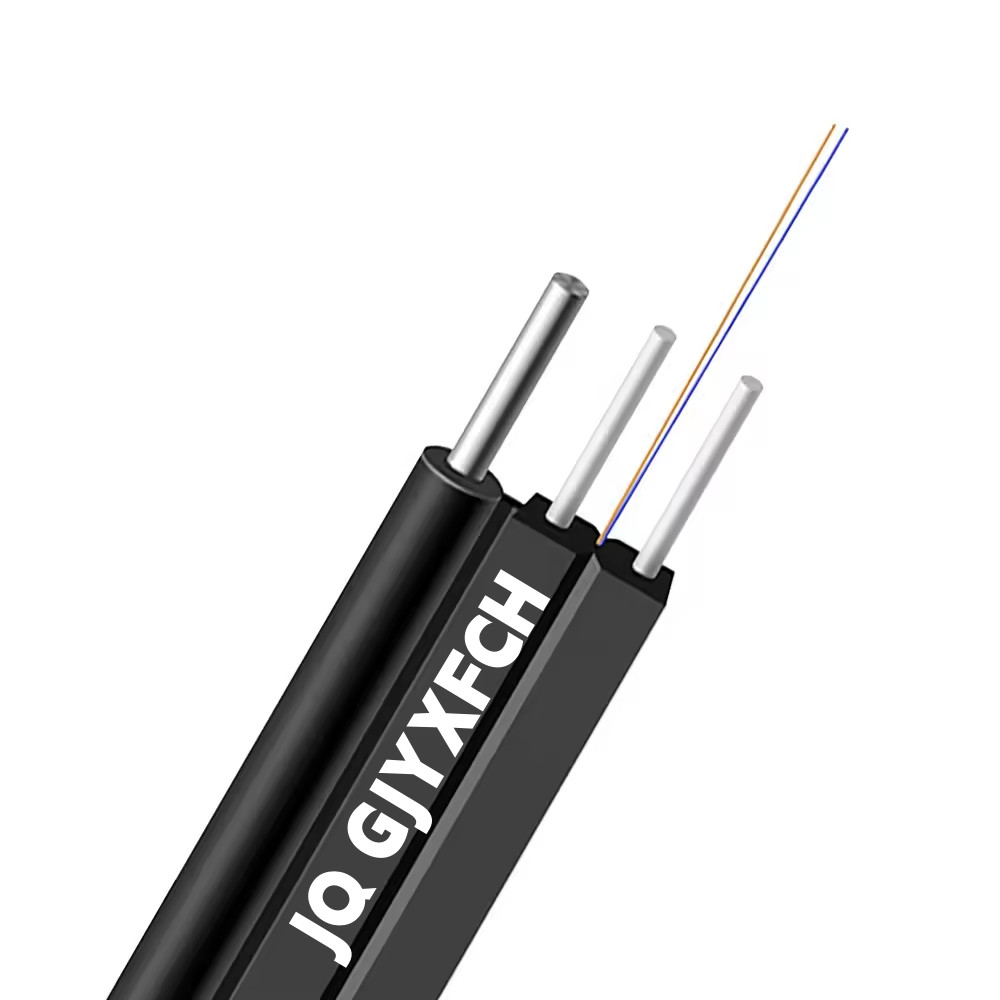

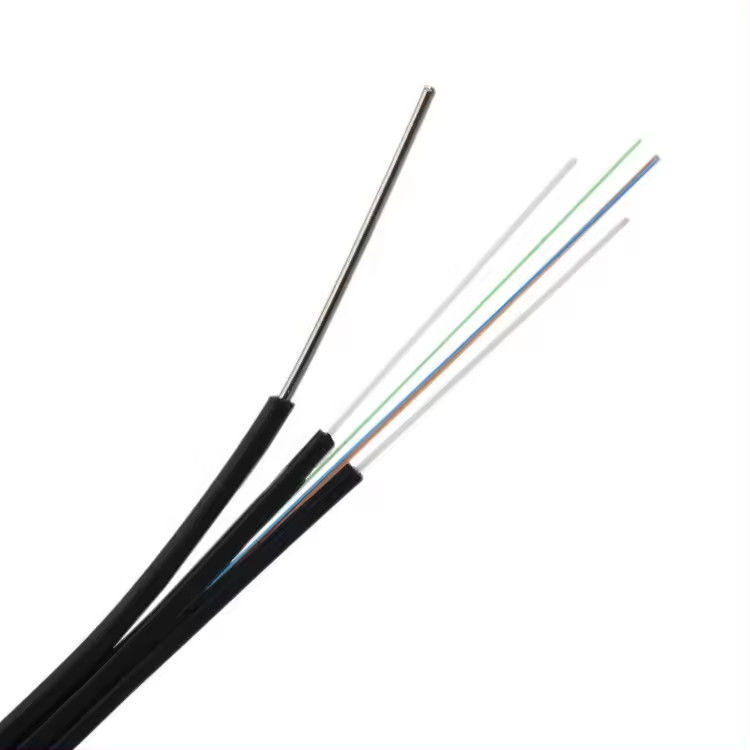

GJYXFCH FTTH drop cable

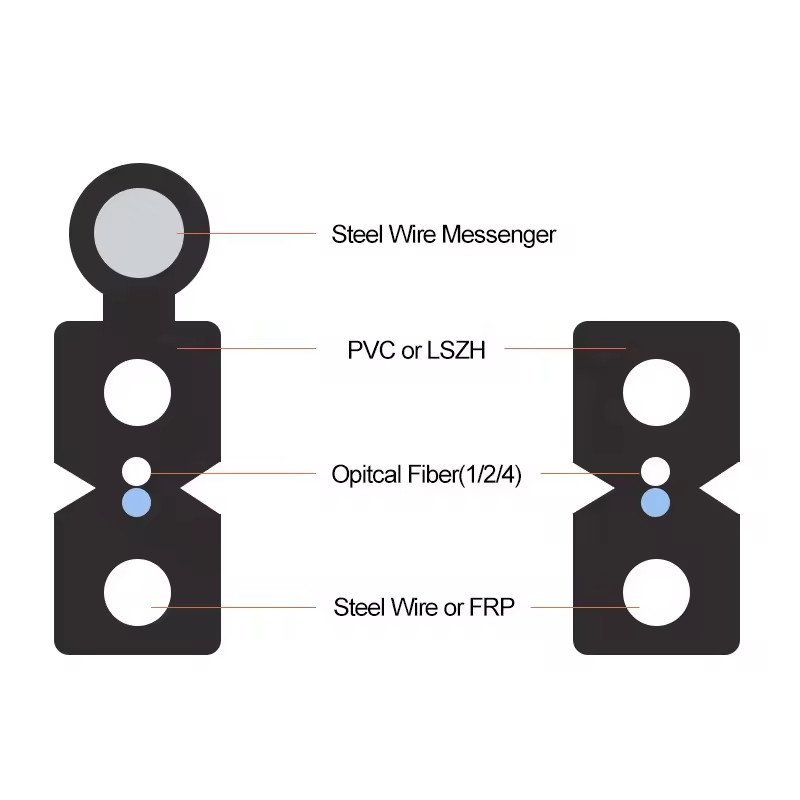

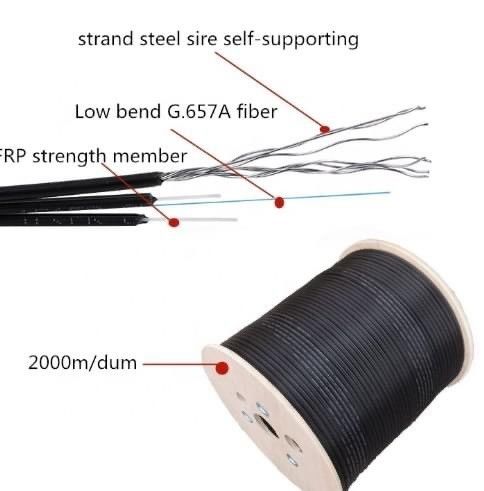

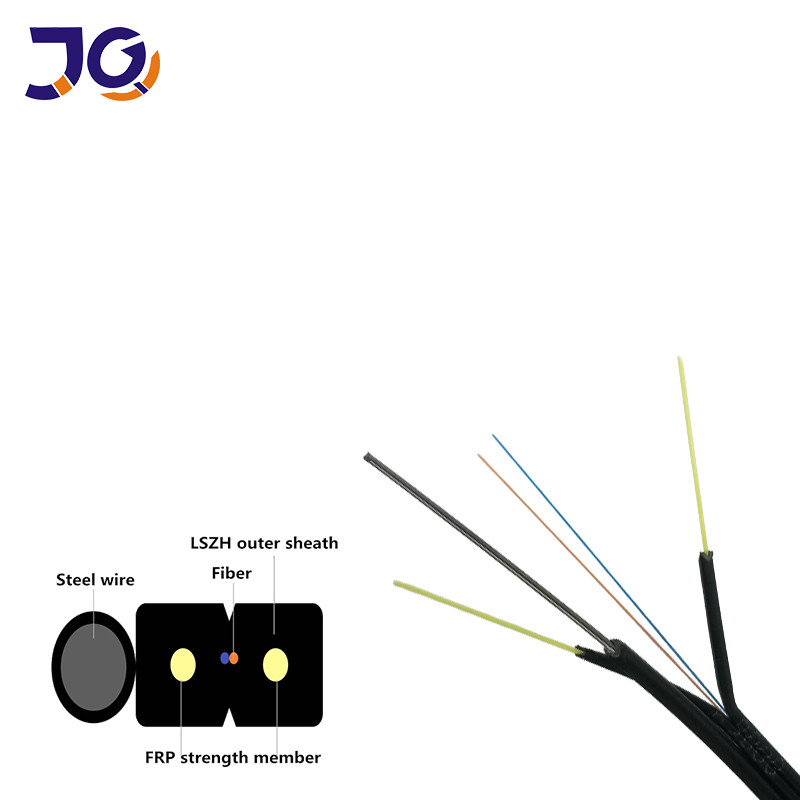

The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black or color LSZH sheath.
Characteristics:
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber; · Simple structure, light weight and high practicability;
3.Novel flute design, easily strip and splice, simplify the installation and maintenance;
4.Low smoke, zero halogen and flame retardant sheath.
Application:
1.Outdoor aerial application
2.Used in the FTTH projects
3.High speed optical routes in building
4.High performance optical network operation
Specification:
| Fiber count | 1F/2F/4F | |||||
| Attenuation | 1310nm:≤0.34 1550nm:≤0.21 | |||||
| Color Of fiber | Blue Orange Green Brown | |||||
| Fiber Type | G652D/G657A1/G657A2 | |||||
| Strength member | Steel wire/FRP/KFRP | |||||
| Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti | |||||
| Cable Diameter dimensions | 2.0( Height) × 3.0W ± 0.1 mm(width) | |||||
| Operation temperature range | -20 ℃ to + 70 ℃ | |||||
| Installation temperature range | -0 ℃ to + 60 ℃ | |||||
| Transport and storage temperature range | -20 ℃ to + 70 ℃ | |||||
| Tension Load (N) | Short term :800N Long term :500N | |||||
| Crush Load(N) | Long term 1000 N/100mm Short term:2200N/100mm | |||||
| Minimal installation bending radius | 30 x OD | |||||
| Minimal operation bending radius | 15 x OD | |||||
| Cable marking | The marking length 1meter apart , as required | |||||
