OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GDTA |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Cable Structure: | Multi-Loose Tube Aluminum Tape Armor |
| Armoured: | Al Tape | Package: | Wooden Drum/Customized |
| Application: | Aerial, In Duct | Oem: | Available |
| Keywords: | Hybrid Cable | ||
| High Light: | 24 core Power Cable GDTA,Outdoor Power Cable GDTA |
||
Product Description
Product Description:

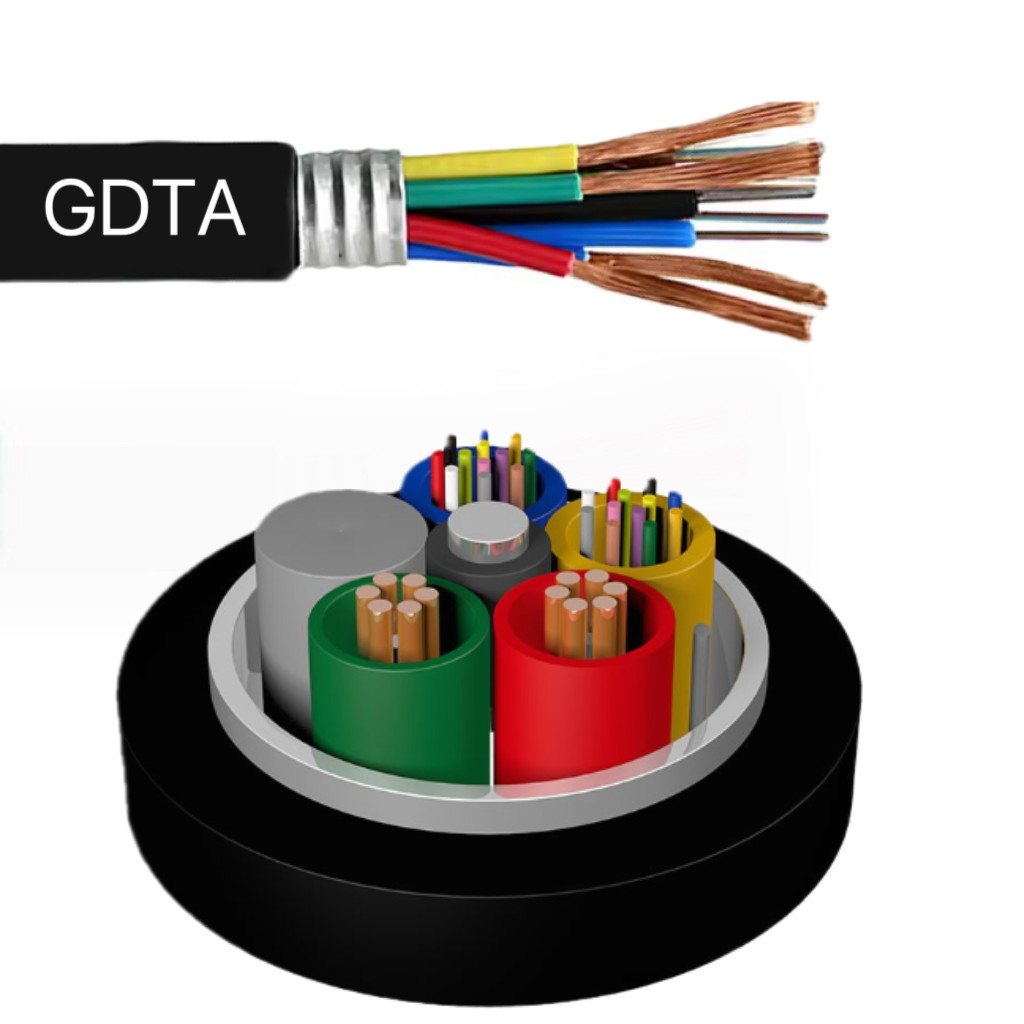

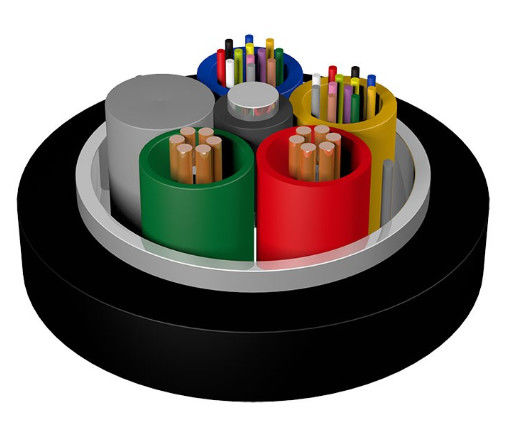

The GDTA hybrid cable is constructed by packing single or multi-mode optical fibers into a loose tube made of a high-modulus polyester material and filling the tube with a waterproof compound. At the center of the cable core is a metal reinforcement core, and for some cables with a number of cores, a layer of polyethylene needs to be squeezed on the outside of the metal reinforcement core. A compact circular cable core is formed by stranding the loose sleeve and the required insulating copper wire around the central reinforcing core, and the gap in the cable core is filled with water-blocking filler. The cable is formed by extruded polyethylene sheathing after the plastic coated aluminum strip (APL) is longitudinally wrapped.
Characteristics:
* Good flexibility and mechanical properties.
* Opto and electricity integrated, fully save pipeline resources.
* Electric and optical cable maintain relatively independent structure, easy to import, export and link when installation.
* Electricity lines, telephone lines, television lines, network lines, monitor lines and data lines are multi-one network, saves costs.
* Larger operating temperature range.
* Larger construction temperature range.
* Cable diameter and bending radius are small, freely install in small space and compatible with optical signal and electric energy transmission.
Application:
• CATV
• Local trunk line
• Rural communication
• Computer networks system
• Aerial & conduit/duct application
Specification:
| item | value |
| Model Number | GDTA |
| Type | Outdoor Fiber Optic Cable |
| Keywords | hybrid cable |
| Type | Fiber Optic Cable+Electric Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Armoured | Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum Tape armor |
| Color | Black or as your need |
| Installation | aerial, in duct |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
