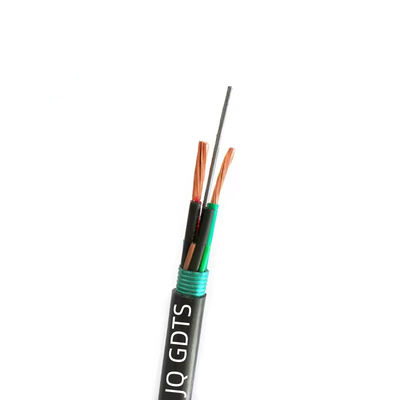

OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GDTS |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Cable Structure: | Multi-Loose Tube Steel Tape Armor |
| Armoured: | Steel Tape | Package: | Wooden Drum/Customized |
| Application: | Aerial, In Duct | Oem: | Available |
| Keywords: | Hybrid Cable | ||
| High Light: | Hybrid fiber optic cable,fiber optic cable GDTS armoured |
||
Product Description
Product Description:

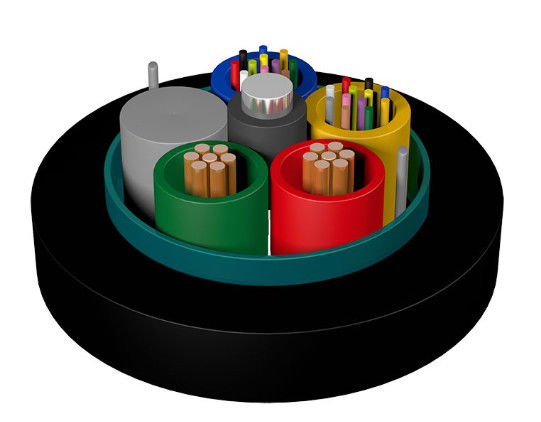

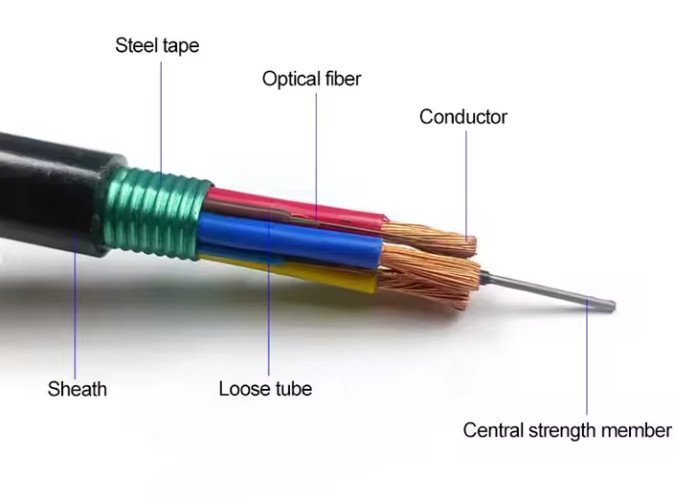

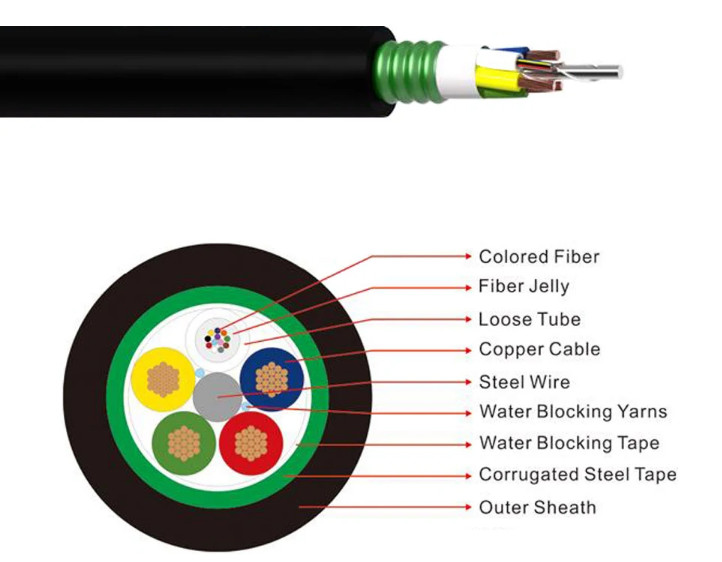

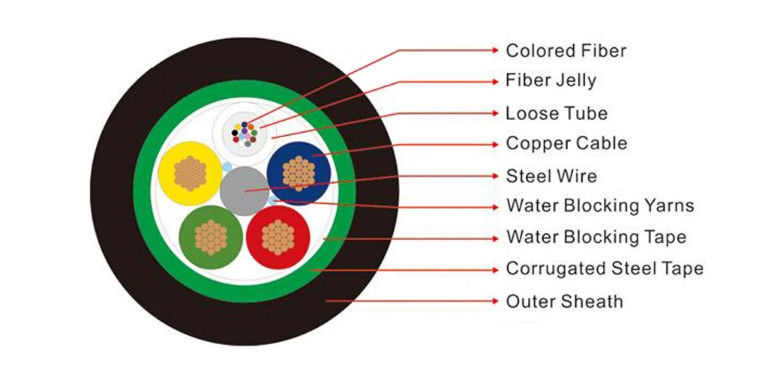

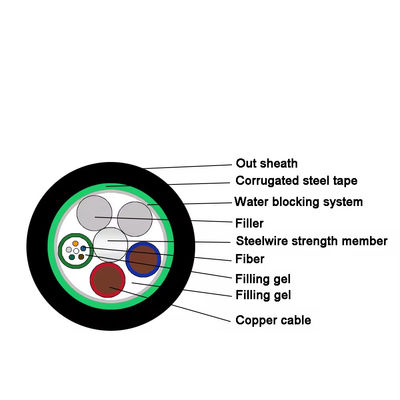

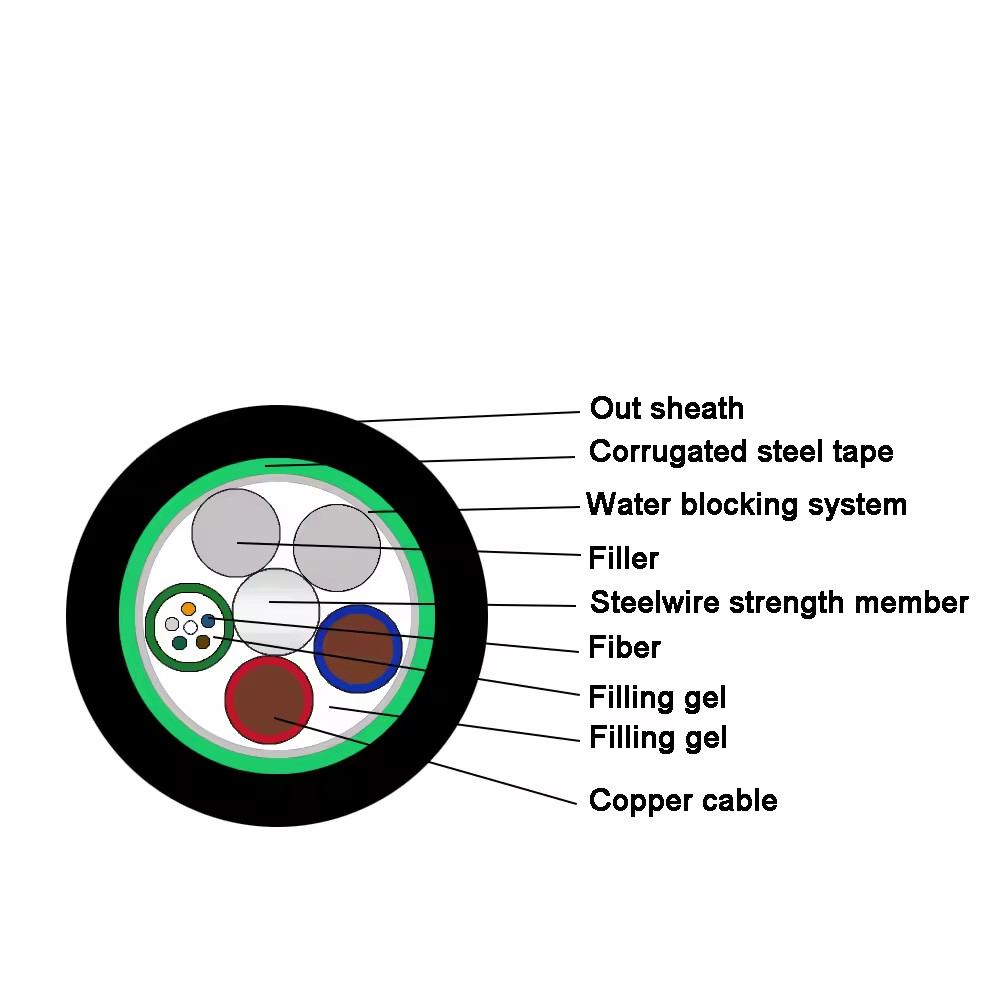

The structure of the GDTS photoelectric hybrid cable is that single mode or multi-mode fiber is packed into a loose tube made of a high-modulus polyester material, and the tube is filled with a waterproof compound. At the center of the cable core is a metal reinforcement core, and for some cables with a number of cores, a layer of polyethylene needs to be squeezed on the outside of the metal reinforcement core. A compact circular cable core is formed by stranding the loose sleeve and the required insulating copper wire around the central reinforcing core, and the gap in the cable core is filled with water-blocking filler. Double chrome coated plastic steel strip (PSP) rolled longitudinally and extruded polyethylene sheath to form cable.
Characteristics:
• Photoelectric integration, solve the problem of equipment power consumption and signal transmission, and provide centralized monitoring and maintenance of equipment power supply
• Improve power supply manageability and reduce power supply coordination and maintenance
• Reduce procurement costs and save construction costs
• Precisely controlled fiber residual length ensures good tensile and temperature characteristics of the cable
• Mainly used in distributed base station DC remote supply system, connecting BBU and RRU.
Application:
he cable Laying method:
Suitable for self-supporting Aerial.
Suitable for long-distance communication, local trunk line, CATV & computernetworks system.
Specification:
| item | value |
| Model Number | GDTS |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose Tube Material | PBT |
| Armoured | Steel tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Steel Tape armor |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
