OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYDTA GYDTS |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Cable Structure: | Multi-Loose Tube Al/Steel Tape Armor |
| Central Strength Member: | Steel Wire | Armoured: | Al/Steel Tape |
| Package: | Wooden Drum/Customized | Application: | Aerial, In Duct |
| Oem: | Available | ||
| High Light: | Outdoor Ribbon Fiber Optic Cable,Outdoor Ribbon Fiber Optic Cable |
||
Product Description
Product Description:

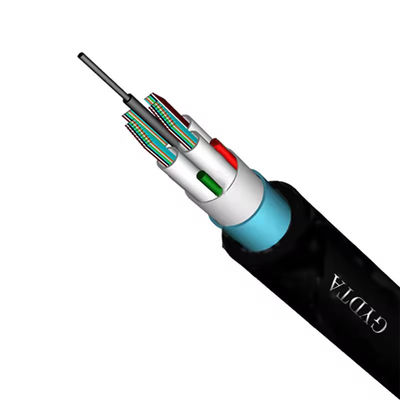

GYDTA cables are constructed by placing single - or multi-mode fibers in loose tubes made of high-modulus plastic filled with water-blocking compounds. The center of the cable core is a metal reinforcement core. For some fiber optic cables with a number of cores, a layer of polyethylene should be squeezed outside the metal reinforcement core, and the loose sleeve (and filling rope) should be twisted around the center reinforcement core to form a compact and circular cable core. The gap in the cable core is filled with water-blocking filler. The cable is formed by a polyethylene sheath after two sided aluminum coated tape is longitudinally wrapped.

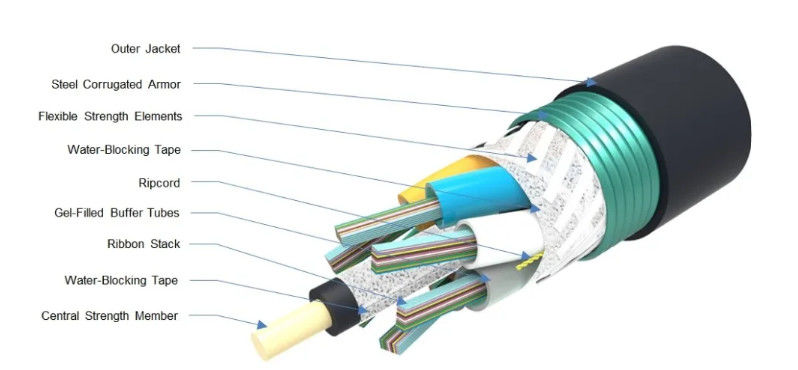

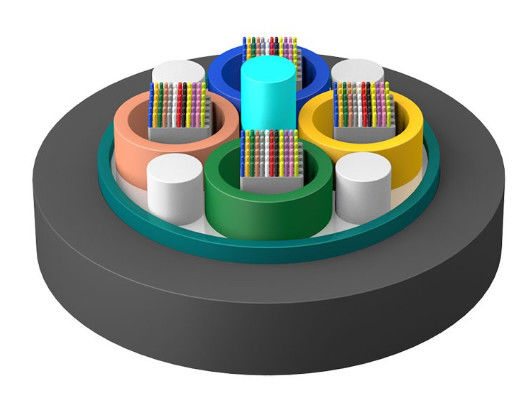

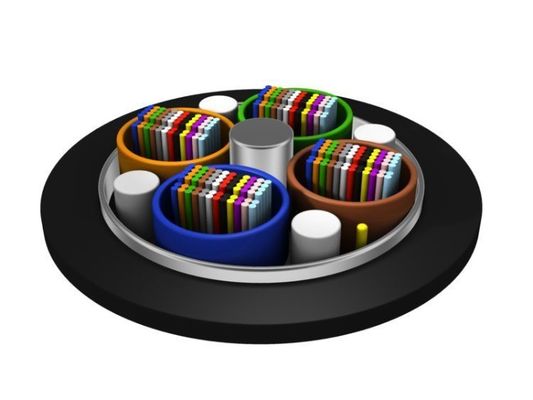

The GYDTS cable is constructed by placing 4, 6, 8, and 12-core fiber bands in loose tubes made of high modulus material, which are filled with a waterproof compound. At the center of the cable core is a metal reinforcement core, and for some cables with a number of cores, a layer of polyethylene (PE) needs to be squeezed on the outside of the metal reinforcement core. The loose sleeve and the filling rope are twisted around the central reinforcing core to form a compact and circular cable core, and the gap in the cable core is filled with water-blocking filler. Double sided coated plastic steel tape (PSP) longitudinally wrapped with extruded polyethylene sheath to form a cable.
Characteristics:
● Good mechanical and temperature performance
● High strength loose tube that is hydrolysis resistant
● Special tube filling compound ensure a critical protection of fiber
● PE sheath protects cable from ultraviolet radiation
● Good crush ability,applies for duct and directly buried application
● Single steel wire as central strength member
● Special tube filling compound ensure a critical protection of fiber
● Fully filled in the cable
● Double APL layers prevent the moisture
● Good water-blocking tape prevent the sinking vertically
Application:
1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aerial.
Specification:
| item | value |
| Model Number | GYDTS/GYDTA |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Central strength member | steel wire |
| Loose tube | Jelly filled |
| Loose Tube Material | PBT |
| Armoured | Steel /Al tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Steel /Al Tape armor |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | aerial, in duct |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
