OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788

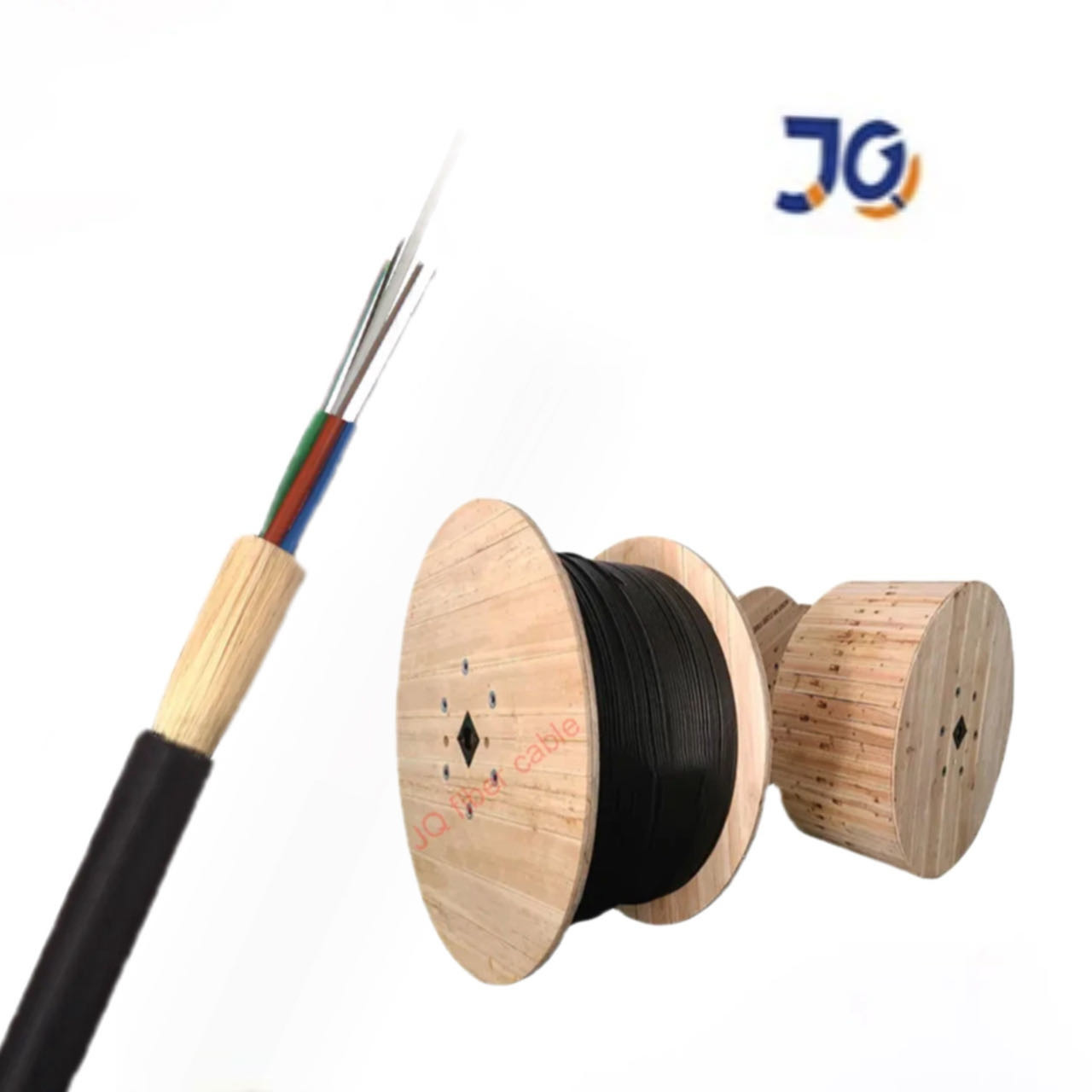

| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ/OEM | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | ADSS-SJ |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Tube: | Multi Loose Tube |
| Outer Sheath: | PE Or As Your Request | Central Strength Member: | FRP |
| Package: | Wooden Drum/Customized | Application: | Self-supporting Aerial |
| Oem: | Available | ||
| High Light: | 24 Core Fiber Optical Cable,Self-supporting Fiber Optical Cable |
||
Product Description
Product Description:
With all-dielectric self-supporting structure and FRP strength member for aerial applications, especially with extra high voltage.

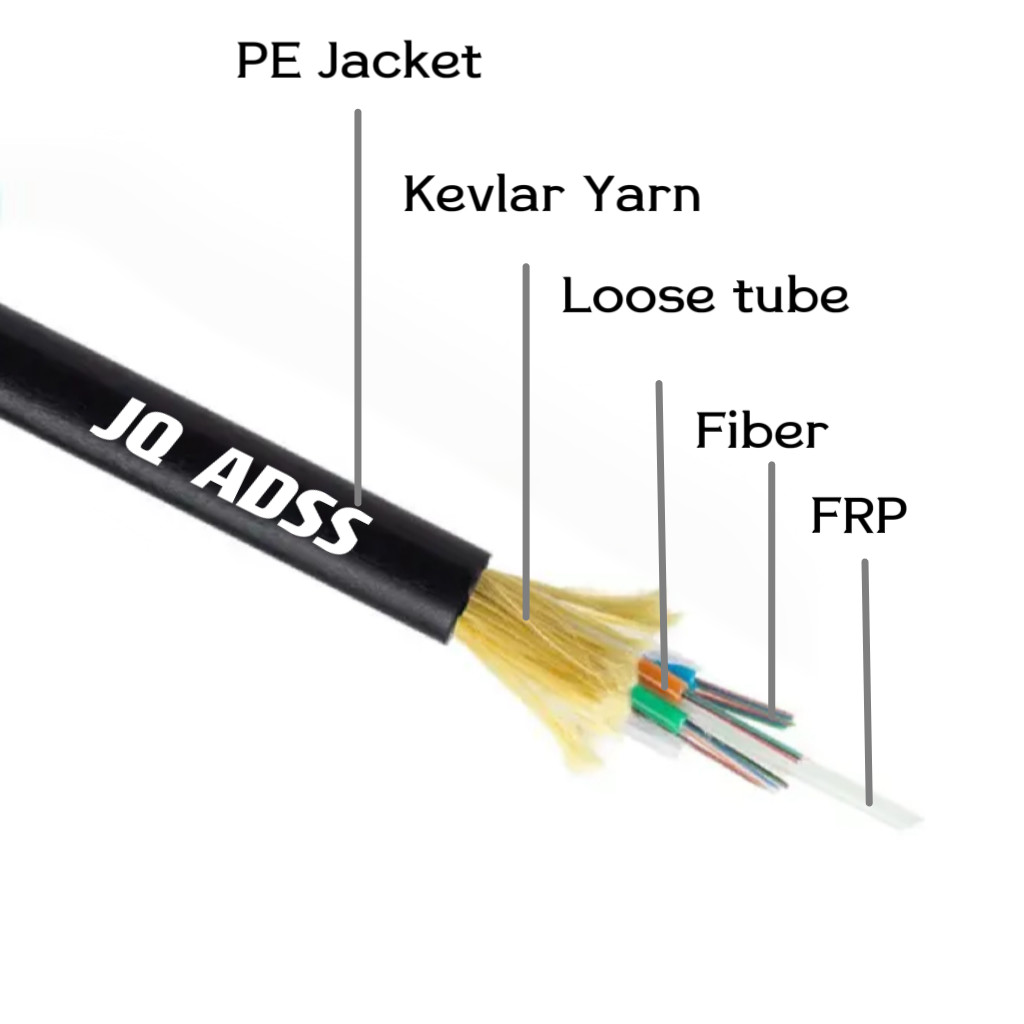

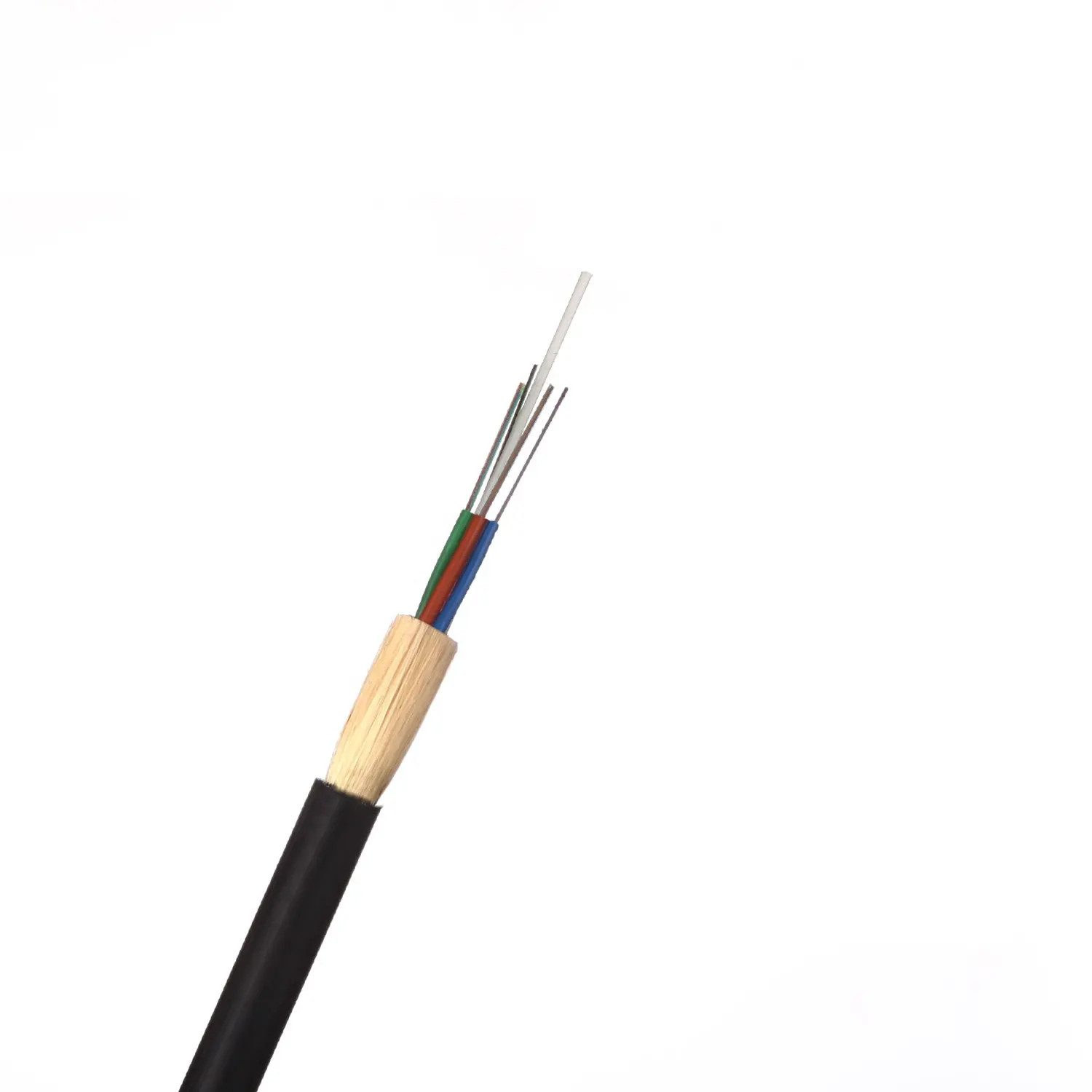

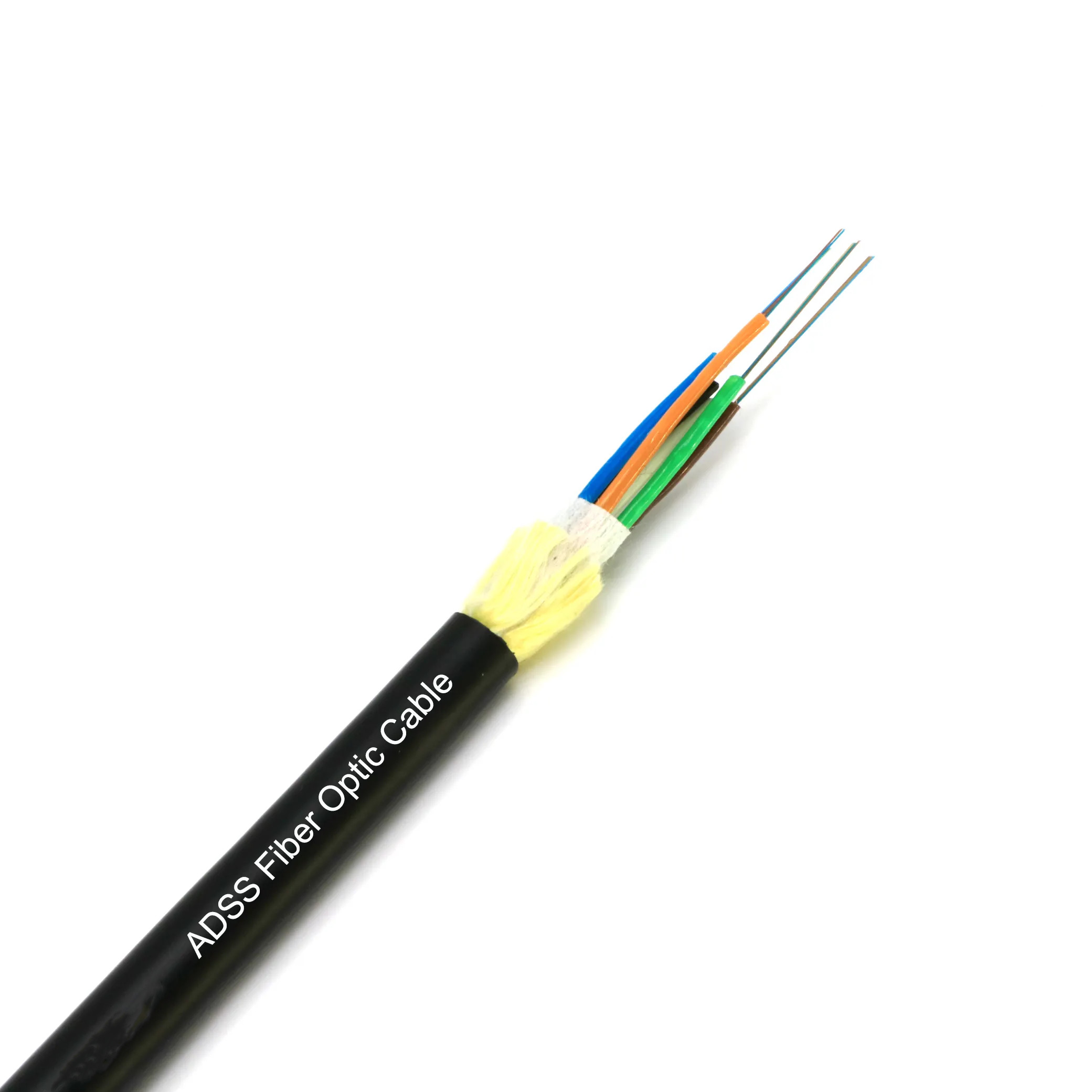

ADSS cable is loose tube stranded. The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as a non-metallic strength member into a compact and circular cable core,and the cable core is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Final the cable is completed with a polyethylene (PE) or AT outer sheath.
Characteristics:
The lifespan is over 30 years.
Large span with the largest span of over 1000m.
Reliable performance of moistureproof and waterproof.
Central strength member FRP gives high tensile strength.
PE or AT sheath ensures safety of cable in high voltage environment.
All-dielectric structure and light weight provide easy installation and good electromagnetic resistance.
Railways, power and telecommunication pole routes.
Can be used in areas suffered from frequent lightning.
Ideal for transmission lines with high electrical field strength.
Suitable for installation on poles and on the power distribution network.
Aerial self-supporting applications at short, medium and long span distances.
Specification:
| item | value |
| Model Number | ADSS |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Cable Structure | Multi-Loose Tube None Armor |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber material | silicon dioxide |
| Fiber Type | G652D Single mode or as your request |
| Fiber color | Blue, Orange, Green, Brown,etc |
| Central strength member | FRP |
| Loose tube | Jelly filled |
| Loose tube Material | PBT |
| Jacket Sheath | PE |
| Color | Black or as your need |
| Package | Plywood Reel/customized |
| Installation | Self-supporting aerial |
| operating temperature | -40 to +70 |
| Certification | CE/ROHS/ISO9001 /ANATEL |

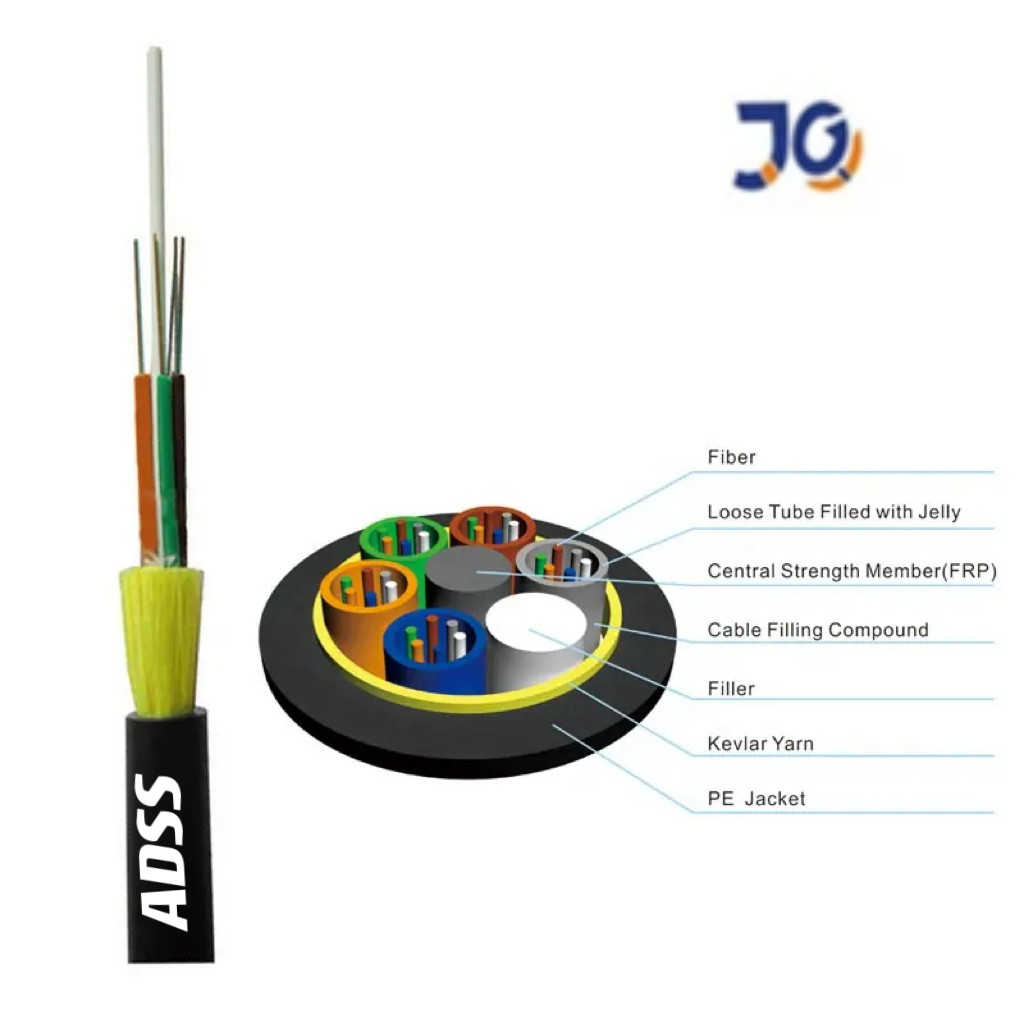

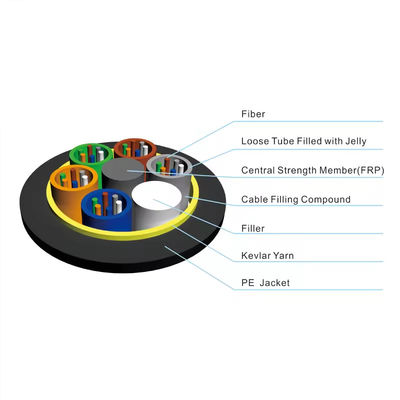

Structure and Technical Specifications:
| Cable | Out | Weight | Maximum | Maximum | Minimum | Storage |
| Count | sheath | (kg) | allowable | allowable | Bending | Temperature |
| Diameter | Tensile Strength | Crush Load | Radius(MM) | (°C) | ||
| (MM) | (N) | (N/100nm) | ||||
| 6 | 12.2±0.5 | 75 | 4000 | 3000 | 10D | 30 |
| 12 | 12.2±0.5 | 75 | 4000 | 3000 | 10D | 30 |
| 24 | 12.2±0.5 | 75 | 4000 | 3000 | 10D | 20 |
| 48 | 12.2±0.5 | 75 | 4000 | 3000 | 10D | 20 |
| 72 | 12.2±0.5 | 75 | 4000 | 3000 | 10D | 20 |
| 96 | 14.0±0.5 | 75 | 4000 | 3000 | 10D | 20 |
| 144 | 16.0±0.5 | 75 | 4000 | 3000 | 10D | 20 |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
