OEM 144 Core Outdoor Duct GYFTY Aerial Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788
| Minimum Order Quantity : | 1 Kilometer | Packaging Details : | Wooden Drum |
|---|---|---|---|
| Delivery Time : | 2-5days | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 8000 kilometers per month |
| Brand Name: | JQ | Certification: | CE/ISO9001 |
|---|
|
Detail Information |
|||
| Place Of Origin: | Guangdong, China | Model Number: | GYTA GYTA |
|---|---|---|---|
| Type: | Outdoor Fiber Optic Cable | Number Of Conductors: | ≥ 10 |
| Fiber Type: | G652D Single Mode Or As Your Request | Length: | As Required |
| Color: | Customized | Tube: | Multi-Loose Tube |
| Central Strength Member: | Steel Wire | Armoured: | Al/Steel Tape |
| Outer Sheath: | PE Or As Your Request | Package: | Wooden Drum/Customized |
| Application: | Aerial,Overhead | Oem: | Available |
| High Light: | Outdoor armoured fiber optic cable,24 cores fiber optic cable |
||
Product Description
Product Description:

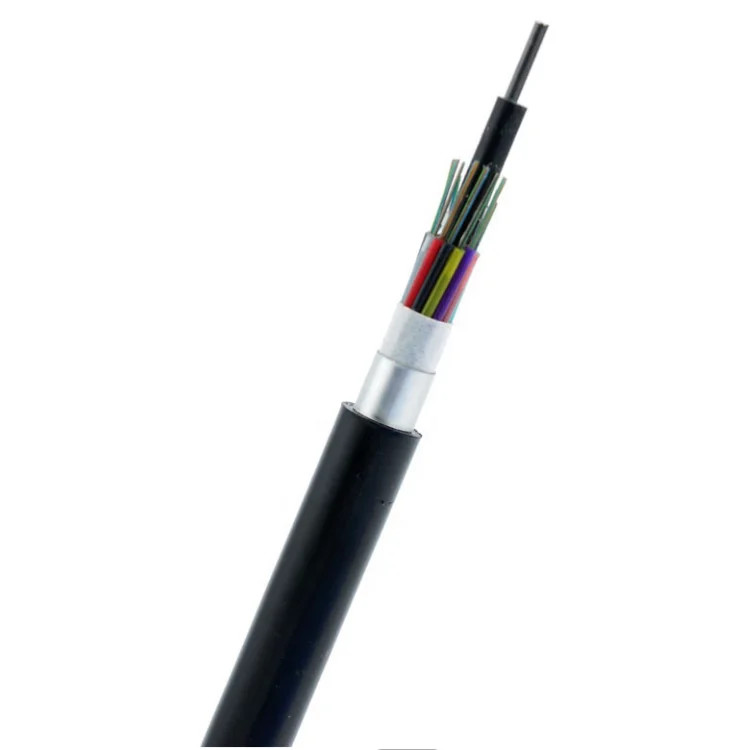

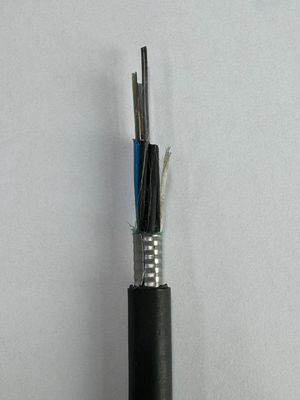

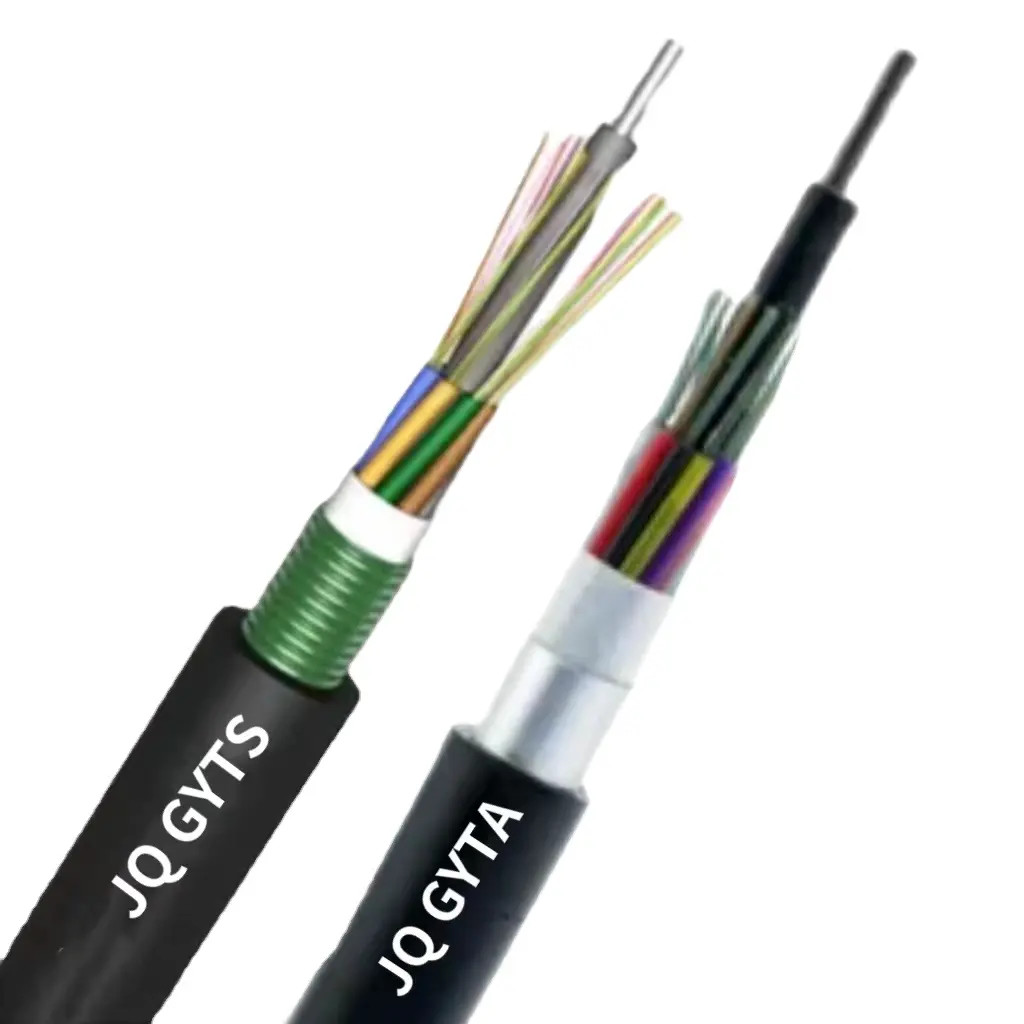

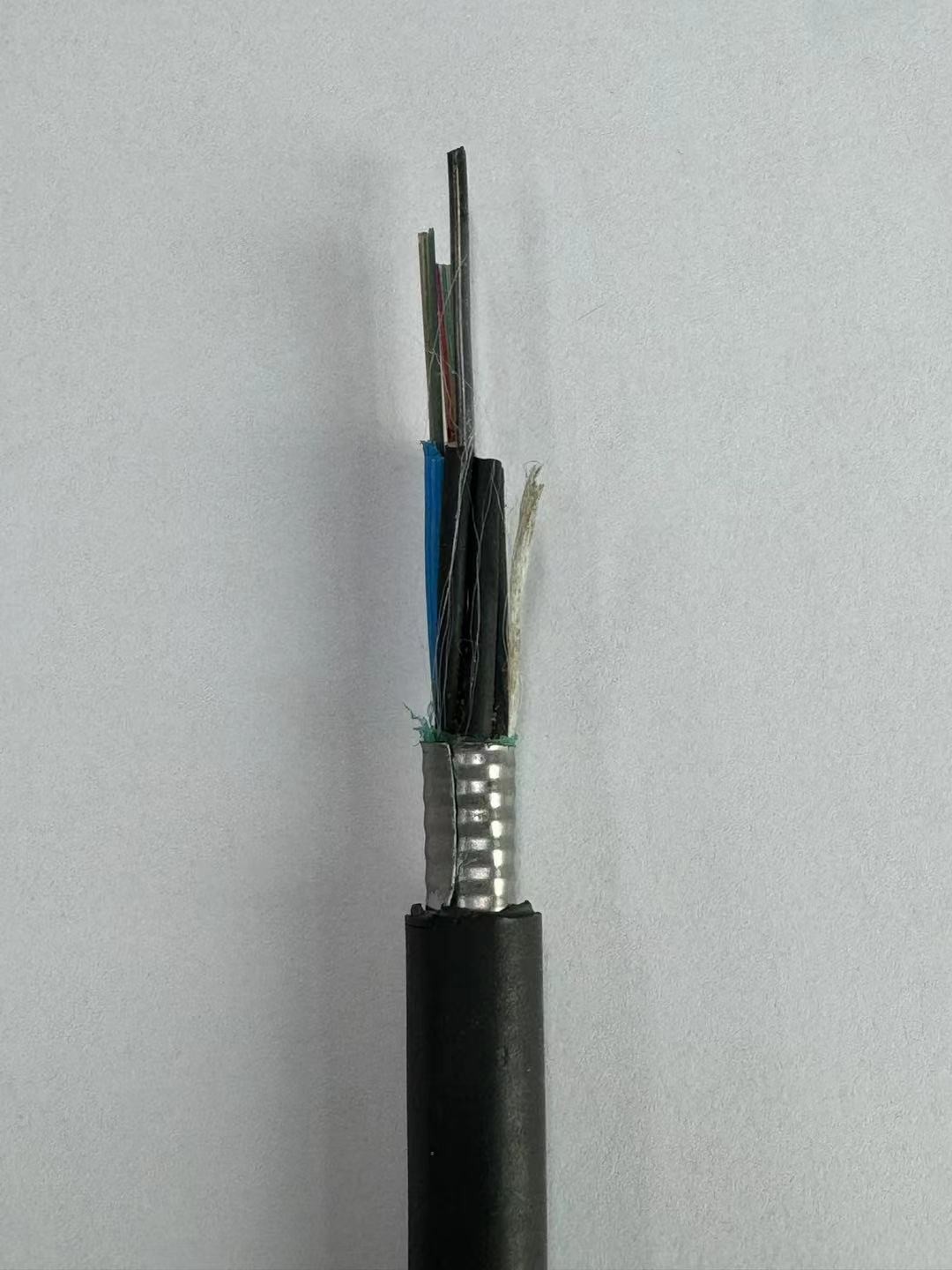

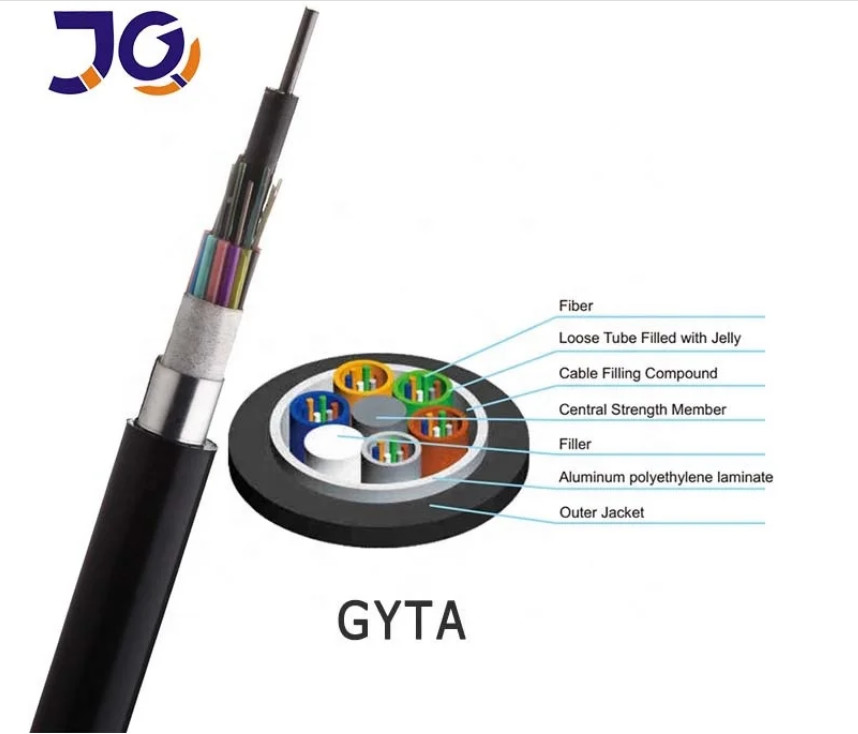

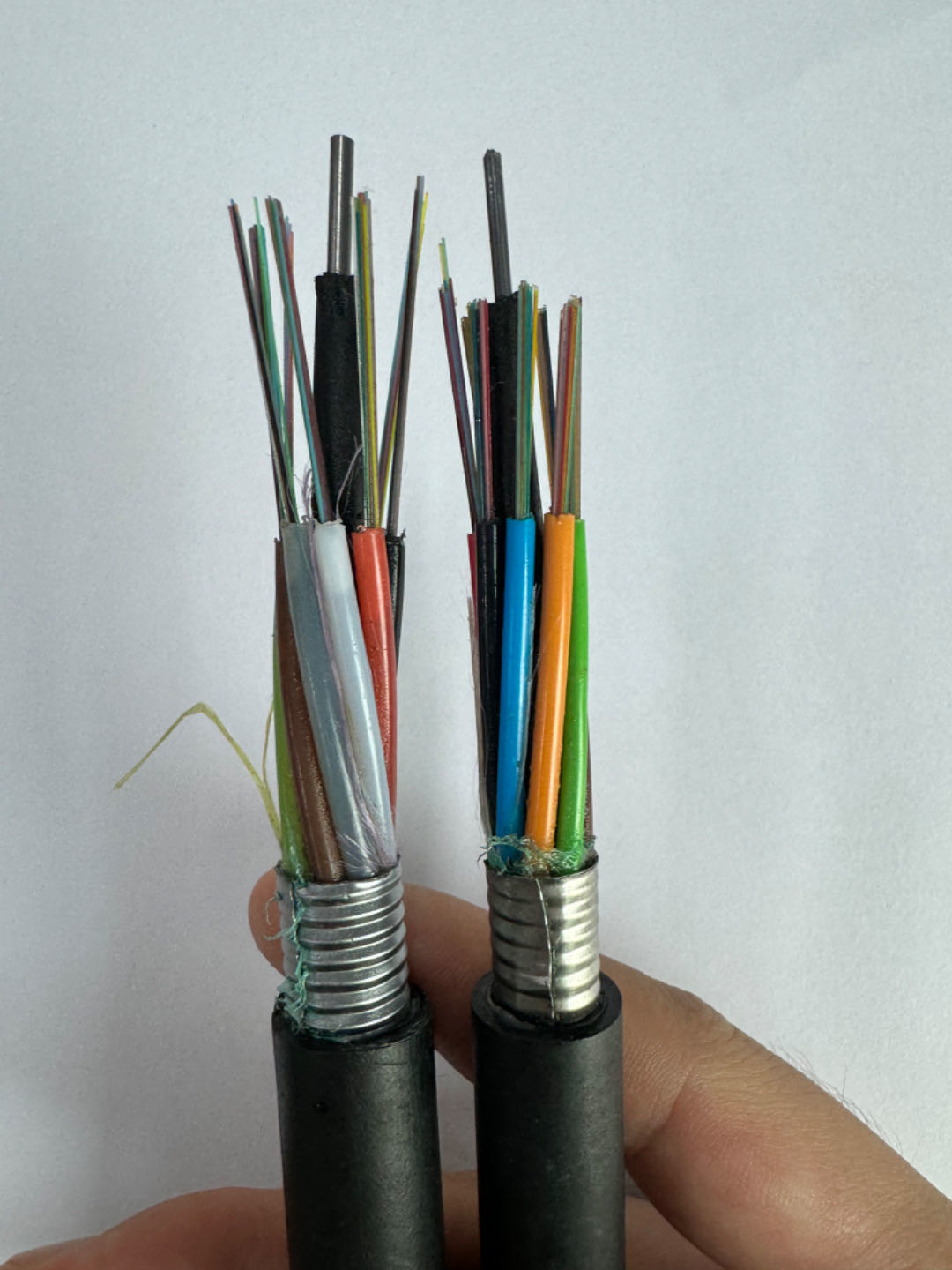

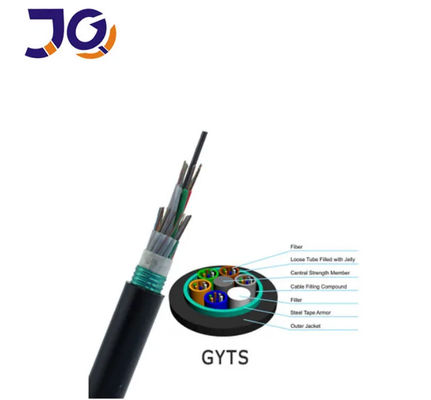

The structures of GYTS and GYTA fiber optic cables are the same, except that one is an aluminum strip and the other is a steel strip. one hundred and twenty-five μ The optical fiber of m is located in a loose tube made of high modulus plastic. The pipe is filled with waterproof filling compound. Steel wire, sometimes covered with polyethylene (PE) sheath, is used for high fiber dimension cables as a metal strength component located at the center of the core. The tube (and filler) is twisted around the strength component to form a compact circular cable core. PSP is longitudinally applied to the cable core, which is filled with filling compound to protect it from water ingress. The cable adopts PE sheath.
Characteristics:
1. Good mechanical and temperature performance.
2. High strength loose tube that is hydrolysis resistant.
3. Special tube filling compound ensure a critical protection of fiber.
4. Specially designed compact structure is good at preventing loose tubes from shrinking.
5. Crush resistance and flexibility.
6. PE sheath protects cable from ultraviolet radiation.
Application:
1. Long-distance communication.
2. It's suitable for duct, especially for the places with high requirement for moisture-proof.
3. Installation: Duct, direct-buried or non-self-supporting aerial.
Specification:
| item | value |
| Model Number | GYTA/GYTS |
| Type | Outdoor Fiber Optic Cable |
| Place of Origin | Guangdong,China |
| Brand Name | jiqian |
| Number of Conductors | ≥ 10 |
| Fiber count | 2-288 Cores |
| Fiber Type | G652D Single mode or as your request |
| Loose tube material | PBT |
| Central strength member | steel wire |
| Armoured | Al/steel tape |
| Outer Sheath | PE |
| Cable Structure | Multi-Loose Tube Aluminum/Steel Tape armor |
| Color | Black or as your need |

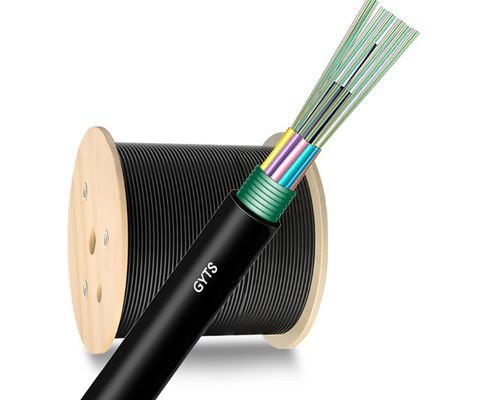

| Package | Fumigation free wooden drum |
| Installation | aerial, in duct |
| Certification | CE/ROHS/ISO9001 /ANATEL |
| OEM | Available |
Structure and Technical Specifications:
| Fiber | Nominal | Nominal | Max Fiber | Max No. | Allowable Tensile | Allowable Crush | ||
| Count | Diameter | Weight | Per Tube | of(Tubes+ | Load(N) | Resistance(N/100mm) | ||
| (mm) | (kg/km) | fillers) | Short Term | Long Term | Short Term | Long Term | ||
| 2~36 | 10.3 | 109 | 6 | 6 | 1500 | 600 | 1000 | 300 |
| 38~72 | 11.5 | 145 | 12 | 6 | 1500 | 600 | 1000 | 300 |
| 74~96 | 13.5 | 175 | 12 | 8 | 1500 | 600 | 1000 | 300 |
| 98~120 | 14.8 | 209 | 12 | 10 | 1700 | 600 | 1000 | 300 |
| 122~144 | 16.6 | 249 | 12 | 12 | 2000 | 600 | 1000 | 300 |
| 146~216 | 16.7 | 254 | 12 | 18(2 layers) | 2000 | 600 | 1000 | 300 |
| 218~288 | 19 | 325 | 12 | 24(2 layers) | 2500 | 600 | 1000 | 300 |
Company Profile:
Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.
WHY CHOOSE US:
Certification:
FAQ:
1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
