GYTS G657A1 12 Core Single Mode Armoured Fiber Optic Cable

Contact Now

GYTS G657A1 12 Core Single Mode Armoured Fiber Optic Cable

Minimum Order Quantity :	1000m	Packaging Details :	wooden drum
Delivery Time :	2-4day	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	100km per 2 day

Place of Origin:	CHINA	Brand Name:	jiqian
Certification:	ISO	Model Number:	GYTS

Detail Information
Fiber Type:	G657A1/A2/G652D/G657A1/G657A2	Oem:	Available
Application:	Aerial/duct	Number Of Conductors:	6 8 12
Structure:	Stranded Loose Tube	Operating Temperature:	-40 ~ +60 C
Highlight:	G657A1 12 core single mode fiber optic cable , GYTS 12 core single mode fiber optic cable , 12 core single mode armoured fiber optic cable

Product Description

GYTS Armoured Steel Tape Single Mode Stranded Loose Tube 12core Outdoor Fiber Optic

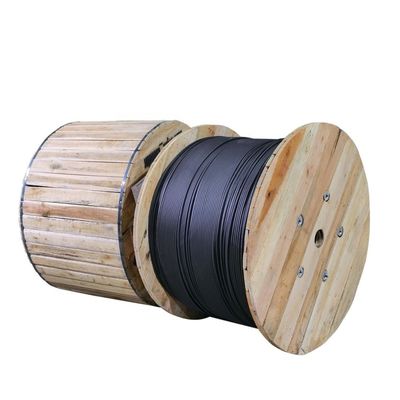

GYTS G657A1 12 Core Single Mode Armoured Fiber Optic Cable 0

Optical and mechanical characteristics of fiber

MFD(1310nm)	9.2mm±0.4mm
MFD(1550nm)	10.4mm±0.8mm
Cladding diameter	125mm±1.0mm
Fiber diameter	250 ± 15 mm (Colored)
Core/cladding concentricity error	£0.6mm
MFD concentricity error	£0.8mm
Cladding non circularity	£1.0%
Cut off wavelength	£1260nm
Attenuation coefficient	1310nm: £0.35dB/km
Attenuation coefficient	1550nm: £0.21dB/km
Bending-loss performance of optical fiber	£0.05dB
Polarization mode dispersion	£0.1ps/Ökm
Zero-dispersion wavelength	1300 – 1324 nm
Zero-dispersion slope	£0.092ps/(nm2•km)

Mechanical requirements and methods of fiber cable

Tensile strength	1500N, conform to IEC 60794-1-E1 while fiber strain is ≤0.33%
Crush	1000N/100mm, conform to IEC 60794-1-E3
Impact	conform to IEC 60794-1-E4
Repeated bending	conform to IEC 60794-1-E6
Torsion	conform to IEC 60794-1-E7
Flexing	conform to IEC 60794-1-E8
Kink	conform to IEC 60794-1-E10
Cable bend	conform to IEC 60794-1-E11
Temperature cycling test	conform to IEC 60794-1-F1
Water penetration	conform to IEC 60794-1-F5B
Spark test voltage	Spark test voltage of cable outer jacket will be no less than 8kV AC

Fiber:

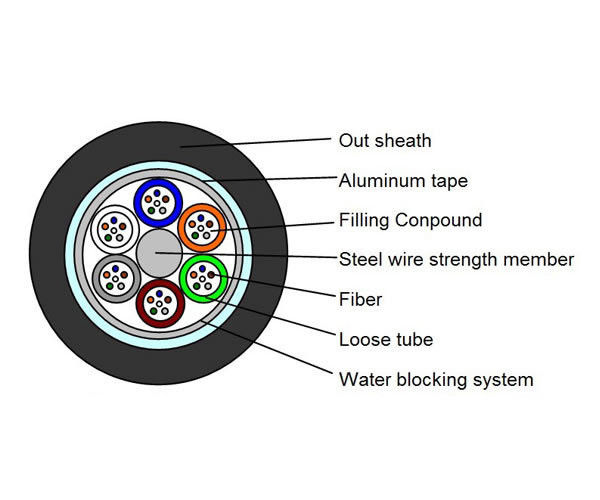

GYTS G657A1 12 Core Single Mode Armoured Fiber Optic Cable 1

Feature:

Good performance under mechanical stress.

Loose tube gel-filled construction for superior fiber protection.

Longitudinal corrugated steel tape is laminated at both side and bonded to PE outer jacket, it ensures not only radial moisture-proof but also reinforces the crush resistance of fiber optical cable.

UV and waterproof design.

COMPANY PROFILE

Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

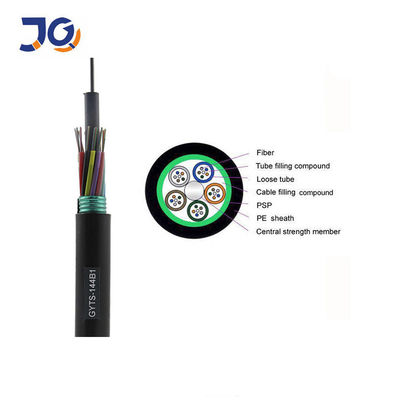

Yes, we supply OEM&ODM service, pls feel free to contact. GYTS G657A1 12 Core Single Mode Armoured Fiber Optic Cable 2
