Home /Products/Fiber Optic Accessories/PVC LSZH SC/APC 1x8 Single Mode Fiber Splitter

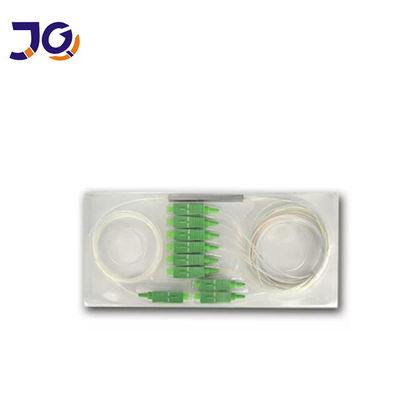

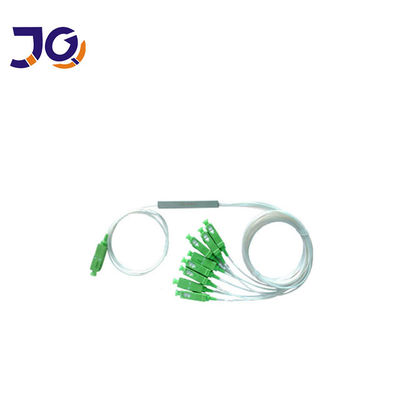

PVC LSZH SC/APC 1x8 Single Mode Fiber Splitter

50 pieces
MOQ
PVC LSZH SC/APC 1x8 Single Mode Fiber Splitter
Features Gallery Product Description Request A Quote
Features
Specifications
Place Of Origin: Guangzhou,China
Brand Name: Jiqian
Model Number: 1:8 PLC Fiber Optic Splitter
Material: PVC/LSZH
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Connector Type: SC
Length: 1/2/3 Or Customized
Highlight:

SC/APC Single Mode Fiber Splitter

,

1x8 Single Mode Fiber Splitter
Basic Infomation
Place of Origin: China
Brand Name: Jiqian
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: Fiber optic PLC splitter
Payment & Shipping Terms
Packaging Details: Carton box
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 50000 per month
Product Description
SC/APC Singlemode 1:8 Fiber Optic PLC Splitter

Specification
1xN PLC Splitter Specification
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1 or as customers' order
Port Configuration
1x2
1x4
1x8
1x16
1x32
1x64
1x128
Insertion Loss (dB)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
23.8/24.2
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.0
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35
0.4
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5



Return Loss (dB)
55/50
Operating Temperature
-40~+85
Directivity (dB)
≥ 55
Storage Temperature
-40~+85



Feature

1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
7. Wide Operating Wavelength: from 1260nm to 1650nm
8. Wide Operating Temperature: from -40℃ to 85℃


Application

PLC splitter was widely used in all kinds of optical network solutions , such as Security Monitoring, Optical Communication, Network Construction, CATV and Pon network.

PVC LSZH SC/APC 1x8 Single Mode Fiber Splitter 0

FAQ



1,Q:What is the MOQ?

A:100 pieces.



2,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


3,Q:What’s delivery time?
A:The general delivery time is 2-3 days after order confirmed. It depends on the order quantity.



4.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.small order is 100% of full price in advance
