GYTS 24core Duct Fiber Optic Cable
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 days | Payment Terms : | L/C, T/T,Alipay |
| Supply Ability : | 4500km |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | GYXTW |
|
Detail Information |
|||
| Cable Brand: | Jiqian | Place Of Origin: | Guangzhou,China |
|---|---|---|---|
| Number Of Conductors:: | 8 Cores | Application: | Duct/aerial |
| Armoured: | Yes | Fiber Type: | Fiberhome/YOFC |
| Temperature Range: | -40+70°C | Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
| Manufacturer: | Yes | ||
| High Light: | YOFC 8cores Aerial Fiber Optic Cable,ROHS FCC Aerial Fiber Optic Cable,ROHS 8 core single mode fiber optic cable |
||
Product Description

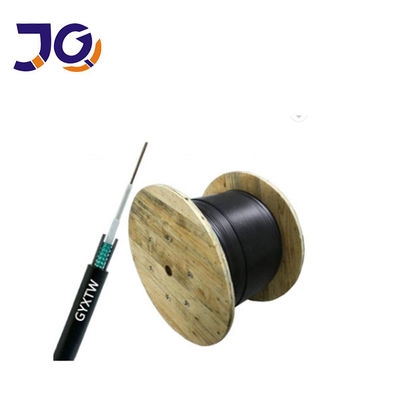

Outdoor Armoured Single Mode 4 6 8 12 Cores Fiber Optic Cable
The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
Cable structure and parameter
| Fiber count |
Tube diameter |
Steel wire diameter |
Sheath thickness (nominal*) |
Overall diameter (nominal**) |
Weight (approx.) |
| mm | mm | mm | mm | kg/km | |
| 6 | 2.5 | 1.0 | 2.3 | 8.4 | 73 |
| 12 | 3.0 | 1.0 | 2.3 | 8.9 | 81 |
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
| Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
≤ 0.36 dB/km ≤0.35 dB/km ≤0.22 dB/km ≤0.25 dB/km |
| Point discontinuity | ≤ 0.05 dB |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.092 ps/(nm².km) |
| Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
| PMD | ≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um |
| Core / Clad concentricity error | ≤0.6 um |
| Cladding diameter | 125.0 ± 1 um |
| Cladding non-circularity | ≤1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
| Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm |
≤ 0.1 dB/km |
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
