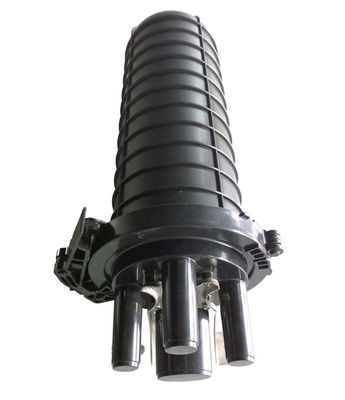

12-96Cores Fiber Optic Splice Closure

Minimum Order Quantity : 10PCS Packaging Details : Cartoon box
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 300PCS per day
Place of Origin: China Brand Name: JQ/OEM
Certification: IS0900/ROHS/CE-EMC/FCC SDOC Model Number: Dome Type Fiber Optic Splice Closure

Detail Information

Brand Name: JQ/OEM Type: Dome Type
Installation Way: Wall Mounted, Pole Mounted Material: PC ABS Project Plastic
Color: Black Capacity: 96Cores
Dimension(L*W*D,MM): 430*182*102 Product Name: Fiber Optic 96 Core ABS Plastic Splice Closure
Application: FTTH FTTB FTTX Network
High Light:

96Cores Fiber Optic Splice Closure


12Cores Fiber Optic Splice Closure


96Cores Fiber Dome Closure

Product Description

Black Color Plastic Dome Type 12 24 36 48 96 Cores Fiber Optic Splice Closure


color Black
Capacity 96 cores
Protection Level lP68
Material PC,PC+ABS,PP
lnletoutlet 3+3
Dimension(MM) 430*182*102
sealing Method For Inlets Screw mechanical
Inlet cable port Φ15,Φ18,Φ21
Outlet cable port Φ15,Φ18,Φ21
Gross Weight 2.5KG


Fiber Optic Splice Closure Features:

1 The body is made of high quality engineering plastic with good strength

2 With good waterproof design, the fiber optical splice closure can be applied into underground and aerial

3 Be equipped with 4 splice trays (each capacity is 24 cores)

4 Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiber storage space

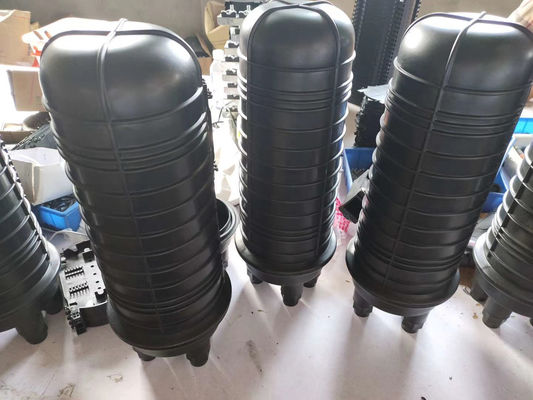

12-96Cores Fiber Optic Splice Closure 0


Fiber Optic Splice Closure Installation procedure:

1. Open the closure

2. Fix the cable and check its length in the closure

3. Strip off the cable and cable jacket

4. Seek out the cable cores and get preparation for cable fixation

5. Fix the strengthen cores and reorganize the extra cores

6. Fix the cable an splice the cable

7. Arrange the splice protective tube and fiber

8. Complete inspection

9. Install the dome.


Fiber Optic Splice Closure Uses and Properties:

It is belonged to open structure airproof tie-in system of machine pressure.

It is used for the protective connection between two or more optical cables

Suitable for single core fiber optic cable and ribbon fiber optic cable



Fiber Optic Splice Closure Shipping:


1.Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)

2.Airport to Airport: by air

3. Seaport to Seaport: by sea (our factory is in Guangzhou city.)




1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
