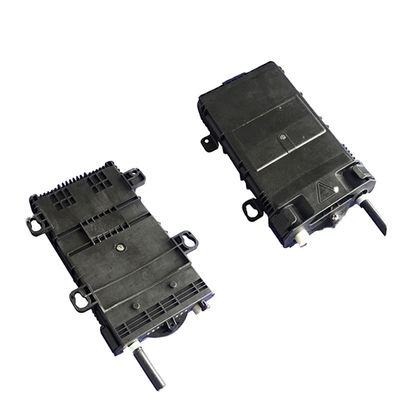

ISO IP67 8 Fibers Ftth Fiber Optic Distribution Box

Name: ISO IP67 8 Fibers Ftth Fiber Optic Distribution Box
Brand: jiqian
SKU: IP67 ftth
Rating: 4.6 (114 reviews)

Minimum Order Quantity :	10pcs	Packaging Details :	package carton
Delivery Time :	2-4day	Payment Terms :	Western Union, MoneyGram, T/T, L/C
Supply Ability :	10000pcs per 2 day

Place of Origin:	CHINA	Brand Name:	jiqian
Certification:	ISO	Model Number:	IP67 ftth

Detail Information
Cable Entry:	Support Un-cutting	Material::	PP+ Gel Sealing
Adapter:	8pcs SC/ 8pcs Duplex LC	Splicing Tray:	8 Fiber Per Tray
Max Capacity:	8 Core
High Light:	IP67 Ftth Fiber Optic Distribution Box , ISO Ftth Fiber Optic Distribution Box , IP67 ftth termination box

Product Description

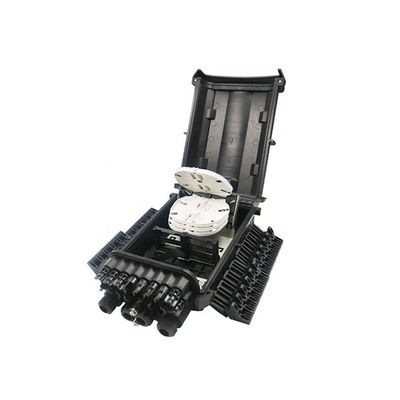

H8 Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Feature

1, PP, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
2, Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
3, Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
4, Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Application

1. Widely used in FTTH access network

2. Telecommunication Networks
3. CATV Networks
4. Data communications networks
5. Local Area Networks(LANs)

Specification

Product No.	H8
Dimension(LxWxH)	25221072 mm
Cable entries	Inlet port: 2 ports Outlet port: 8 ports
Splicing Tray	8 fiber per tray
Max. capacity	8 cores
Max Cable Diameter	16mm
Material	PP+ gel sealing
No. of Adapter	Max. 8pcs SC SX 8pcs LC DX Adapter
IP rating	IP68

Company Profile

Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province tangmei mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable, the companyadhering to the "integrity, fast, flexible, efficient and innovative" spirit of enterprise, "strive for perfection, for the customer appreciation and paved the road to success.

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide sample and you need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
