Best Price Good Quality Outdoor Armored GYTS Fiber Optic Cable 24 48 96 Cores

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500km per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001 Model Number: GYTS

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Number: GYTS Number Of Conductors: ≥ 10
Fiber Count: 4-288 Cores Installation: Conduit/Aerial
Strength Member: Central: Steel Wire Or FIberglass Reinforced Plastic (FRP) Certification: ISO9001
Manufacturer: Yes
Highlight:

Armored Duct Fiber Optic Cable

,

ISO9001 Duct Fiber Optic Cable

,

GYTS Armored Fiber Optic Cable

Product Description

GYTS 48 core Single mode Outdoor Duct Armored Fiber Optic Cable

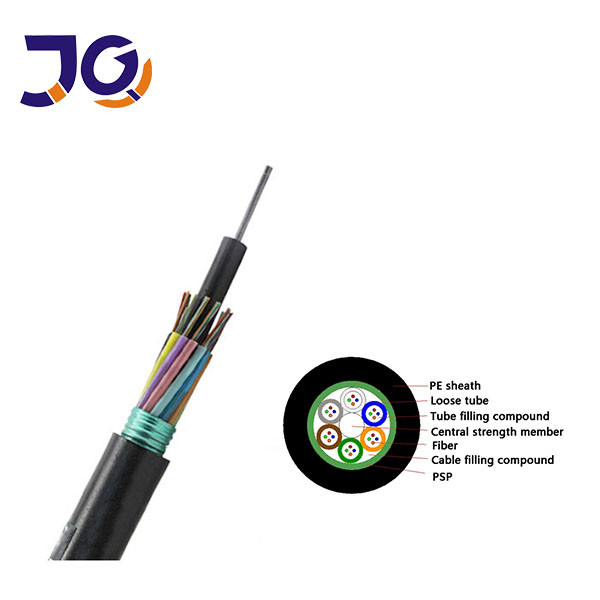

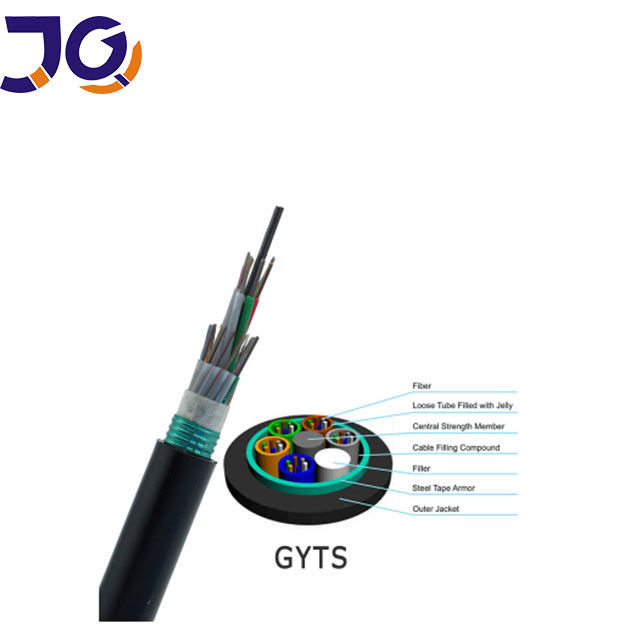

Product Construction
Fiber:2-288 fiber Multi-loose tube gel-filled
Central Strength Member:Fiberglass reinforced Platic (FRP) or steel wire.
Armor:Corrugated steel tape
Outer Jacket:Black UV Polyethylene(PE)


Product Detail
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. Crush resistance and flexibility
6: PE sheath protects cable from ultraviolet radiation
7. The following measures are taken to ensure the cable watertight:
8. Steel wire used as the central strength member
9. Loose tube filling compound
10. 100% cable core filling
11. PSP enhancing moisture-proof

Best Price Good Quality Outdoor Armored GYTS Fiber Optic Cable 24 48 96 Cores 0

Product Description
Item
GYTA GYTS 48 Cores Single Mode Fiber Optic Cable


Feature
1. Choice of fiber type
2. Color code of fiber
3. High water & crush resistance
4. Choice of sheath material
5. Low attenuation and dispersion
6. Good flexibility and bending performance
Application
Suitable for external application in duct and aerial
Structure Characters
1. Metallic strengthen member (Phosphated steel wire)
2. Steel taoe under PE sheath
Temperature
1. Operating temperature: -20℃ to 70℃
2. Storage temperature: -20℃ to 70℃



Technical Data

Fiber
Count

Nominal
Diameter
(mm)

Nominal
Weight
(kg/km)

Max Fiber Per TubeMax No. of (Tubes+fillers)

Allowable Tensile Load
(N)

Allowable Crush Resistance (N/100mm)
Short TermLong TermShort TermLong Term
2~3610.71326615006001000300
38~7212.016512615006001000300
74~9613.820412820006001000300
98~12015.3240121020006001000300
122~14417.0284121225006001000300
146~21617.12851218(2 layers)25006001000300
218~28819.53501224(2 layers)30006001000300




Best Price Good Quality Outdoor Armored GYTS Fiber Optic Cable 24 48 96 Cores 1
Certification
Best Price Good Quality Outdoor Armored GYTS Fiber Optic Cable 24 48 96 Cores 2
Company profile:
Best Price Good Quality Outdoor Armored GYTS Fiber Optic Cable 24 48 96 Cores 3
1.Located in Guangzhou China

2.12 years experiance of producing fiber optic cable

3.CE/ROSH/FCC/ISO9001 Certifications

4.Exporting fiber optic cable to all over the world


FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc


4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?
A:Yes. We supply OEM service.


7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
Best Price Good Quality Outdoor Armored GYTS Fiber Optic Cable 24 48 96 Cores 4
