Home /Products/Duct Fiber Optic Cable/Bule LSZH Jacket 288 Core Duct Fiber Optic Cable

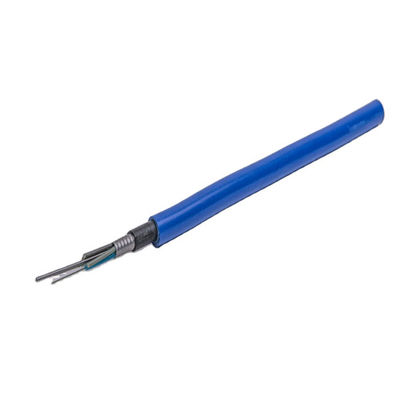

Bule LSZH Jacket 288 Core Duct Fiber Optic Cable

1km
MOQ
Bule LSZH Jacket 288 Core Duct Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Jacket Material: Flame-Retardant LSZH
Fiber Count: 4-288core
Structure: Stranded
Product Name: Outdoor Optic Fiber Cable
Fiber Type: YOFC Or As Request
Application: Aerial,Duct
Color: Blue
Module: MGTSV-24B1
Highlight:

LSZH Duct Fiber Optic Cable

,

ROHS Duct Fiber Optic Cable

,

Aerial Outdoor Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: MGTSV
Payment & Shipping Terms
Packaging Details: 1/2/3/4/5 km in one wooden drum
Delivery Time: 3-5dyas
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Bule LSZH Jacket Mining Flame-Retardant Fiber Optic Cable 24 core MGTSV



Item Name
MGTSV Fiber Optic Cable
Place of Origin
Guangdong,China
Model Number
MGTSV
Brand Name

      JQ
Fiber Type
Single mode ITU-T G652D
Fiber No.
2-288 cores
Strength Member
Central Steel Wire/ FRP
Material of Jacket
Flame-retardant Sheath
Cable Structure
Stranded Loose Tube
Certificate
ISO9001/CE/RoHS/CE
Storing Temperature
-40℃ to +70℃
Application
Duct/Aerial





Features
1.Good flame retardant performance.
2.High strength loose tube that is hydrolysis resistant.
3.Double sheathes and single armor providing excellent crush resistance, water proof, and avoiding rat bite.
4.Loose tube wrapped by non-weaven tape has the water blocking ability.
5.Special tube filling compound ensure a critical protection of fiber.
6.Blue PVC or LSZH jacket: Flame retardant, the blue color is easy to identify.
7.Crush resistance and flexibility.





Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical data

Cable Type

Fiber

Count

Tubes

+Fills

Cable

Diameter

mm

Cable

Weight

Kg/km

Tensile

Strength

Long/Short

Term N

Crush

Resistance

Long

/Short Term

N/100m

Bending

Radius Static

/Dynamic mm

MGTSV-2~6

 2~60 5 12.2 156 1000/2000 500/1500 15D/30D
MGTSV-62~72 62~72 6 13.8 210 1750/3500 500/1500 15D/30D
MGTSV-74~96 74~96 8 15.1 242 1750/3500 500/1500 15D/30D
MGTSV-98~120 98~120 10 17.2 280 1750/3500 500/1500 15D/30D
MGTSV-122~144 122~144 12 19 320 1750/3500 500/1500 15D/30D
MGTSV-146~216 146~216 18 19 320 1750/3500 500/1500 15D/30D





Product Image

Bule LSZH Jacket 288 Core Duct Fiber Optic Cable 0

Bule LSZH Jacket 288 Core Duct Fiber Optic Cable 1



Application

Suitable for Mine Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃





Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

Bule LSZH Jacket 288 Core Duct Fiber Optic Cable 2

Bule LSZH Jacket 288 Core Duct Fiber Optic Cable 3



Bule LSZH Jacket 288 Core Duct Fiber Optic Cable 4
