GYTS 24core Duct Fiber Optic Cable
Contact Person : colleen
Phone Number : 8618122384446
WhatsApp : +8618122384446
|Minimum Order Quantity :||1000m||Packaging Details :||wooden drum|
|Delivery Time :||2-4day||Payment Terms :||Western Union, MoneyGram, T/T, L/C|
|Supply Ability :||100km per 2 day|
|Place of Origin:||CHINA||Brand Name:||jiqian|
|Application:||Aerial/duct||Number Of Conductors:||12 48|
|Structure:||Stranded Loose Tube||Operating Temperature:||-40 ~ +60 C|
G657A2 Duct Fiber Optic Cable,
Multimode Duct Fiber Optic Cable,
G652D Fiber Optic Cable

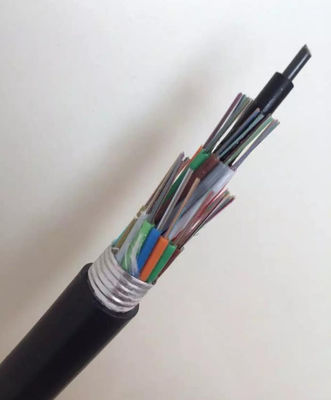

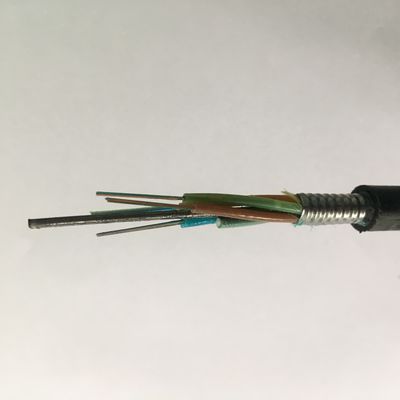

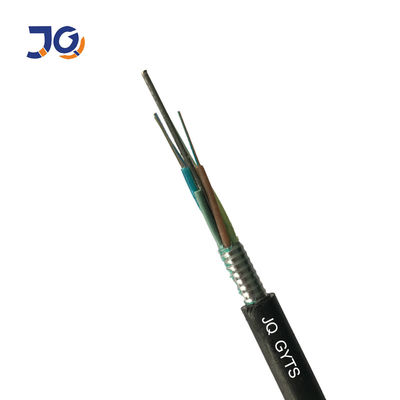

In the GYTS cable, single mode/multimode fibers are positioned in the loose tubes, the tubes are filled with water blocking filling compound. Tubes and fillers are stranded around the strength member into a circular cable core. An PSP is applier around the core. Which is filled with the filling compound to protect it. Then the cable is completed with a PE sheath.
2. Optical and mechanical characteristics of fiber
|Fiber diameter||250 ± 15 mm (Colored)|
|Core/cladding concentricity error||£0.6mm|
|MFD concentricity error||£0.8mm|
|Cladding non circularity||£1.0%|
|Cut off wavelength||£1260nm|
|Attenuation coefficient||1310nm: £0.35dB/km|
|Bending-loss performance of optical fiber||£0.05dB|
|Polarization mode dispersion||£0.1ps/Ökm|
|Zero-dispersion wavelength||1300 – 1324 nm|
|Tensile strength||1500N, conform to IEC 60794-1-E1 while fiber strain is ≤0.33%|
|Crush||1000N/100mm, conform to IEC 60794-1-E3|
|Impact||conform to IEC 60794-1-E4|
|Repeated bending||conform to IEC 60794-1-E6|
|Torsion||conform to IEC 60794-1-E7|
|Flexing||conform to IEC 60794-1-E8|
|Kink||conform to IEC 60794-1-E10|
|Cable bend||conform to IEC 60794-1-E11|
|Temperature cycling test||conform to IEC 60794-1-F1|
|Water penetration||conform to IEC 60794-1-F5B|
|Spark test voltage||Spark test voltage of cable outer jacket will be no less than 8kV AC
1.Good performance under mechanical stress.
2.Loose tube gel-filled construction for superior fiber protection.
3.Longitudinal corrugated steel tape is laminated at both side and bonded to PE outer jacket, it ensures not only radial 4.moisture-proof but also reinforces the crush resistance of fiber optical cable.
5.UV and waterproof design.
