Name: GYXTW Optic Cable Good Quality G652D Armored 12 Core Optical Fiber Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYXTW-12B1
Price: 130.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Cable Brand: Jiqian

Place Of Origin: Guangzhou,China

Number Of Conductors:: 12 Cores

Application: Duct/aerial

Armoured: Yes

Fiber Type: Fiberhome/YOFC

Suitable Temperature: -40+60

Certification: ISO 9001/FCC/ROHS/ CE

Manufacturer: Yes

OEM/ODM: Available

Highlight:

G652D Armoured Fiber Optic Cable

GYXTW Fiber Optic Cable

Aerial Duct Fiber Optic Cable

Basic Infomation

Place of Origin: China

Brand Name: Jiqian

Certification: ISO 9001/FCC/ROHS/ CE

Model Number: GYXTW-12B1

Payment & Shipping Terms

Packaging Details: Wooden drum

Delivery Time: 3-5 days

Payment Terms: L/C, T/T,Alipay

Supply Ability: 4500km

Gallery

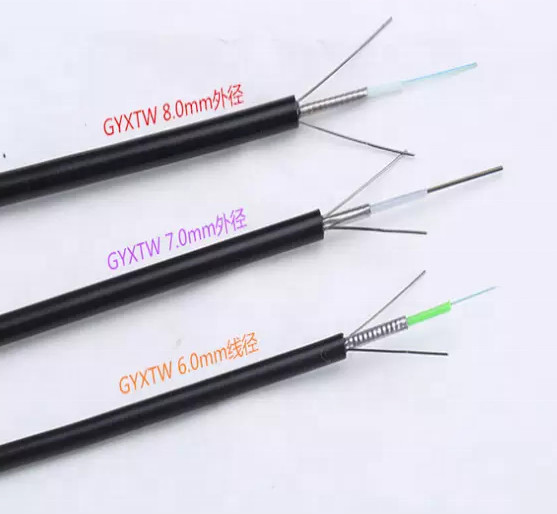

GYXTW Optic Cable Good Quality G652D Armored 12 Core Optical Fiber Cable

Product Description

GYXTW Optic Cable Good Quality G652D Armored 12 Core Optical Fiber Cable

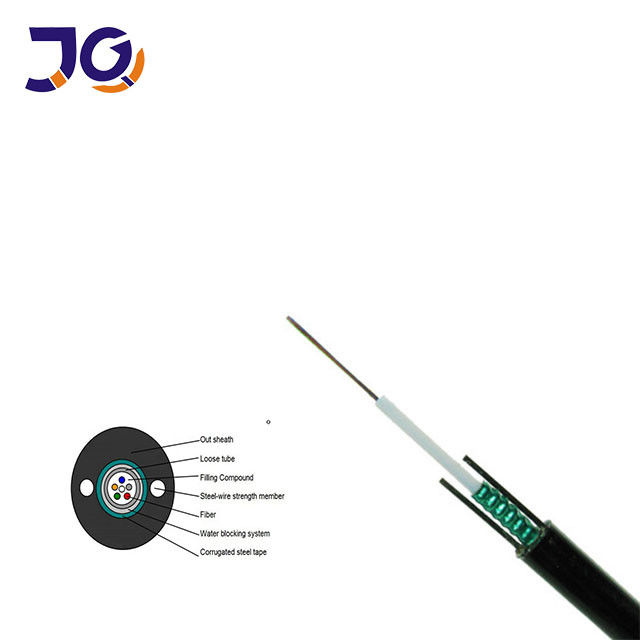

Cable structure and parameter

Fiber count	Tube diameter	Steel wire diameter	Sheath thickness (nominal*)	Cable diameter (mm)	Weight (approx.)
Fiber count	mm	mm	mm	mm	kg/km
12	2.0	0.7	1.8±0.2	7.0	50
12	2.0	1.0	1.8±0.2	8.0	58

GYXTW Optic Cable Good Quality G652D Armored 12 Core Optical Fiber Cable 0

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm	≤ 0.36 dB/km ≤0.35 dB/km ≤0.22 dB/km ≤0.25 dB/km
Point discontinuity	≤ 0.05 dB
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤0.092 ps/(nm².km)
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km)
PMD	≤0.2 ps/km½
Mode field diameter @ 1310 nm	(8.6~9.5)±0.6 um
Core / Clad concentricity error	≤0.6 um
Cladding diameter	125.0 ± 1 um
Cladding non-circularity	≤1.0%
Primary coating diameter	245 ± 10 um
Proof test level	100 kpsi (=0.69 Gpa), 1%
Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm	≤ 0.1 dB/km

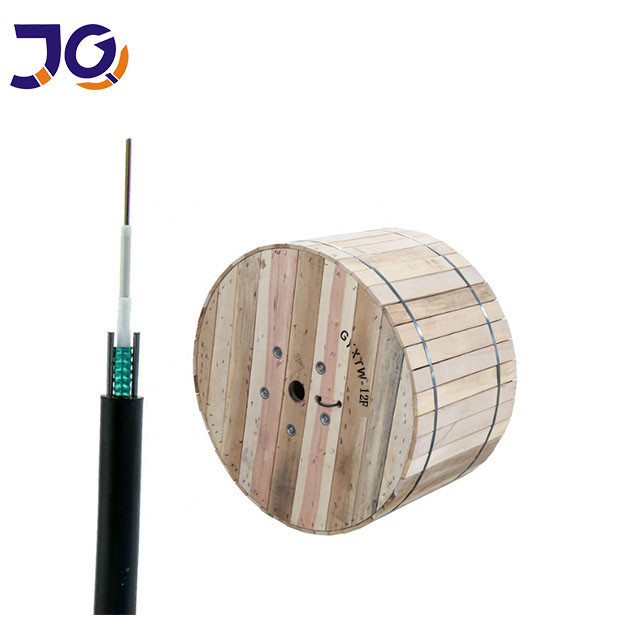

Packing:

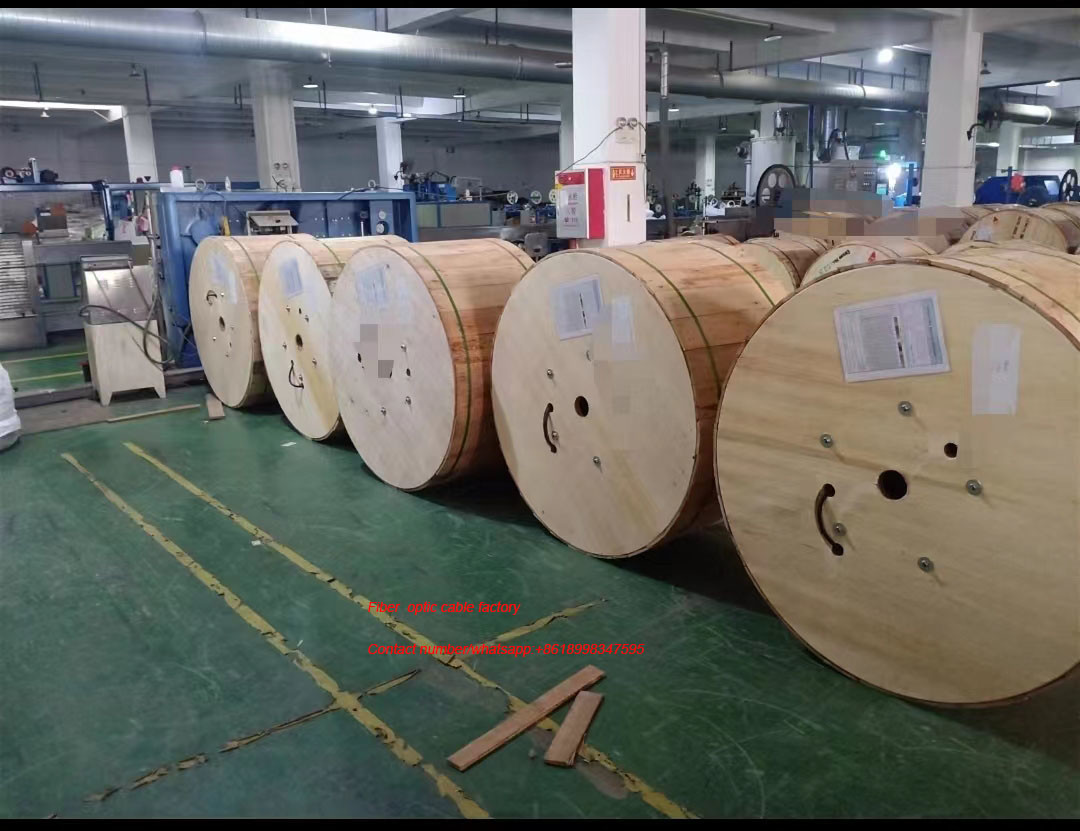

Company profile:

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:Corning,YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
