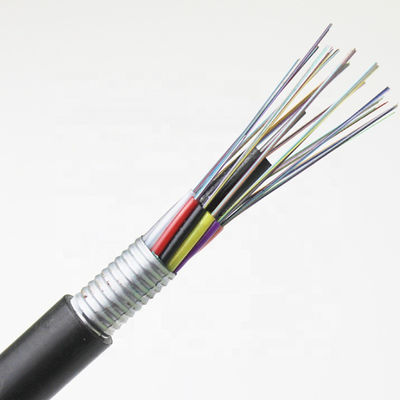

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply

1KM
MOQ
Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: YOFC,Fiber Home,Fujikura,Corning Or As Request
Color: Black
Jacket: PE,MDPE,LSZH,PVC,HDPE
Strength Member: Steel Wire/FRP Glass Yarn
Fiber Count: 2-288 Cores
Installation: Aerial & Duct
Armored: Steel Tape
Application: Network Communication
Highlight:

GYTA Single Mode Fiber Optic Cable

,

12 Core Duct Fiber Optic Cable

,

24 Core Aerial Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Model Number: GYTA / GYTS
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Outdoor GYTA Single Mode G652D Fiber Optic Cable 12 24 Core for Duct and Aerial Installation


GYTA Fiber Optic Cable Features
  • Stranded loose tube structure for stable fiber protection
  • PSP aluminum tape armor for moisture and crush resistance
  • Water blocking filling compound for reliable watertight performance
  • High strength central member improves mechanical reliability
  • UV resistant PE sheath ensures long term outdoor durability
  • Compatible with single mode fibers
Applications
  • Outdoor duct installation in backbone and access networks
  • Aerial installation for metropolitan and long distance lines
  • Telecom broadband and data transmission systems
  • High reliability communication infrastructure projects



Product Description

Fiber Count
1 2 4 6 8 12 24 36 48 72 96 144 288 cores
Brand Name
JQ/OEM
Length
1km 2km 3km 4km 5km
Armored
Steel Tape or Aluminunm Tape



Fiber Count 6 12 24 32 48 72
Cable Diameter (mm) 8.8 8.8 9.0 9.0 9.0 9.2
Tolerance Range (mm) ±0.2, or customized
Cable Weight (kgs/km) 75 75 75 75 75 75
Loose tube Diameter(mm) 1.6 or 2.0



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Mechanical Characteristic

Tensile (N) Long term 600
  Short term 1500
Crush (N/100mm) Long term 300
  Short term 1000
Min. Bending radius (D=Cable diameter) Dynamic 20xD
  Static 10xD
Temperature Range (℃) -20~+70



Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 0

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 1



Application

Suitable for external application in duct and aerial

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 2

Outdoor GYTA Single Mode Fiber Optic Cable G652D 12 24 Core Duct Aerial Universal Factory Direct Supply 3

FAQ


Q1: Is this GYTA cable compatible with single mode fibers?
A: Yes, it supports G652D single mode fibers.

Q2: What laying methods are suitable for this cable?
A: It works for both duct and aerial installation.

Q3: Does it offer moisture and crush protection?
A: Yes, the PSP aluminum armor provides excellent protection.

Q4: What is the MOQ for sample orders?
A: 1pc sample is available for checking.

Q5: Can you print custom brand logos on the cable?
A: Yes, we can customize brand information on the jacket.
