Name: 60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: Fiber Heat Shrink tube
Price: 1,249.01 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Place Of Origin: Guangzhou,China

Manufactuer: Yes

Jacket: PE PVC

Length: 45 55 60m

Oem: Available Color

Tensile Strength: 18 Mpa Min

Color: Red /white

Highlight:

Shrinkable Fiber Optic Splice tube

60mm Fiber Optic Splice tube

60mm Fiber Optic protection sleeve

Basic Infomation

Place of Origin: China

Brand Name: JQ/OEM/haiso

Certification: ISO 9001

Model Number: Fiber Heat Shrink tube

Payment & Shipping Terms

Packaging Details: cartoon box

Delivery Time: 3-5 days,it depends on order quantity

Payment Terms: L/C, T/T, Western Union,Alipay

Supply Ability: 999999pcs per day

Gallery

60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve

Product Description

Product Name

Fiber Optic Splice tube 45mm/60mm protection sleeve

60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve 0

The application of optical fiber fusion tube in optical fiber fusion protection

Features:

1.Protection Sleeves Lenght:35mm; 40mm, 45mm , 50mm , 55mm , 60mm,
2.Steel needle Diameter: 1.0mm,1.2mm,1.5mm (Standard Single Fiber)3.Custom lengths available
3. Color-coded outer tubes available
4. No influence on the fiber's transmission
5.Splice point protection and intensity improvement
6. Easy operation and reduction of the risk of manging fiber
7. External tube clearly showing the status of connection
8. Airproof configuration keeping the splice point's good resistance of humidity and temperature
9. Operating terperature ranging from -45℃ to 100℃

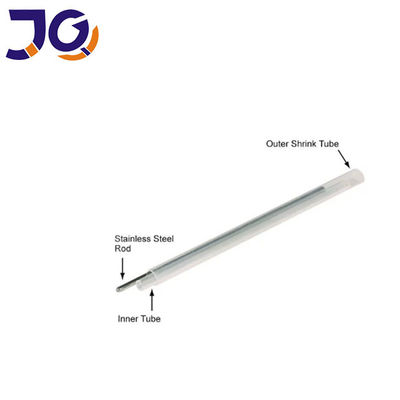

10.Outer Tubing 2 – Strength Member 3 – Inner Tubing

*Single holed(preshrunk)ends eliminates improper fiber threading

*Smooth,deburred stainless steel reinforcing member ends decrease the riskof fiber damage during installation
*Extended liner length prevents contact between the fiber and ther backbone
*Clear sleeve design persign permits easy centering of splice before heating
*Sealing structure makes the splice free from effect of temperature and humidity from environment

Performance Index:

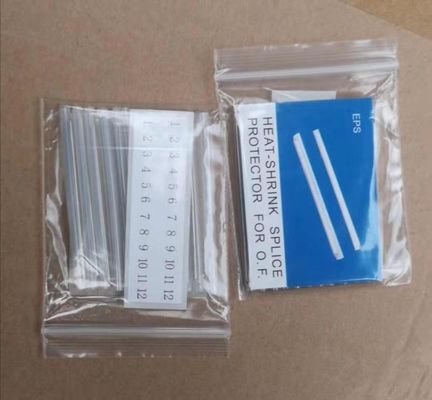

Package:

100pcs in one bag,10000pcs in one cartoon or according customer's requirments.

60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve 4

60mm Steel Wire Shrinkable Fiber Optic Splice Tube Protection Sleeve 5

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 10000pcs

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
