GYTS 24core Duct Fiber Optic Cable
Contact Person : lillian
Phone Number : 8618122384553
WhatsApp : +8618122384553
Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
---|---|---|---|
Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 4500KM Per Month |
Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
---|---|---|---|
Certification: | ISO9001 | Model Number: | GYTS-24B1 |
Detail Information |
|||
Fiber Type: | YOFC,Fiberhome,as Request | Color: | Black |
---|---|---|---|
Jacket: | PE,MDPE | Strength Member: | Steel Wire |
Fiber Count: | 2-288 Cores | Installation: | Aerial & Duct |
Fiber Color: | Blue,Orange,Brown,Aqua,Grey | Armored: | Steel Tape |
Product Name: | Outdoor Optic Fiber Cable | Application: | Network |
High Light: | 144 Cores microduct fiber optic cable,GYTS microduct fiber optic cable,GYTS Armored fiber optic cable |
Product Description

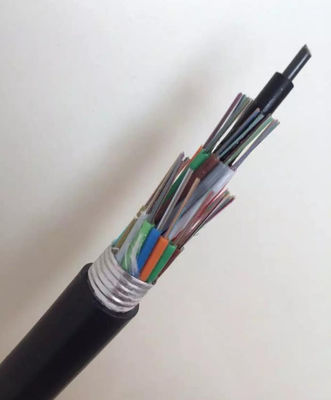

Outdoor Stranded Loose Tube Duct Armored Fiber Optic Cable GYTS

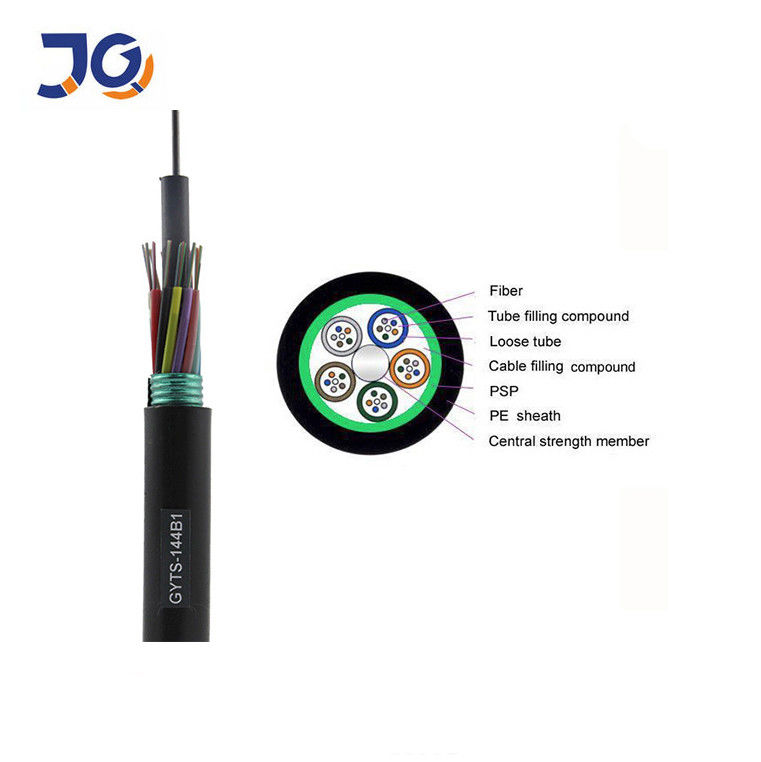

The 250μm fibers are positioned in a loose tube made of a high modulus plastic. The outdoor armored fiber optic cable tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The fiber optic cable is completed with a PE sheath.
Characteristics:
Good mechanical and temperature performance
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
Crush resistance and flexibility
PE sheath protects cable from ultraviolet radiation
Optical Characteristics:
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
(+20℃) |
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
Technical Parameters
Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diameter mm |
Cable Weight kg/km |
Tensile Strength Long/Short Term N |
Crush Resistance Long/Short Term N/100mm |
Bending Radius /Dynamic mm |
GYTS-2~6 |
2~6 |
1 |
4 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
GYTS-8~12 |
8~12 |
2 |
3 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
GYTS-14~18 |
14~18 |
3 |
2 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
GYTS-20~24 |
20~24 |
4 |
1 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
GYTS-26~30 |
26~30 |
5 |
0 |
10.2 |
116 |
600/1500 |
300/1000 |
10D/20D |
GYTS-32~36 |
32~36 |
6 |
0 |
10.6 |
129 |
1000/3000 |
300/1000 |
10D/20D |
GYTS-38~48 |
38~48 |
4 |
1 |
11.2 |
141 |
1000/3000 |
300/1000 |
10D/20D |
GYTS-50~60 |
50~60 |
5 |
0 |
11.2 |
141 |
1000/3000 |
300/1000 |
10D/20D |
GYTS-62~72 |
62~72 |
6 |
0 |
12 |
159 |
1000/3000 |
300/1000 |
10D/20D |
GYTS-74~84 |
74~84 |
7 |
1 |
13.6 |
209 |
1000/3000 |
300/1000 |
10D/20D |
GYTS-86~96 |
86~96 |
8 |
0 |
13.6 |
209 |
1000/3000 |
300/1000 |
10D/20D |
GYTS-98~108 |
98~108 |
9 |
1 |
15.4 |
232 |
1000/3000 |
300/1000 |
10D/20D |
GYTS-110~120 |
110~120 |
10 |
0 |
15.4 |
232 |
1000/3000 |
300/1000 |
10D/20D |
GYTS-122~132 |
122~132 |
11 |
1 |
17.2 |
280 |
1000/3000 |
300/1000 |
10D/20D |
GYTS-134~144 |
134~144 |
12 |
0 |
17.2 |
280 |
1000/3000 |
300/1000 |
10D/20D
|
Features
Has good mechanical properties and temperature characteristics.
Loose tube material itself has good water resistance and high strength.
The tube is filled with a special grease to protect the fiber.
The specially designed compact cable structure effectively prevents the casing from retracting.
PE jacket has excellent UV radiation resistance,ensure the waterproof performance of the cable.
Single wire center reinforcement core.The loose tube is filled with a special waterproof compound.
Full core filling.Plastic coated aluminum tape (APL) moisture barrier

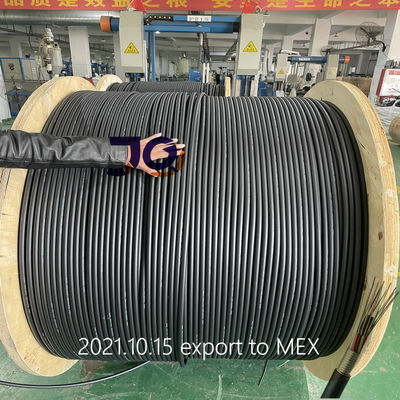

Product Show
Application
Suitable for external application in duct and aerial
Delivery&Payment
FAQ
1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
