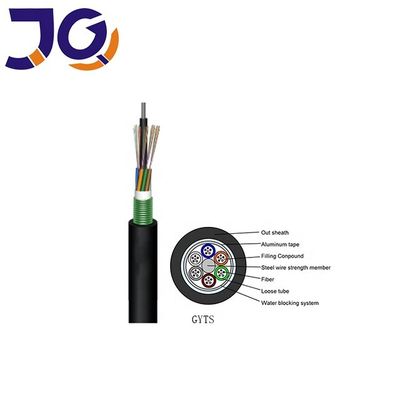

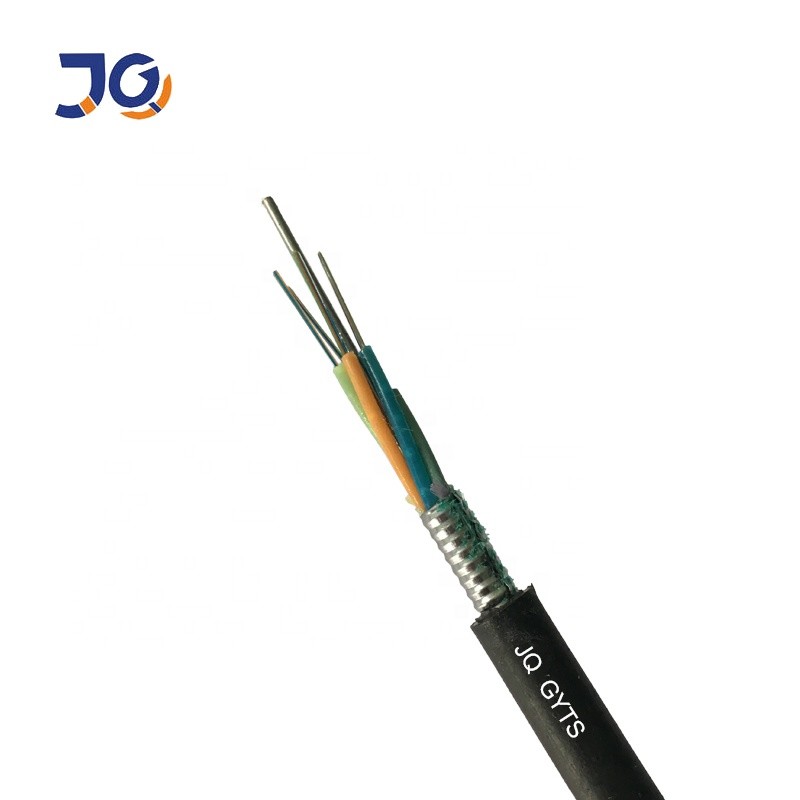

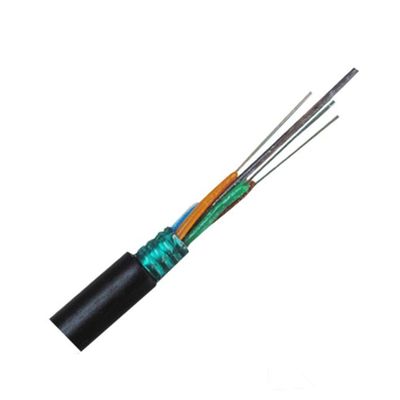

Pipeline Outdoor 1km 2km Price Per Meter Single Mode 2 4 6 8 12 16 24 48 Cores GYTS Fiber Optic Cable
Feature:
☆.Suitable for aerial .pipeline laying method.
☆.Long distance and local area network communication.

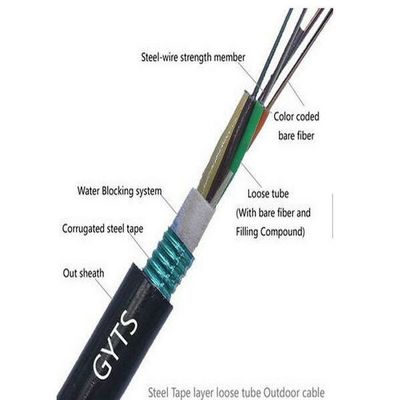

☆.Steel wire strength.filler protect tube fiber.steel tape armord.
☆.Good ultra violet radiation resistant property.
☆.Good moisture-resistance.
Applications:
Long distance and local area network (LAN) communication.
Aerial & conduit / duct application.
Central Strength Member:
steel wire strength member.
OpticaL Charateristics
| Fiber Type |
G.652 |
G.655 |
50/125^m |
62.5/125^m |
|
Attenuation
(+20X)
|
850 nm |
|
|
<3.0 dB/km |
<3.3 dB/km |
| 1300 nm |
|
|
<1.0 dB/km |
<1.0 dB/km |
| 1310 nm |
<0.36 dB/km |
<0.40 dB/km |
|
|
| 1550 nm |
<0.22 dB/km |
<0.23 dB/km |
|
|
| Bandwidth |
850 nm |
|
|
>500 MHz-km |
>200 Mhz-km |
| 1300 nm |
|
|
>500 MHz-km |
>500 Mhz-km |
| Numerical Aperture |
|
|
0.200±0.015 NA |
0.275±0.015 NA |
| Cable Cut-off Wavelength cc |
<1260 nm |
<1450 nm |
|
|
Structure and Technical Specifications
|
Fiber
Count
|
Nominal
Diameter
(mm)
|
Nominal
Weight
(kg/km)
|
Max Fiber
Per Tube |
Max No. of
(Tubes+fillers) |
Allowable Tensile Load
(N)
|
Allowable Crush Resistance
(N/100mm) |
| Short Term |
Long Term |
Short Term |
Long Term |
| 2~30 |
9.7 |
96 |
6 |
5 |
1500 |
600 |
1800 |
800 |
| 32~48 |
10.7 |
111 |
8 |
6 |
1500 |
600 |
1800 |
800 |
| 50~72 |
11.6 |
136 |
12 |
8 |
2000 |
600 |
1800 |
800 |
| 74~96 |
13.0 |
166 |
12 |
10 |
2000 |
600 |
1800 |
800 |
| 98~144 |
15.1 |
228 |
12 |
12 |
2500 |
600 |
1800 |
800
|
There are twelve fiber color code.They are A grade fiber.
All products will have been strictly quality checked in house before packing.
All products will be well packed before shipment.
We are fiber cable manufacturer. We have a factory.
We have rich experience in foreign trade.
Give us a chance to server you, saving your time and money.
Contact me!!! Whatsapp & Wechat: +8618122383351
FQA
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
A:The MOQ of Fiber Optic cable is 1km.
3.Q:Which brand of fiber do you use?
A:YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
