Mini ADSS 6 Core 12 Core Aerial Fiber Optic Cable ASU G652D
Contact Person : lillian
Phone Number : 8618122384553
WhatsApp : +8618122384553
| Minimum Order Quantity : | 1KM | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 working days ,it depends on your order | Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 60000KM/month |
| Place of Origin: | Guangdong, China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | ASU |
|
Detail Information |
|||
| Fiber Count: | 4/6/12 | Lift Time: | More Than 25years |
|---|---|---|---|
| Fiber Type: | G652D | Application: | Overhead |
| Fiber Brand: | YOFC | Jacket: | PE Jacket |
| Color: | Black Color | Length: | 1/2/3/4KM |
| High Light: | 12 Core asu optic cable,Single Mode asu optic cable,G652D Self supported Optic Cable |
||
Product Description

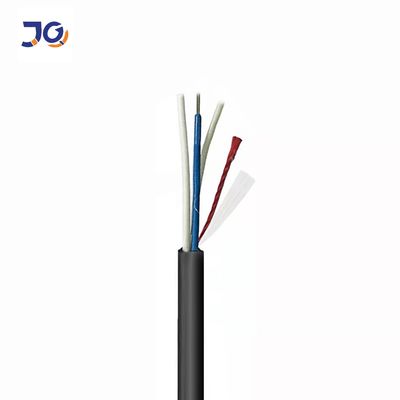

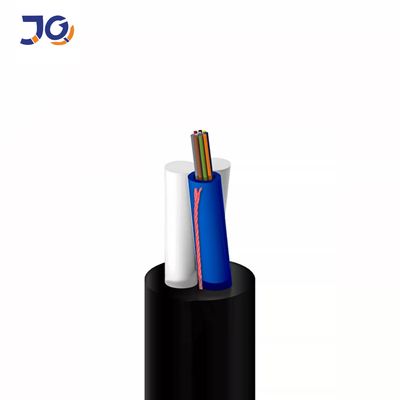

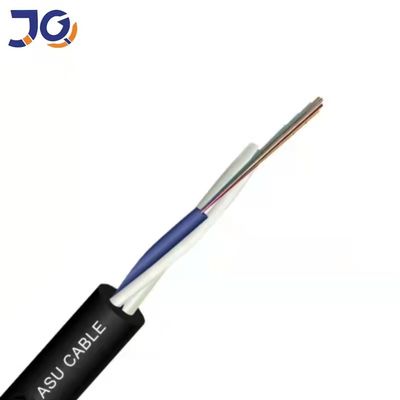

Single Mode G652d 6 12 Core Aerial Self-supported Asu Optic Cable
Fiber Optic Cable (GYFFY) TWO FRP Aerial Fiber Optic Cable (ASU)
The ASU80 optical cables are self-supporting in spans of up to 80 meters, therefore, they are indicated for cable passage in urban centers, as within cities the poles are usually, on average, 40 meters apart, which guarantees a good support for this cable.
ASU 100
ASU100 optical cables are self-supporting in spans of up to 100meters, therefore, they are indicated for cable routing in rural areas, where the poles are usually between 90 and 100 meters apart.
ASU 120
ASU120 optical cables are self-supporting in spans of up to 120 meters, therefore, they are indicated for the passage of cables in environments where the poles are far apart, such as on roads and crossings over rivers and bridges.

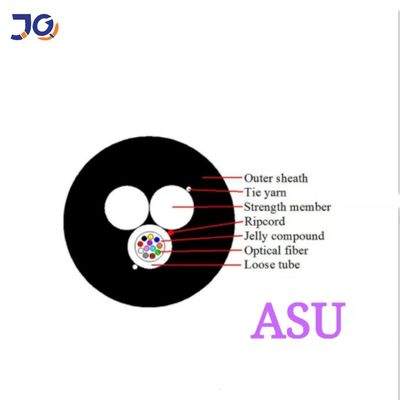

Technical parameters:
| No. of cable | 1-12 | |
| Fiber Model | G.652D | |
| Strength Member | Material | FRP |
| Diameter(±0.05)mm | 1.8 | |
|
Loose Tube |
Material | PBT |
| Diameter(±0.06)mm | 1.8 | |
| Thickness(±0.03)mm | 0.35 | |
| The Max.Core NO./Tube | 12 | |
| Outer Sheath | Material | PE |
| Cable Diameter(±0.2)mm | 6.7 | |
| Cable Weight(±5)kg/km | 38 | |
|
Min. bending radius |
Without Tension | 10.0×Cable-φ |
| Under Maximum Tension | 20.0×Cable-φ | |
|
Temperature range (℃) |
Installation | -20~+60 |
| Transport&Storage | -40~+70 | |
| Operation | -40~+7 | |
There are twelve fiber color code.They are A grade fiber.
We are fiber cable manufacturer.We have a factory.
Package: Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed
We go to exhibitions. We have rich foreign trade experience, you can save purchasing time.
Don't hesitate to contact me. Whatsapp:+86 18122383351
FQA
Q1.Are you the real manufacturer?
We are the real manufacturer with 10 year’s history.
Q2.What’s the MOQ?
The MOQ of Fiber Optic cable is 1km.
Q3.What’s delivery time?
The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.
Q4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
Q5. Can you supply customized products and logo?
Yes. We supply OEM service.
Q6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc. 30% in advance and 70% before shipment.
