Single Jacket ADSS Fiber Optic Cable Lightweight All Dielectric Aerial Cable

10km
MOQ
Single Jacket ADSS Fiber Optic Cable Lightweight All Dielectric Aerial Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Outdoor Aerial Installation
Fiber Counts: 4-144cores
Span: 100m /200 M /300m Or Customized
Fiber Brand: YOFC/FiberHome/Corning
Strength Number: FRP, Kevlar Aramid Yarn High Strength
Operating Temperature: -40℃ To +75℃
Fiber Type: G652D, OM1, G655, OM4, OM5
Water Blcoking System: Filling Compound / Water Blocking Tape
Highlight:

ADSS fiber optic cable lightweight

,

all dielectric aerial cable

,

single jacket ADSS cable
Basic Infomation
Place of Origin: Guangdong China
Brand Name: JQ or OEM/Customize
Certification: ISO9001 CE ROHS Rohs FCC
Model Number: ADSS-4C/12FC/24C/48C/96C/144C
Payment & Shipping Terms
Packaging Details: Wooden drum or Iron drum
Delivery Time: about 10 days
Payment Terms: T/T, Western Union,Alipay, L/C
Supply Ability: 21500KM per month
Product Description

Single Jacket ADSS Fiber Optic Cable Lightweight All Dielectric Aerial Cable



Key Features
• All dielectric structure suitable for high voltage aerial installation
• Aramid yarn reinforcement provides high tensile strength and long span capability
• Loose tube gel filled design ensures strong water blocking and fiber protection
• UV resistant and weatherproof sheath for outdoor durability
• Stable low attenuation signal performance for long distance transmission
• Lightweight structure enables fast and cost efficient installation



Applications
• Power transmission line communication networks
• Telecom backbone and rural broadband deployment
• Smart grid and utility monitoring systems
• Aerial installation on poles and towers
• Long span outdoor fiber network projects



Structure and Technical Specifications



1. ADSS single jacket

fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 9.8 80 90
6 1+5 6 1.9 2.0/2.0 1.7±0.1 9.8 80 90
8 1+5 4 1.9 2.0/2.0 1.7±0.1 9.8 80 90
12 1+5 6 1.9 2.0/2.0 1.7±0.1 9.8 80 90
24 1+5 6 2.0 2.0/2.0 1.7±0.1 9.8 85 95
48 1+5 12 2.0 2.0/2.0 1.7±0.1 10.0 88 98
72 1+6 12 2.2 2.0/2.0 1.7±0.1 10.5 98 108
96 1+8 12 2.2 2.0/3.4 1.7±0.1 12.0 122 135
144 1+12 12 2.2 3.0/7.2 1.7±0.1 15.2 176 189



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.



2. ADSS double jacket



fiber count structure fiber per tube

losse tube diameter

(MM)

 FRP/pad diameter (mm) Thickness of outer jacket(mm) Ref. Outer
Diameter
(mm)		 Ref. Weight
(kg/km)
PE Jacket AT Jacket
4 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
6 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
8 1+5 4 1.9 2.0/2.0 1.7±0.1 12.0 125 135
12 1+5 6 1.9 2.0/2.0 1.7±0.1 12.0 125 135
24 1+5 6 2.0 2.0/2.0 1.7±0.1 12.0 128 138
48 1+5 12 2.0 2.0/2.0 1.7±0.1 12.5 130 140
72 1+6 12 2.2 2.0/2.0 1.7±0.1 13.2 145 155
96 1+8 12 2.2 2.0/3.4 1.7±0.1 14.5 185 195
144 1+12 12 2.2 3.0/7.2 1.7±0.1 16.5 212 228



Tips: all the specifications in the abolve table is approximate data, for more detals specifications,

pls contact our salers.





Fiber type

Attenuation

(+20℃)

Bandwidth

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm
G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km ---




Details picture shows



Single Jacket ADSS Fiber Optic Cable Lightweight All Dielectric Aerial Cable 0

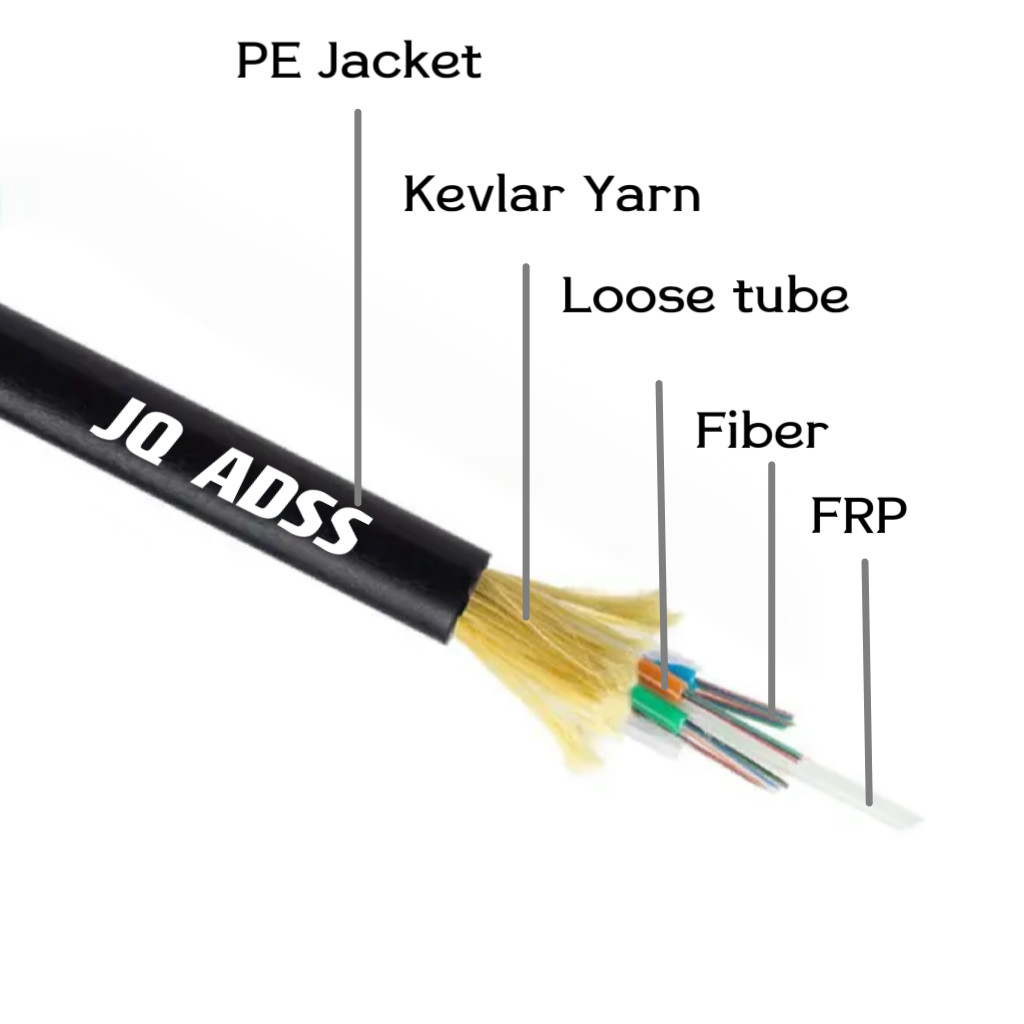

                                                 single jacket ADSS fiber cable



Single Jacket ADSS Fiber Optic Cable Lightweight All Dielectric Aerial Cable 1

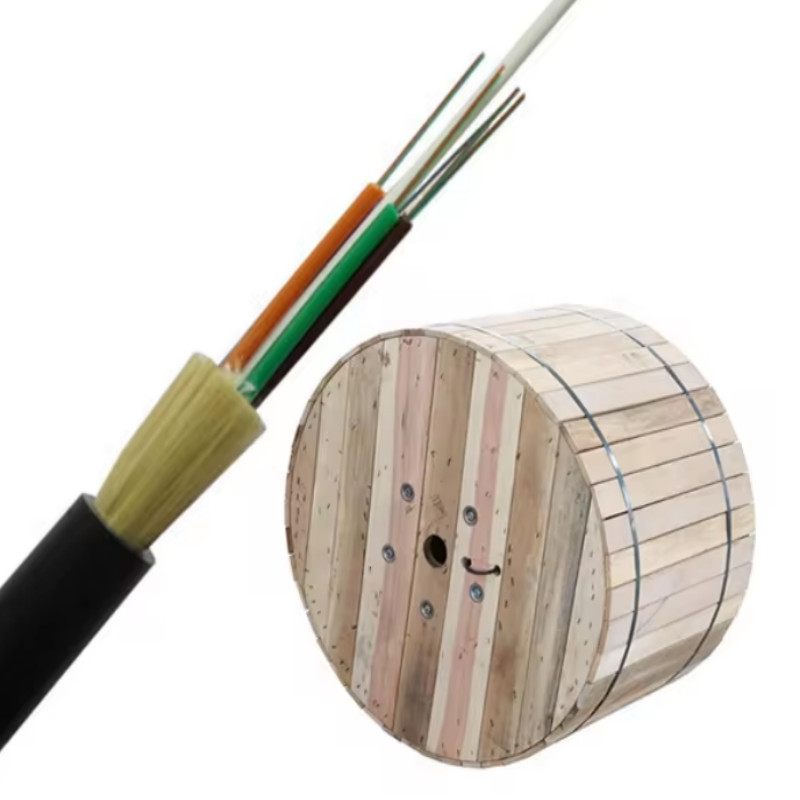

                                               double jacket ADSS fiber optic cable











Single Jacket ADSS Fiber Optic Cable Lightweight All Dielectric Aerial Cable 2

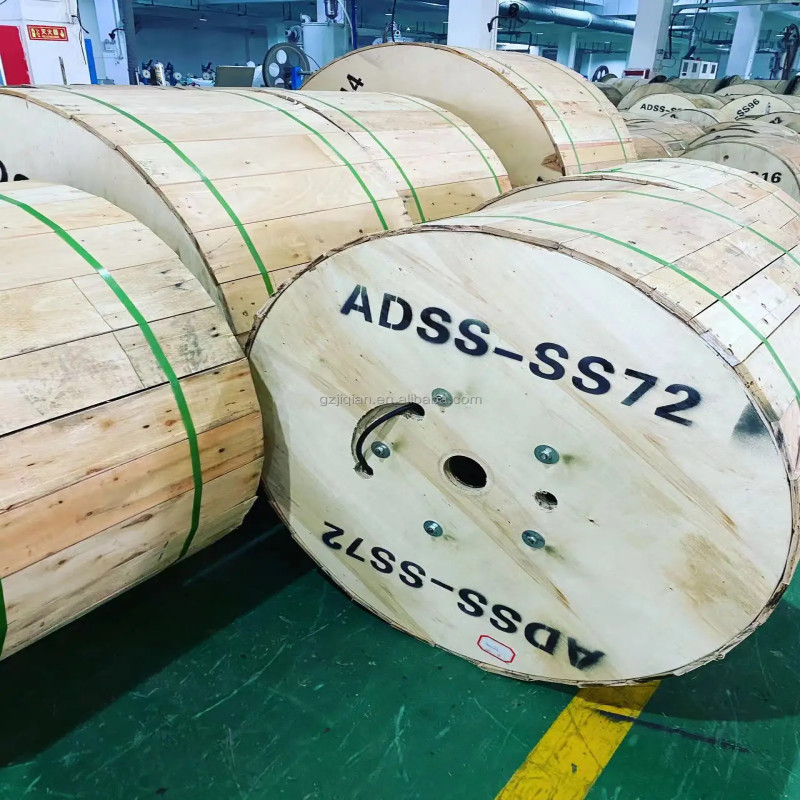

Packing:

Single Jacket ADSS Fiber Optic Cable Lightweight All Dielectric Aerial Cable 3

FAQ

Q1: Manufacturer or trading company?
A: We are a direct fiber optic cable manufacturer with 10+ years of experience in Guangzhou, China.



Q2: How do you ensure quality?
A: All products undergo 100% optical and mechanical testing. Free samples are available.



Q3: Do you support small orders?
A: Yes, trial and small quantity orders are accepted.



Q4: What is your lead time?
A: Usually 3–7 working days depending on quantity and customization.



Q5: Do you provide OEM service?
A: Yes, we support logo printing, packaging, cable specs, and color customization.
