Name: 96 Core Steel Tape Single Mode Armored Duct GYTS Fibre Optic Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTS
Price: 130.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 2-288

Jacket: PE

Color: Black

Warranty: 25 Years

OEM: Yes

Fiber Brand: YOFC

Wave Length: 1310-1550

Fiber Type: G652d

Highlight:

96 Core Single Mode Fibre Cable

Steel Tape Single Mode Fibre Cable

96 Core gyts cable

Basic Infomation

Place of Origin: Guangdong,China

Brand Name: Jiqian

Certification: CE/ISO9001

Model Number: GYTS

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 3-5 days, it depends on your quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 60000KM/month

Gallery

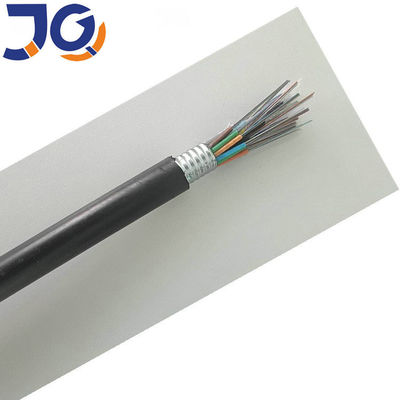

96 Core Steel Tape Single Mode Armored Duct GYTS Fibre Optic Cable

Product Description

24 48 96 Core Steel Tape Single Mode Armored Duct GYTS Fibre Optic Cable

96 Core Steel Tape Single Mode Armored Duct GYTS Fibre Optic Cable 0

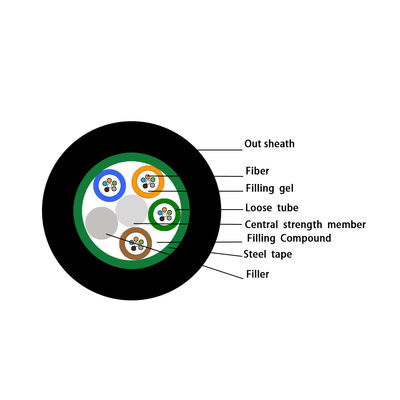

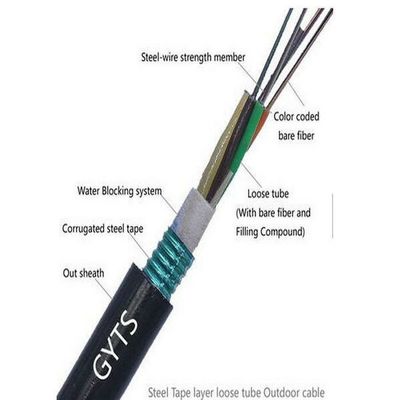

Strcture
1.In the GYTS fiber cable, single-mode/multimode fibers are positioned in the loose tubes, the tubes are filled  with water blocking filling compound.
2.Tubes and fillers are stranded around the strength member into a circular cable core.
3.A PSP is applied around the core. Which is filled with the filling compound to protect it.
4.Then the cable is completed with a PE sheath.
Applications:

Mechanical and Environmental Characteristics

Item	Unit	Specifications
Tension(Long Term)	N	600
Tension(Short Term)	N	1500
Crush(Long Term)	N/10cm	300
Crush(Short Term)	N/10cm	1000
Min. Bend Radius(Dynamic)	mm	20D
Min.Bend Radius(Static)	mm	10D
Installation Temperature	℃	-40～+60
Operating Temperature	℃	-40～+70
Storage Temperature	℃	-40～+70
Repeating bending	Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage.
Torsion	Load:250N; number of cycles:10; twist angle:±90° No obvious addition attenuation, no fiber break and no cable damage.
Impact	Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.

Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
