Name: 48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYTS
Price: 130.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 2-288Cores

Jacket: PE

Color: Black

Warranty: 25 Years

OEM: Yes

Fiber Brand: YOFC

Armoured: Yes

Length: 1km/2km/3km/4km

Highlight:

GYTS microduct cable

Loose Tube Stranded microduct cable

GYTS duct fiber cable

Basic Infomation

Place of Origin: Guangdong,China

Brand Name: Jiqian

Certification: CE/ISO9001

Model Number: GYTS

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 3-5 days, it depends on your quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 60000KM/month

Gallery

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

Product Description

12 24 48 Core Loose Tube Stranded Cable Armoured Optical Fiber Communication Cable GYTS Outdoor Fiber Cable

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket 0

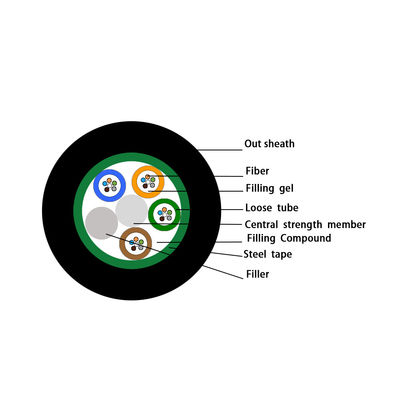

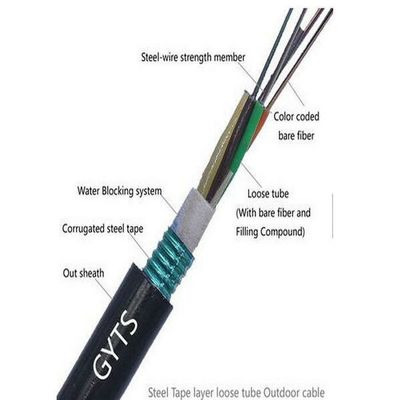

Construction:

1. Fiber

2. Jelly filling the tube

3. PBT loose tube

4. Jelly filling the cable

5. Corrugated armored

6. Steel wire central Strength

7. Water block tape

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket 1

Applications:
Dimensions of Cable Constructions


			Fiber count
			Structure
			Fibers per tube
			Loose tube diameter
(mm)

			CSM diameter/pad diameter
(mm)

			Nominal Thickness of outer jacket
(mm)

			Cable diameter/
Height
(mm)

			Cable weight
(kg/km)



			4
			1+5
			4
			1.8±0.1
			1.4/1.4
			1.4
			9.0±0.3
			80


			6
			1+5
			6
			1.9±0.1
			1.4/1.4
			1.4
			9.0±0.3
			80


			8
			1+5
			8
			1.9±0.1
			1.4/1.4
			1.4
			9.0±0.3
			80


			12
			1+5
			6
			1.9±0.1
			1.4/1.4
			1.4
			9.0±0.3
			80


			24
			1+5
			6
			1.9±0.1
			1.4/1.4
			1.4
			9.0±0.3
			85


			36
			1+6
			12
			2.2±0.1
			1.6/1.6
			1.6
			9.7±0.3
			100


			48
			1+5
			12
			2.2±0.1
			1.6/1.6
			1.6
			9.7±0.3
			105


			60
			1+5
			12
			2.2±0.1
			1.6/1.6
			1.6
			9.7±0.3
			110


			72
			1+6
			12
			2.2±0.1
			2.0/2.0
			1.6
			10.6±0.3
			122


			96
			1+8
			12
			2.2±0.1
			1.6/3.5
			1.6
			12.0±0.3
			160


			144
			1+12
			12
			2.2±0.1
			2.0/6.4
			1.8
			15.6±0.3
			240


			216
			1+6+12
			12
			2.2±0.1
			2.2/2.2
			1.8
			16.0±0.3
			270


			288
			1+9+15
			12
			2.2±0.1
			2.2/4.3
			2.0
			18.2±0.3
			282




Packaging Details
1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

Company Picture

We still have more. Please feel free to contact me. Whatsapp: +86 18122383351

Tag:

Tel :

+8618122383351

Fax :

86-020-82890902

48 Core Loose Tube Stranded GYTS Microduct Cable PE Jacket

GYTS microduct cable

Loose Tube Stranded microduct cable

GYTS duct fiber cable

288cores Duct Fiber Optic Cable

288cores fiber optic cable duct type

72 conductors Duct Fiber Optic Cable

GYTS 24core Duct Fiber Optic Cable

Single Mode 288 Cores Optical Fibre Cable For Aerial Duct

GYTS 18 Core 24 Core 36 Core 48 Core Duct Fiber Optic Cable

Stranded Loose Tube Light Armored Direct Buried Cable

Armoured GYTA GYTS GYTA53 1KM Fiber Optical Cable

12 48 Core GYFTY Non Armored Duct Fiber Optic Cable Outdoor Loose Tube Single Mode G652D

MGTSV 24 Core Armored Mining Fiber Optic Cable Single Mode Flame Retardant Duct Optical Cable

Outdoor GYTA Single Mode G652D Fiber Optic Cable 12 24 Core for Duct and Aerial Installation

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
4	1+5	4	1.8±0.1	1.4/1.4	1.4	9.0±0.3	80
6	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
8	1+5	8	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
12	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	80
24	1+5	6	1.9±0.1	1.4/1.4	1.4	9.0±0.3	85
36	1+6	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	100
48	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	105
60	1+5	12	2.2±0.1	1.6/1.6	1.6	9.7±0.3	110
72	1+6	12	2.2±0.1	2.0/2.0	1.6	10.6±0.3	122
96	1+8	12	2.2±0.1	1.6/3.5	1.6	12.0±0.3	160
144	1+12	12	2.2±0.1	2.0/6.4	1.8	15.6±0.3	240
216	1+6+12	12	2.2±0.1	2.2/2.2	1.8	16.0±0.3	270
288	1+9+15	12	2.2±0.1	2.2/4.3	2.0	18.2±0.3	282
