Name: Duct 48 96 144 Core GCYFTY Communication Air Blown Microduct Fiber Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GCYFTY
Price: 130.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 2-144Core

Lift Time: 25 Years

Strength Member: FRP

Color: Black

OEM: Yes

Jacket: PE

Highlight:

GCYFTY Air Blown Micro Cable

144 Core Air Blown Micro Cable

GCYFTY microduct fiber cable

Basic Infomation

Place of Origin: Guangdong,China

Brand Name: Jiqian

Certification: CE/ISO9001

Model Number: GCYFTY

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 3-5 days, it depends on your quantity

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 60000KM/month

Gallery

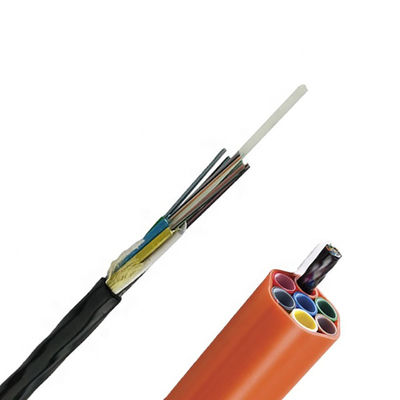

Duct 48 96 144 Core GCYFTY Communication Air Blown Microduct Fiber Cable

Product Description

Duct 48 96 144 Core GCYFTY Communication Air Blown Micro Cable

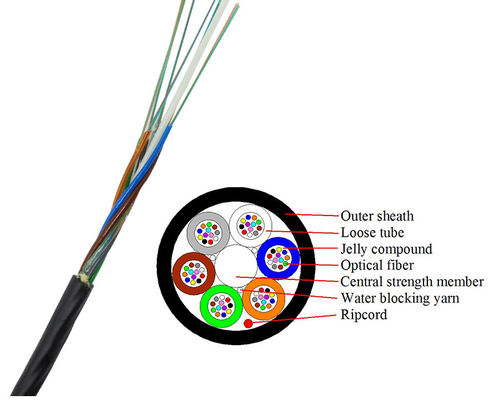

Description

The fibers,250um, are positioned in a loose tube made of a high modules plastic.

The tubes are filled with a water-resistant filling compound.

A fiber reinforce(FRP) located in the center of core as a non-metallic strength member.

The tubes(or fillers) are stranded around the strength member into a compact and circular core.

The cable core is protective from water ingress by water-blocking yarn.

The cable is completed with a HDPE sheath.

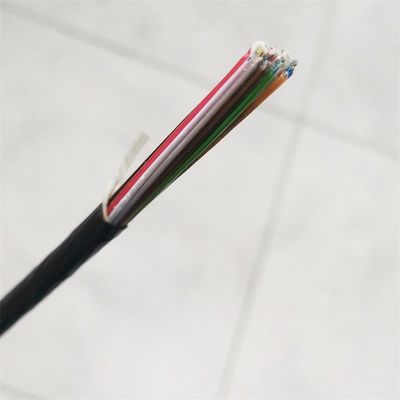

Duct 48 96 144 Core GCYFTY Communication Air Blown Microduct Fiber Cable 1

Application

This product is suitable for FTTX, access network and backbone network.

Duct 48 96 144 Core GCYFTY Communication Air Blown Microduct Fiber Cable 2

Technical requirements of fiber

No	Items	Test Standard	Test Method
1	Core non-circularity	≤ 6%	ITU-T G.652
2	Cladding diameter	125.0±0.7μm
3	Core/cladding concentricity error	≤ 0.6μm
4	Cladding non-circularity	≤ 1.0%
5	Coating diameter	245±10μm
6	Coating/cladding concentricity error	≤ 12μm
7	Attenuation coefficient	1310nm≤0.35dB/km
7	Attenuation coefficient	1550nm≤0.21dB/km
9	Zero dispersion slope	≤ 0.092ps/(nm2·km)
10	Zero dispersion wavelength	1300~1324nm
11	Polarization mode dispersion	≤ 0.20 ps/√km	ITU-T G.652
12	Mode field diameter	1310nm:9.0±0.4μm
13	Cut-off wavelength	1170~1330nm
14	Chromatic dispersion	1288~1339nm≤3.4ps(nm·km)
		1550nm≤18 ps/(nm·km)
		1625nm≤22 ps/(nm·km)

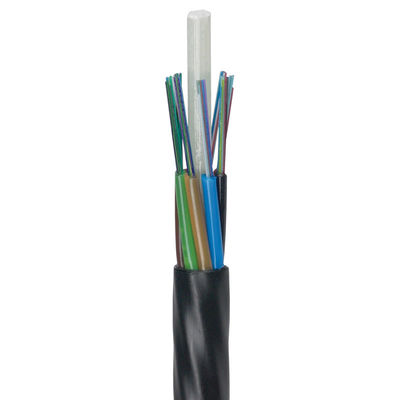

Duct 48 96 144 Core GCYFTY Communication Air Blown Microduct Fiber Cable 3

Packaging Details

1.Wooden reel, 1000m/reel, 2000m/reel, 3000m/reel, customer's requirements are also welcomed;
2.Inner packed in fumigated wooden drum, and outer covered by polyethelene sheet, then sealed by strong wooden battens.

Duct 48 96 144 Core GCYFTY Communication Air Blown Microduct Fiber Cable 4

Delivery

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
