PE ADSS Fiber Optic Cable Installed Without Shutting Offthe Power

Minimum Order Quantity : 1kilometer Packaging Details : Wooden Drum
Delivery Time : 2-4 days Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 80000 kilometers per month
Place of Origin: China Brand Name: Jiqian
Certification: CE/ISO9001 Model Number: ADSS

Detail Information

Place Of Origin: Guangzhou,China Central Strength Menber: FRP
Strength Member: Kevlar Aramid Yarn ADSS Cable Jacket: PE
Certification: CE/ISO9001 Storage/Transport Temperature Range: -20℃ To +60℃
Number Of Conductors: ≥ 10 Application: Indoor/Outdoor Access Building
High Light:

PE ADSS Fiber Optic Cable

,

Crush Resistance ADSS Fiber Optic Cable

Product Description

Characteristics:

Good mechanical and temperature performance
High strength looes tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Loose tube filling compound
100% cable core filling

Model Number ADSS
Type Fiber optic cable
Number of Conductors >=10
Application Aerial fiber cable
Function Delivery signal light
Certification ISO9001,CE
Sheath material PE or AT for ass fiber optic cable
Fiber type G652,G655,657
Length per roll 2km/3km/4km ADSS fiber
Marketing printing
Fiber count 2core to 288 core
Strength member FRP

Fiber parameter

Item Unit Specification
Fiber Type G.652D



Mode field diameter

1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260



Attenuation Coefficient

1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

Outdoor Aerial ADSS Self-Supporting Fiber Optical Cable

1. Can be installed without shutting off the power;

2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV;

3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops;

4. Large span lengths and the largest span is over 1000m;

5. Good performance of tensile strength and temperature;

6.The design life span is 30 years.

Features:
Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction

Products Description

The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. The cable core is filled with filling gel to protect it from water ingress. The kevlar yarn surrounded the cable core as the reinforce strength member, then the cable is completed with a PE sheath.

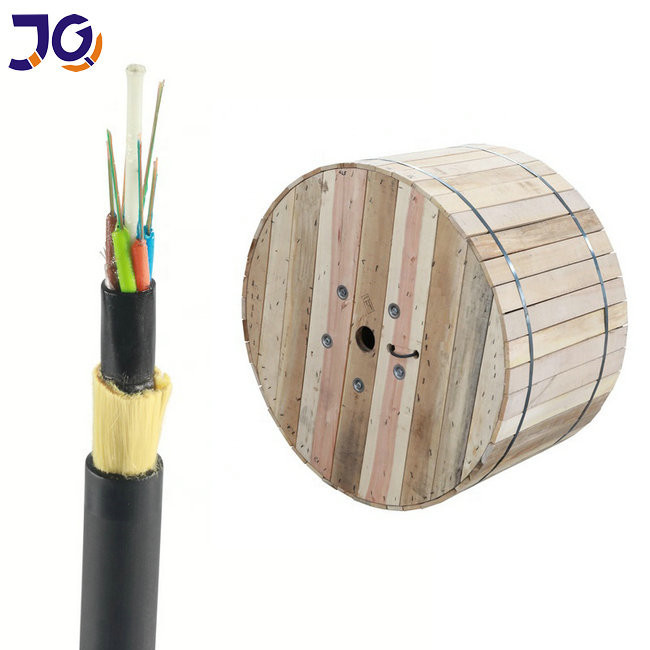

PE ADSS Fiber Optic Cable Installed Without Shutting Offthe Power 0

PE ADSS Fiber Optic Cable Installed Without Shutting Offthe Power 1

FAQ

Q1:Are you a factory or trading company?

Definitely,we are real factory which is professional in manufacturing different types of outdoor&indoor fiber optical cables with10000 square meters plant area.we are warmly welcome you to visit us!

Q2:How can I know you price?

we usually quote within 24 hours after we get your inquiry(Except weekend or holidays)if you very urgent to know the price,pls call me or mail me or in other ways so that we can give you very fast quotation.

In addition,if you want to know very accutately price,pls send me your specific needs,it's better you have the technical

specifications,the more specific information given.the more accurate price we can offer you!

Q3:May I buy samples from you?

Of course,I think this is excellent way for you to know us and know the products we offer directly when we have first

cooperation!

Q4:Can you support OEM product under our brand?

yes,we support OEM service,we can print your logo and mark on the cable,box according to your ideas so pls never mind to tell me your requirements

Q5:Can you accept small order?

Of course,Small order is avaliable,usually,our MOQ is 1000meter .

Q6:How can we guarantee quality?

Always final inspection before shipment;

Q7:What is your lead time?

It depends on the order quantity and the season.usually,we can ship within 5-10 for small quantity.if the order quantity more than 100km for outdoor cable and 300km for indoor cable,it will about 20days need to ship.

Note:This can only for your reference,the lead time will be up to the types of fiber optical cables

please contract our sales person for more detailed information

Q8:What is your payment terms?

For large orders,T/T ,D/P,L/C is acceptable

Q9:May I know the states of my order?

sure! There will be professional sales are responsible for you order and feedback to you at different manufactuing processings in time

Q10:What are your comapny advantages?

1.We have professional technical engineer in our company.Apart from regular fiber optical cables,for example:

ADSS/GYXTW/GYTA/GYTS,We can also desigh the cable accourding to your idea and also we can give you best suggestions accourding to your needs!

2.We have very huge workshop,we have enough ability to manufacture your order in short time and fast delivery.

3,Every staff in our factory are trained before work,we have strictly quality test system ,every production steps,we need to test it so that we can sure the fiber optical cable are test passed.

4.We never use the second raw material.All of the fiber optical cable from our factory is totally new!we must control our quality in good level

5.Our products are very competitive and the price is reasonable because our factory saves costs under having mature system we have skilled staff and advanced production equipment.

6.We attach great importance to service.we believe every customer are also our good friends no matter where they from.we will responce your inquire within 24 hours.in addition.if you have fault caused by non-artificial reason,we will refound or compensation.
