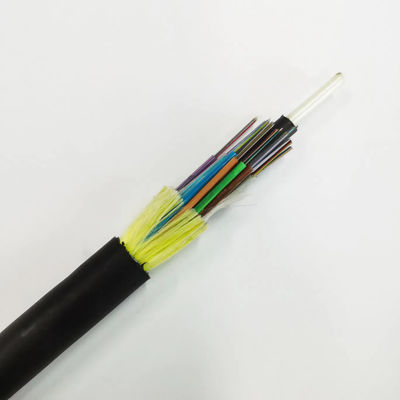

ADSS Fiber Optic Cable Up to 96 Core Single Jacket All Dielectric Self Supporting Outdoor Aerial Optical Cable

1KM
MOQ
Inquiry for price
Price
ADSS Fiber Optic Cable Up to 96 Core Single Jacket All Dielectric Self Supporting Outdoor Aerial Optical Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Cable Diameter: 9.7mm、10mm
Jacket Color: Black,White,as Request
Operating Temperature: -40℃~+70℃
Application: Overhead/Aerial ,Pipe/Duct Laying
Cable Length: 1km/2km/3km/4km/5km
Fiber Count: 2-144 CORES
Storage Temperature: -40℃~+85℃
Span: 50/100/200/300/400m
Highlight:

96 core ADSS fiber optic cable

,

all dielectric self supporting aerial cable

,

outdoor single jacket optical cable
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ROHS/ISO/CE/FCC
Model Number: ADSS-4C/12FC/24C/48C/96C/144C
Payment & Shipping Terms
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union,Alipay
Supply Ability: 4500KM Per Month
Product Description

ADSS Aerial Fiber Optic Cable Single Mode FRP Loose Tube Long Span Outdoor Communication Cable



Product Features

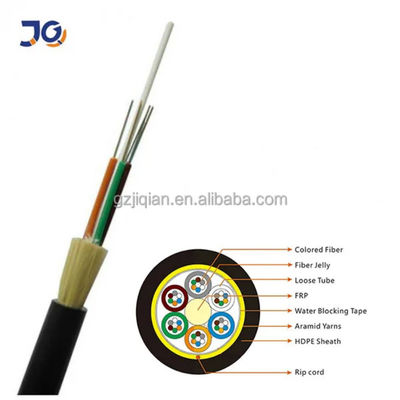

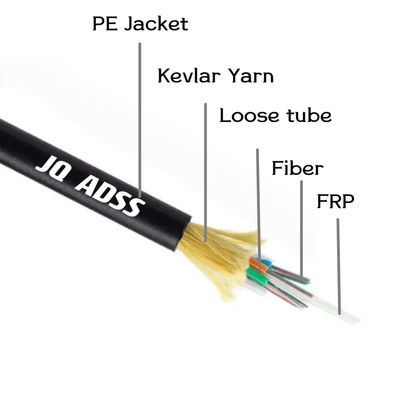

• Loose tube stranded structure with FRP central strength member
• Aramid yarn reinforcement for high tensile strength
• Lightweight and small diameter design reduces wind and ice load
• Water-resistant filling compound for reliable fiber protection
• PE or AT outer sheath for strong weather and UV resistance



Application Scenarios
• Self-supporting aerial telecom networks
• High-voltage power line communication systems
• Long-distance backbone and LAN networks
• Outdoor broadband and infrastructure projects

ADSS Fiber Optic Cable Up to 96 Core Single Jacket All Dielectric Self Supporting Outdoor Aerial Optical Cable 0



No. Items Unit Specification
G.652D
1 Mode Field Diameter 13 10nm μm 9.2±0.4
1550nm um 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error um ≤12.0
8 Cable Cutoff Wavelength μm λcc≤1260
9 Attenuation(max.) 1550nm dB/km ≤0.36
1310nm dB/km <0.22
ADSS Fiber Optic Cable Up to 96 Core Single Jacket All Dielectric Self Supporting Outdoor Aerial Optical Cable 1



FAQ



1. What is ADSS Fiber Optic Cable used for
ADSS cable is designed for aerial installation on power lines and communication networks without the need for metal support.



2. How many fiber cores are available
The cable typically supports 2 to 96 fiber cores depending on network capacity requirements.



3. Is ADSS cable suitable for outdoor environments
Yes it is designed with UV resistant and weatherproof materials for long term outdoor use.



4. What installation method does ADSS cable support
It is self supporting and can be installed directly on poles or towers without a messenger wire.



5. What fiber types are available
Common options include G652D and G657A1 single mode optical fibers.

Tag:

24 Core Adss Aerial Fiber Optic Cable

200m Span Adss Aerial Fiber Optic Cable

G657A1 adss optical cable
