Single Mode ADSS Fiber Cable G652D Double Sheath Long Span Aerial Network

1km
MOQ
Single Mode ADSS Fiber Cable G652D Double Sheath Long Span Aerial Network
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: Single Mode Or Multi Mode
Fiber Count: 24 48 60 Core
Color: Black,Customized
Length: 2km Or Customized Length
Jacket Material: PE, MDPE, LSZH, HDPE
Name: ADSS Optical Fiber Cable
Strength Member: FRP(with PE If Needed) Glass Yarn
Application: Aerial,Overhead/ Direct Burial
Operating Temperature: -40 ~ +60 C
Type: ADSS,S-Z Stranded Type
Highlight:

Single Mode ADSS Fiber Cable G652D

,

ADSS Fiber Optic Cable Double Sheath

,

Long Span Aerial Network Cable
Basic Infomation
Place of Origin: Guangzhou, China
Brand Name: JQ/OEM/Customize
Certification: ISO9001 ROHS CE FCC SDOC
Model Number: ADSS-60B1
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Product Description

Single Mode ADSS Fiber Cable G652D Double Sheath Long Span Aerial Network

Key Features

  • All Dielectric Self Supporting Design – Fully non metallic structure suitable for installation on power lines without grounding

  • High Tensile Strength – Aramid yarn reinforcement supports long span aerial deployment

  • Double Jacket Protection – Inner and outer PE or AT sheath improves durability and anti tracking performance

  • Excellent Environmental Resistance – UV moisture and temperature resistant for harsh outdoor conditions

  • Stable Signal Transmission – G652D single mode fiber ensures low attenuation and long distance communication

  • Reliable Waterproof Structure – Gel filled loose tube design protects fibers from water ingress and mechanical stress

Applications

  • Outdoor aerial fiber optic network installation

  • Power transmission line communication systems

  • Telecom backbone and access network deployment

  • Smart grid and utility monitoring networks

  • Long distance and metropolitan area network projects

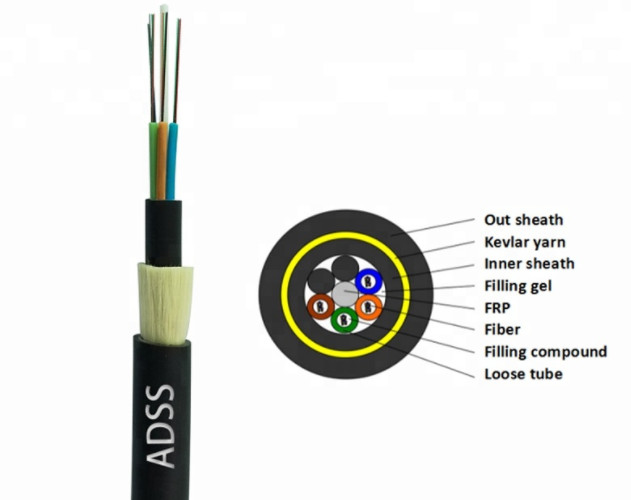

Single Mode ADSS Fiber Cable G652D Double Sheath Long Span Aerial Network 0

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22



Single Mode ADSS Fiber Cable G652D Double Sheath Long Span Aerial Network 1



Technical Data



Span : 100m



Cable type



60core Double Jacket ADSS



structural

parameter



Central strength components : FRP



Diameter : 2.1mm



Loose tube (jelly filled )



Outer diameter :1.8mm



Inner sheath PE



Thickness : 0.9mm



outer sheath PE



Thickness :1.8mm



Technical

parameter



outer diameter of Cable



12.3mm



cable cross-sectional area



95.03 mm2



Fiber model



G.652D



Weight of cable



150kg/km



Rated tensile strength (RTS)



10 kn



Minmum allowed tension(MAT)



4kn



EDS



3.2kn



E-modulus



12.1 kn/mm2



Coefficient of thermal expansion



1.9  10-6/°C



Cruss resistance



Long term :1100 n/100mm



short term:2200 n/100mm



Permission bent radius



Long term (when running) 220 mm



Short term (when laying) 360 mm



Structure and Technical Specifications ADSS-DJ(50-500m Span)



Ref.Outer

Diameter

(mm)



Ref.Weight

kg/km)



Rec.DailyMax.

Working

Tension(kN)



Max

Allowable

Working

Tension

[kN)



Break

Strength

(kN)



Strength

Member

CSA.

(kN/mm2)



Modulusof

Elasticity

CSA

kNmm2)[



Heat

Expansion

Coefficient

(X10-6/K)



SuitableSpan

Meter

ABICP



PE



AT







12.5



125



136



1.5



4



10



4.6



7.6



1.8



160



100



140



100



13.0



132



142



2.25



6



15



7.6



8.3



1.5



230



150



200



150



13.3



137



148



3.0



8



20



10.35



9.45



1.3



300



200



290



200



13.6



145



156



3.6



10



24



13.8



10.8



1.2



370



250



350



250



13.8



147



159



4.5



12



30



14.3



11.8



1.0



420



280



400



280



14.5



164



177



5.4



15



36



18.4



13.6



0.9



480



320



460



320



14.9



171



185



6.75



18



45



22.0



16.4



0.6



570



380



550



380



15.1



179



193



7.95



22



53



26.4



18.0



0.3



670



460



650



460



15.5



190



204



9.0



26



|60



32.2



19.1



0.1



750



530



750



510

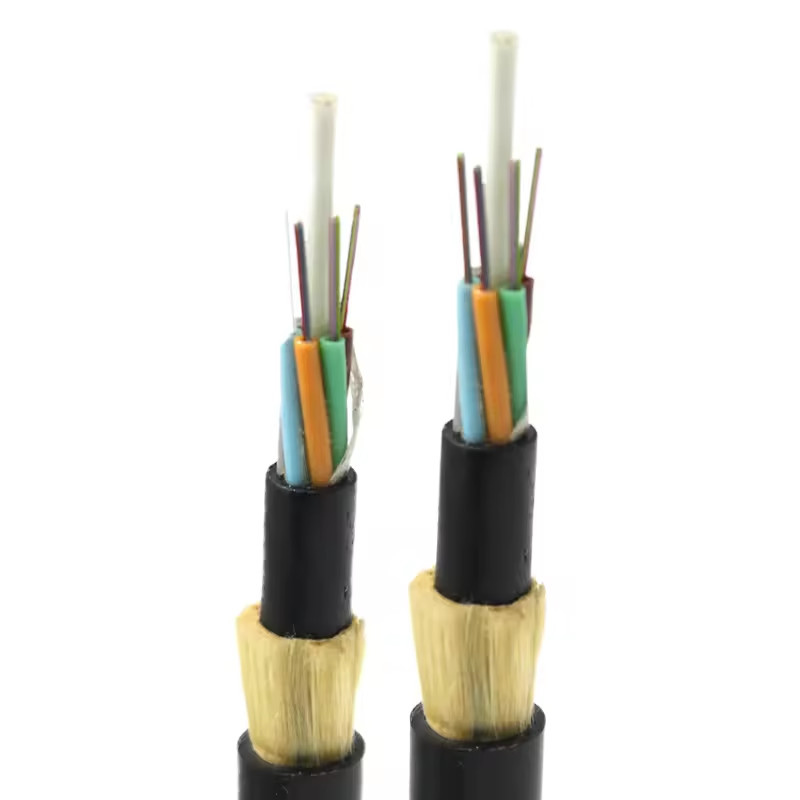

Product Show

Single Mode ADSS Fiber Cable G652D Double Sheath Long Span Aerial Network 2

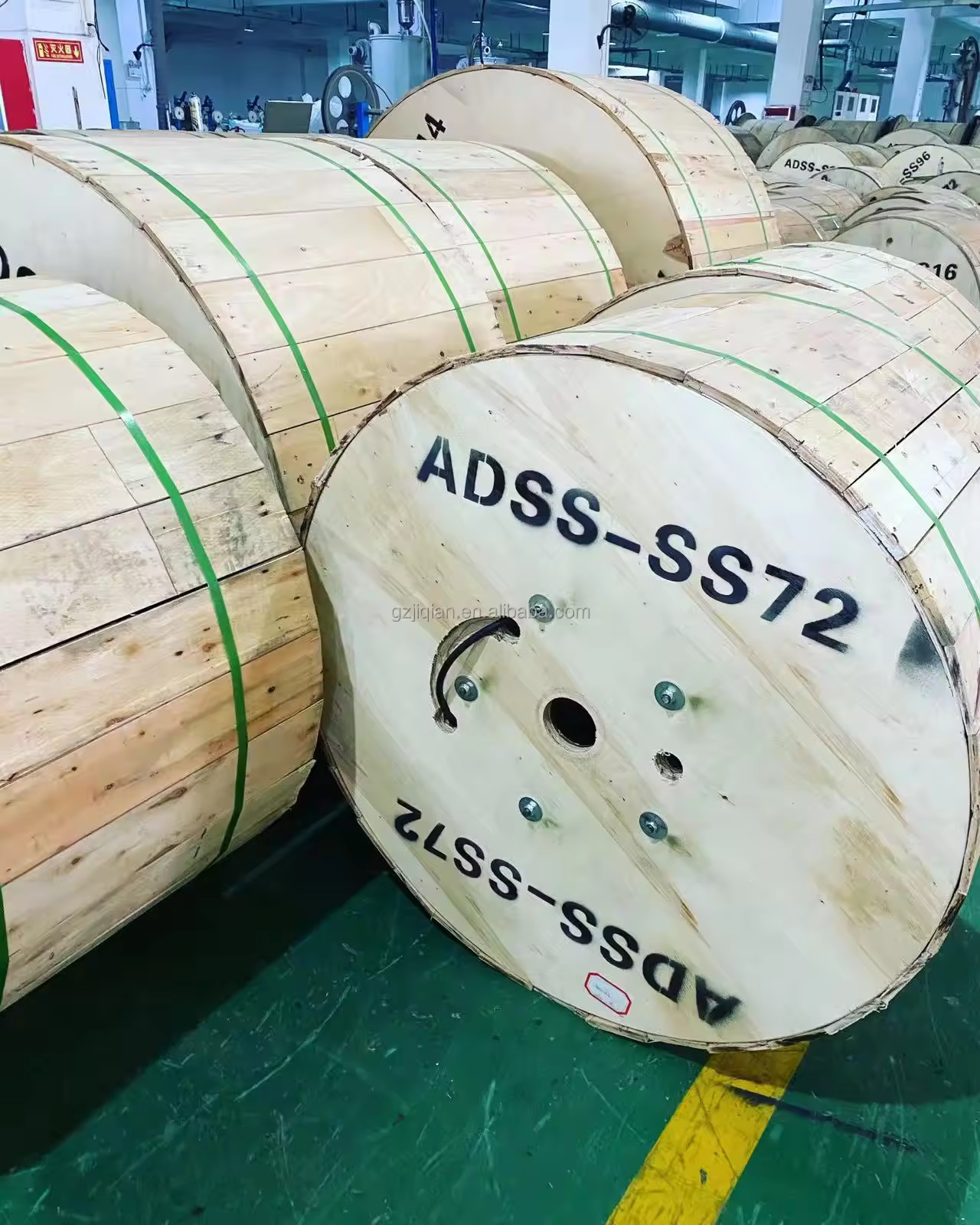

Package Detail



Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

Single Mode ADSS Fiber Cable G652D Double Sheath Long Span Aerial Network 3



FAQ



Q1: Are you a manufacturer or trading company?
A: We are a direct manufacturer with 10+ years of experience in fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, China.



Q2: How do you guarantee quality?
A: All products are fully tested before shipment. Free samples are available for quality checking after price confirmation.



Q3: Do you accept small orders?
A: Yes. We support small and trial orders to help customers start new projects.



Q4: What is your delivery time?
A: Normally 3–7 working days depending on order quantity. We arrange shipment as soon as payment is confirmed.



Q5: Do you provide OEM service?
A: Yes. We support logo printing, packaging customization, and product specification customization.
